Power, Ground, Serial Data, and Audio Input

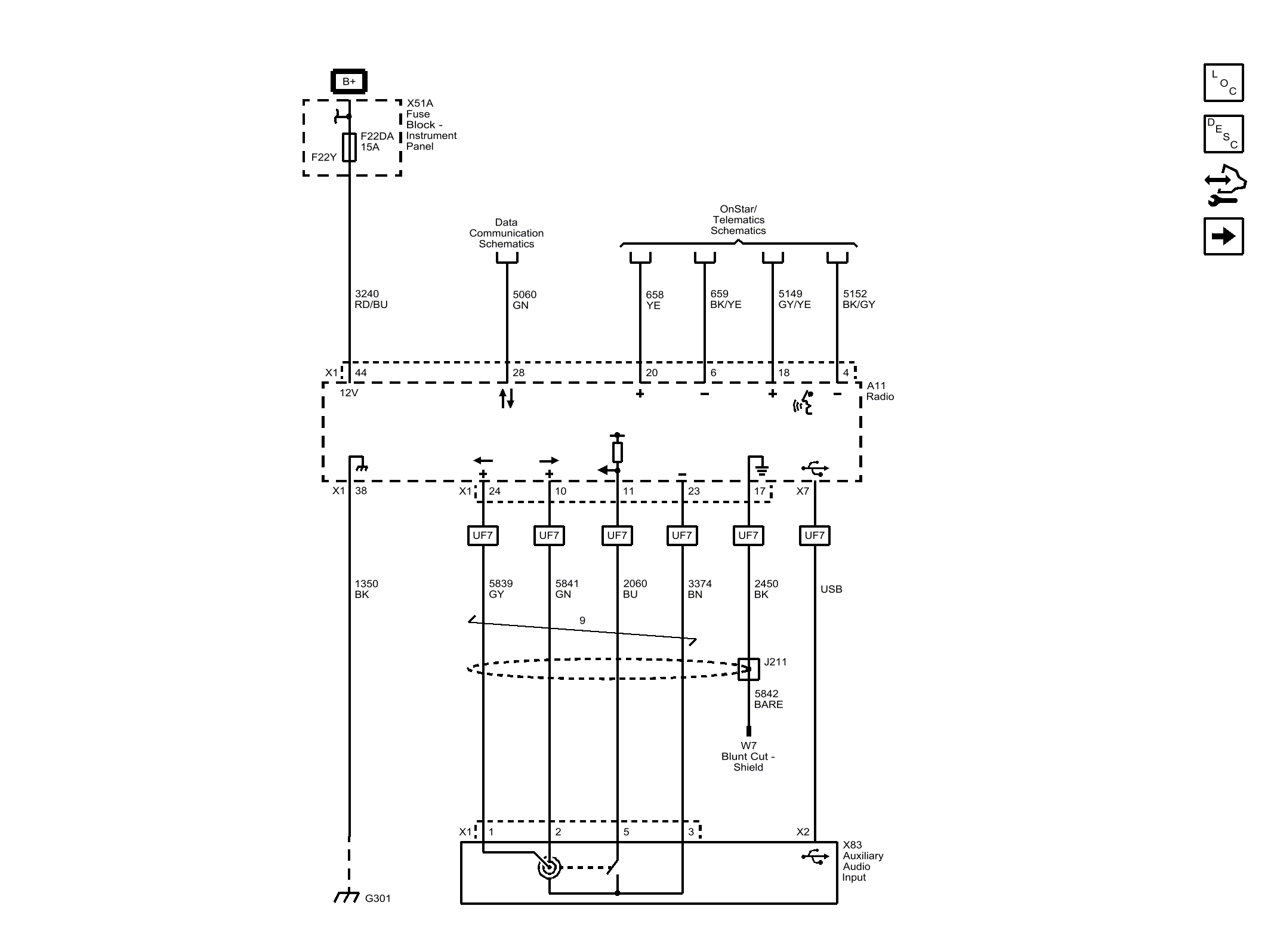

Fig 1: Power, Ground, Serial Data, and Audio Input

GM3982621

Courtesy of GENERAL MOTORS COMPANY
