Preliminary Procedure
- Open the hood.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
- Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement
.
- Remove the front bumper fascia extension. Refer to Front Bumper Fascia Extension Replacement
.
- Cap the fittings and plug the holes when removing the transmission fluid auxiliary cooler pipes.
- Place a drain pan under the transmission fluid auxiliary cooler pipes.
|

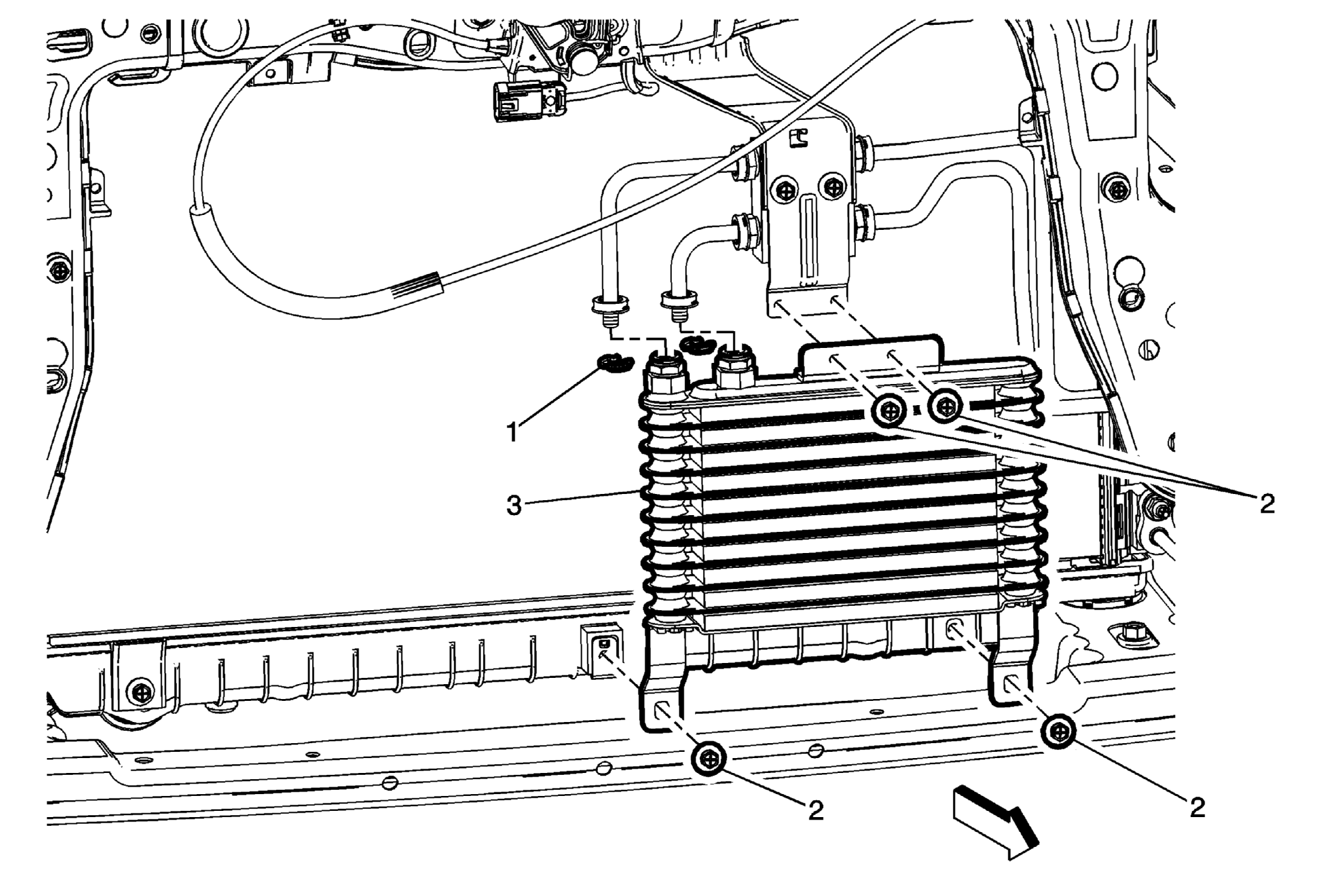

| 1 |
Transmission Fluid Cooler Retainer (Qty: 2)
Procedure
Disconnect the quick connect fittings. |
| 2 |
Transmission Fluid Cooler Bolt (Qty: 4)
Tighten
5 N.m (44 lb in) |
| 3 |
Transmission Fluid Cooler Procedure
- Inspect the transmission oil level. Refer to Transmission Fluid Level and Condition Check
.
- Inspect for transmission oil leaks.
|
