Steering Knuckle Replacement

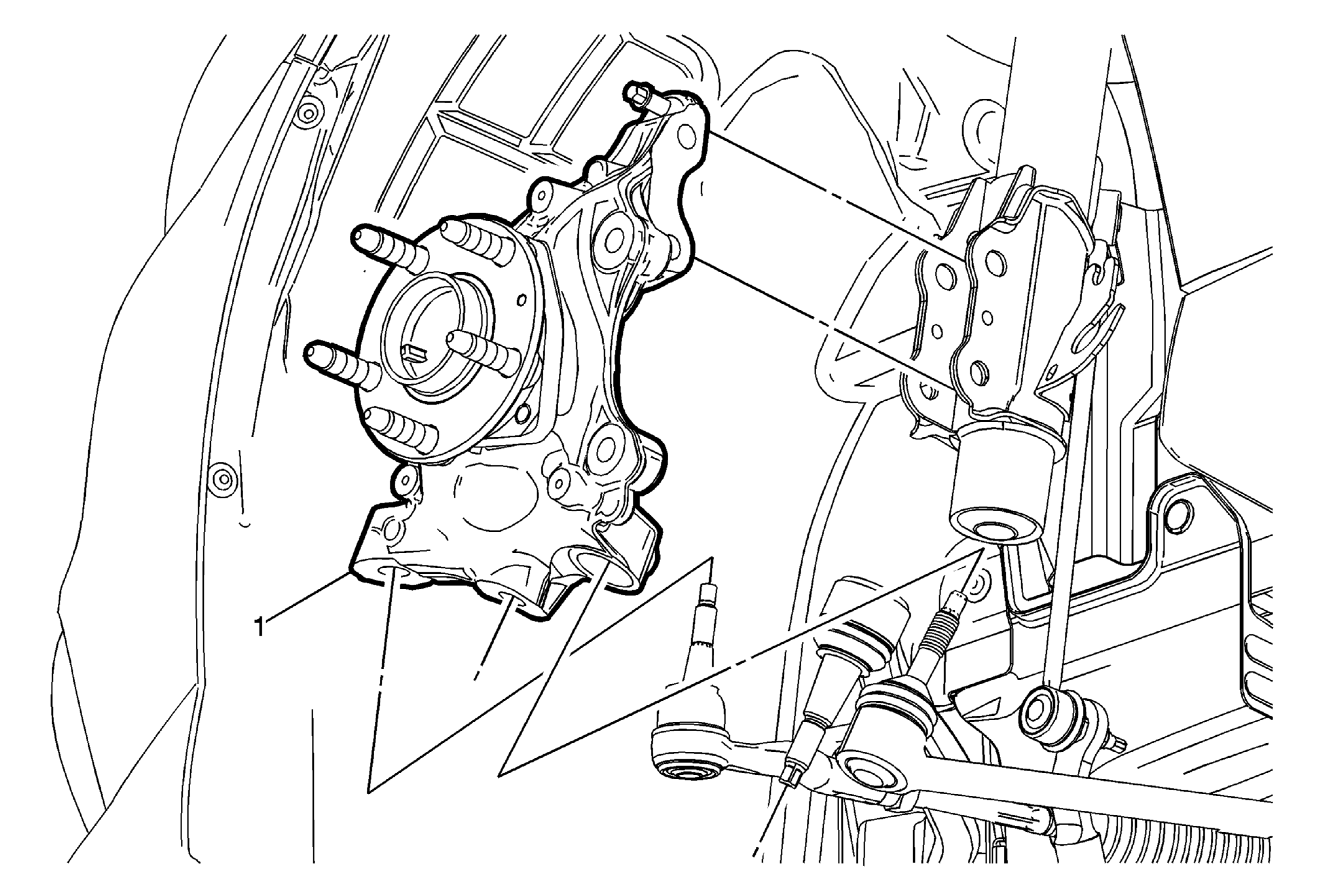

Fig 1: Steering Knuckle
GM3512030Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Separate Front Wheel Speed Sensor at Steering Knuckle - Front Wheel Speed Sensor Replacement
  2. Front Brake Shield Replacement
  3. Separate Steering Linkage Outer Tie Rod at Steering Knuckle - Steering Linkage Outer Tie Rod Replacement
  4. Separate Front Lower Control Front Link at Steering Knuckle - Front Lower Control Front Link Replacement
  5. Separate Front Lower Control Rear Link at Steering Knuckle - Front Lower Control Rear Link Replacement
  6. Separate Strut Assembly at Steering Knuckle - Strut Assembly Removal and Installation (Without F55 Magnetic Ride Suspension) Strut Assembly Removal and Installation (With F55 Magnetic Ride Suspension)
1 Steering Knuckle
Procedure
Transfer components as necessary.
