Steering Wheel Replacement

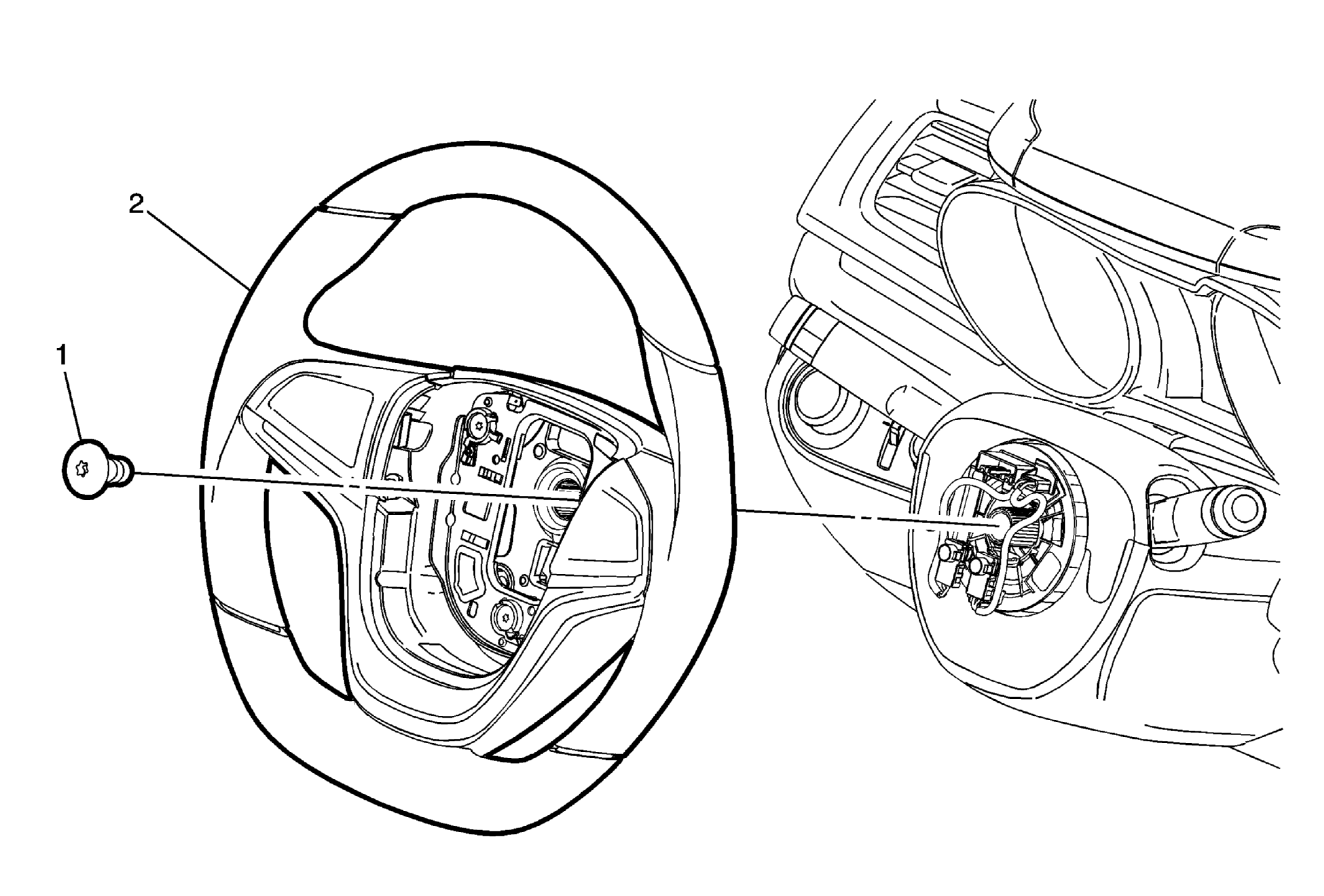

Fig 1: Steering Wheel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Wheel Airbag Replacement
1	Steering Wheel Bolt CAUTION: Refer to Fastener Caution . Tighten 30 N.m (22 lb ft) NOTE: Bolts with micro-encapsulated thread sealant MUST be discarded after removal.
2	Steering Wheel Procedure Disconnect the electrical connectors. Install the steering wheel bolt until 2 to 3 threads are engaged. Wiggle the steering wheel until the wheel disengages completely. Steering Wheel Bolt»Remove and DISCARD Steering Wheel»Remove Transfer components as necessary.

Callout

Component Name

Steering Wheel Bolt

CAUTION:

Tighten
30 N.m (22 lb ft)

NOTE:

Bolts with micro-encapsulated thread sealant MUST be discarded after removal.

Steering Wheel

Procedure
