Steering Column Lower Trim Cover Replacement

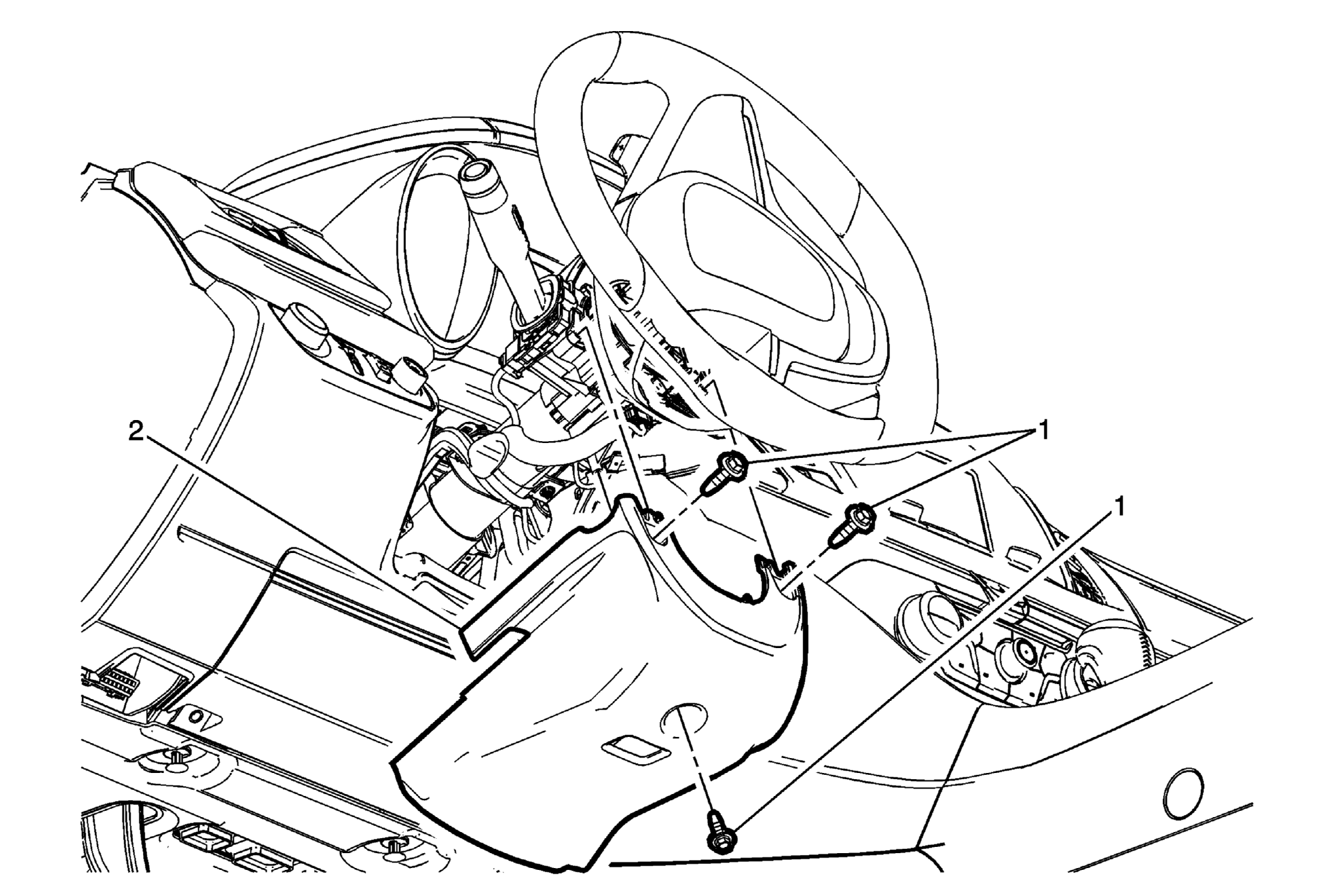

Fig 1: Steering Column Lower Trim Cover

GM3541248

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Steering Column Upper Trim Cover Replacement

1

Steering Column Lower Trim Cover Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Steering Column Lower Trim Cover

Procedure

Extended the steering column to its furthest point to clear the instrument panel.
Turn the steering wheel left and right to access the fasteners securing the lower trim cover to the turn signal switch bracket.
