Air Cleaner Outlet Resonator Replacement

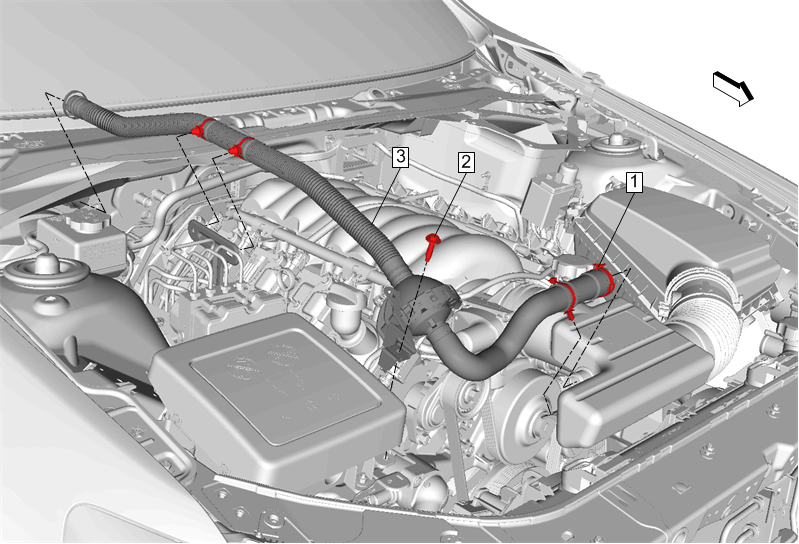

Fig 1: Air Cleaner Outlet Resonator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Air Cleaner Outlet Resonator Clamp Procedure  Hose Clamp Replacement Guidelines - Spring Type
2	Air Cleaner Outlet Resonator Bolt CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
3	Air Cleaner Outlet Resonator Procedure  Disconnect the quick connect fitting an remove from retainers. Plastic Collar Quick Connect Fitting Service
