Air Cleaner Outlet Duct Replacement

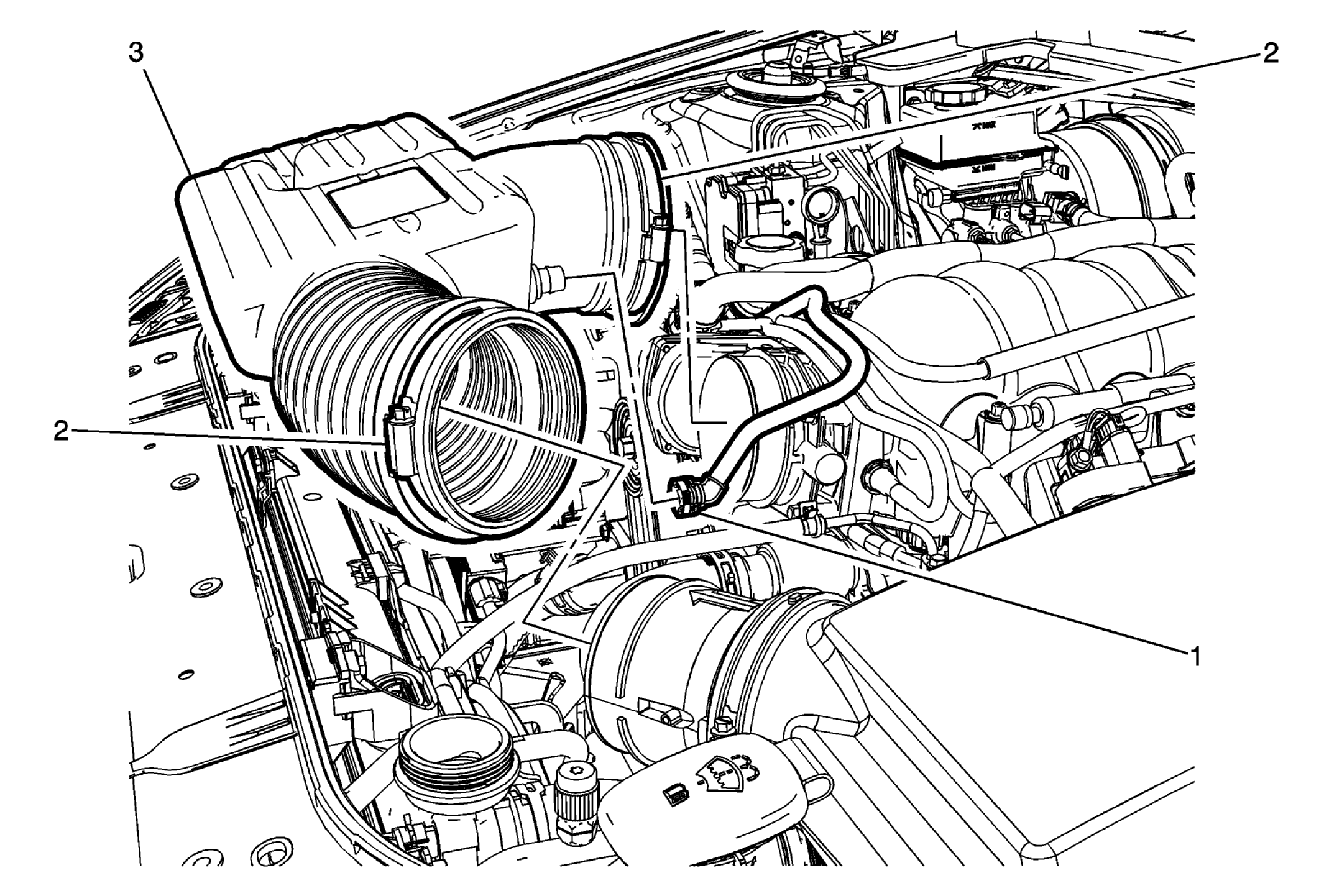

Fig 1: Air Cleaner Outlet Duct
GM3238666Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Air Cleaner Outlet Resonator Replacement
1 PCV Tube Quick Connect Fitting
2 Air Cleaner Outlet Duct Clamps (Qty: 2)
CAUTION:

Refer to Fastener Caution .
3 Air Cleaner Outlet Duct
