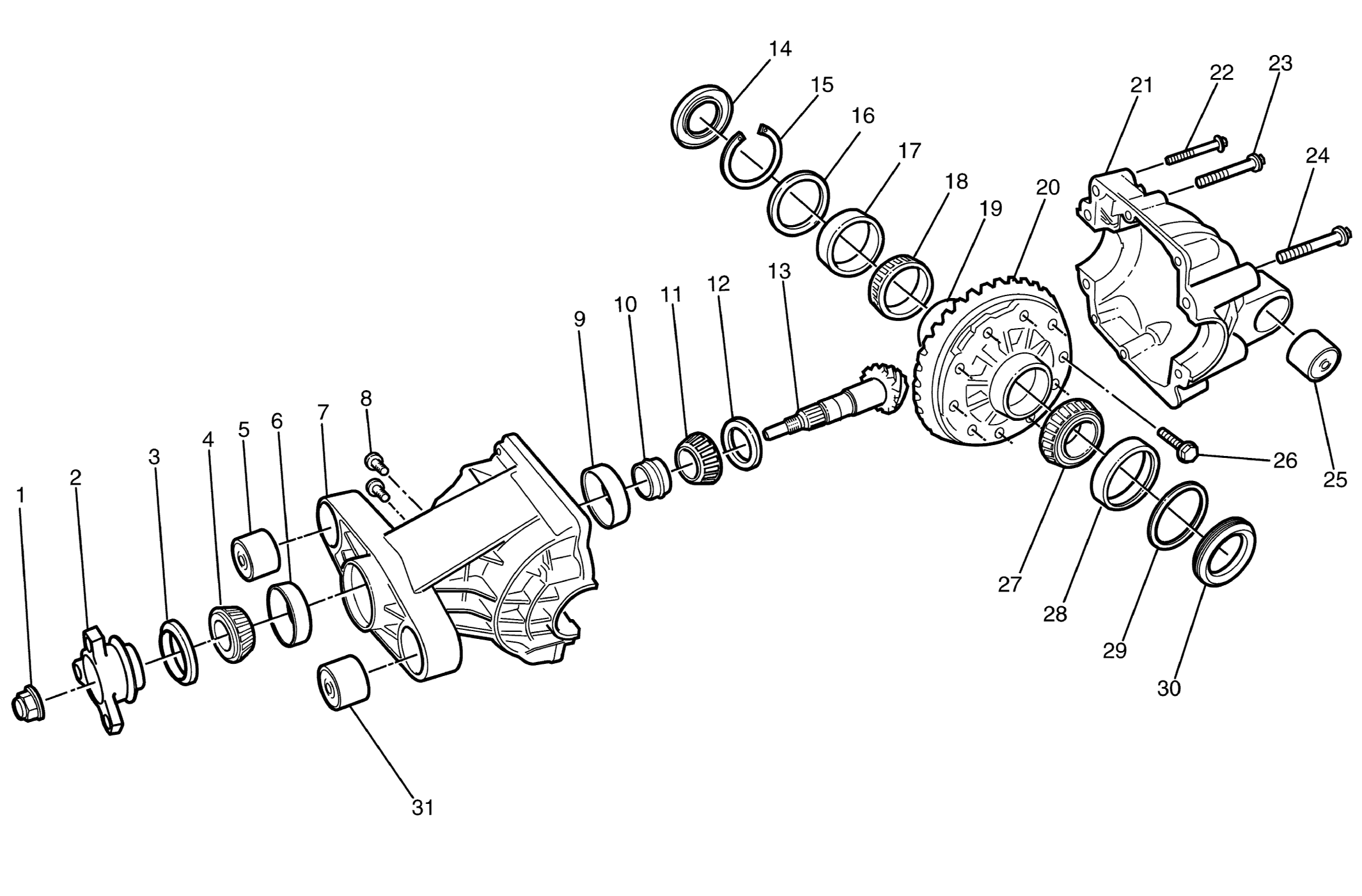

| 1 |
Prevailing Torque Pinion Flange Nut |
| 2 |
Pinion Flange |
| 3 |
Pinion Flange Oil Seal |
| 4 |
Pinion Tail Bearing |
| 5 |
Right Front Bushing |
| 6 |
Pinion Tail Bearing Cup |
| 7 |
Differential Housing |
| 8 |
Drain/Fill Plugs |
| 9 |
Pinion Head Bearing Cup |
| 10 |
Collapsible Spacer |
| 11 |
Pinion Head Bearing |
| 12 |
Pinion Shim |
| 13 |
Pinion Gear |
| 14 |
Right Axle Shaft Seal |
| 15 |
Circlip |
| 16 |
Right Shim |
| 17 |
Differential Bearing Cup |
| 18 |
Differential Bearing |
| 19 |
Differential Assembly |
| 20 |
Ring Gear |
| 21 |
Differential Housing Cover |
| 22 |
Differential Retaining Bolt M10 (6x) |
| 23 |
Differential Housing Bolt M14 x 135mm (2x) |
| 24 |
Differential Housing Bolt M14 x 100mm (2x) |
| 25 |
Rear Bushing |
| 26 |
Ring Gear Bolts M12 (10x) |
| 27 |
Differential Bearing |
| 28 |
Differential Bearing Cup |
| 29 |
Left Shim |
| 30 |
Axle Shaft Seal |
| 31 |
Left Front Bushing |
