Module Power, Ground, Serial Data, and Traction Control

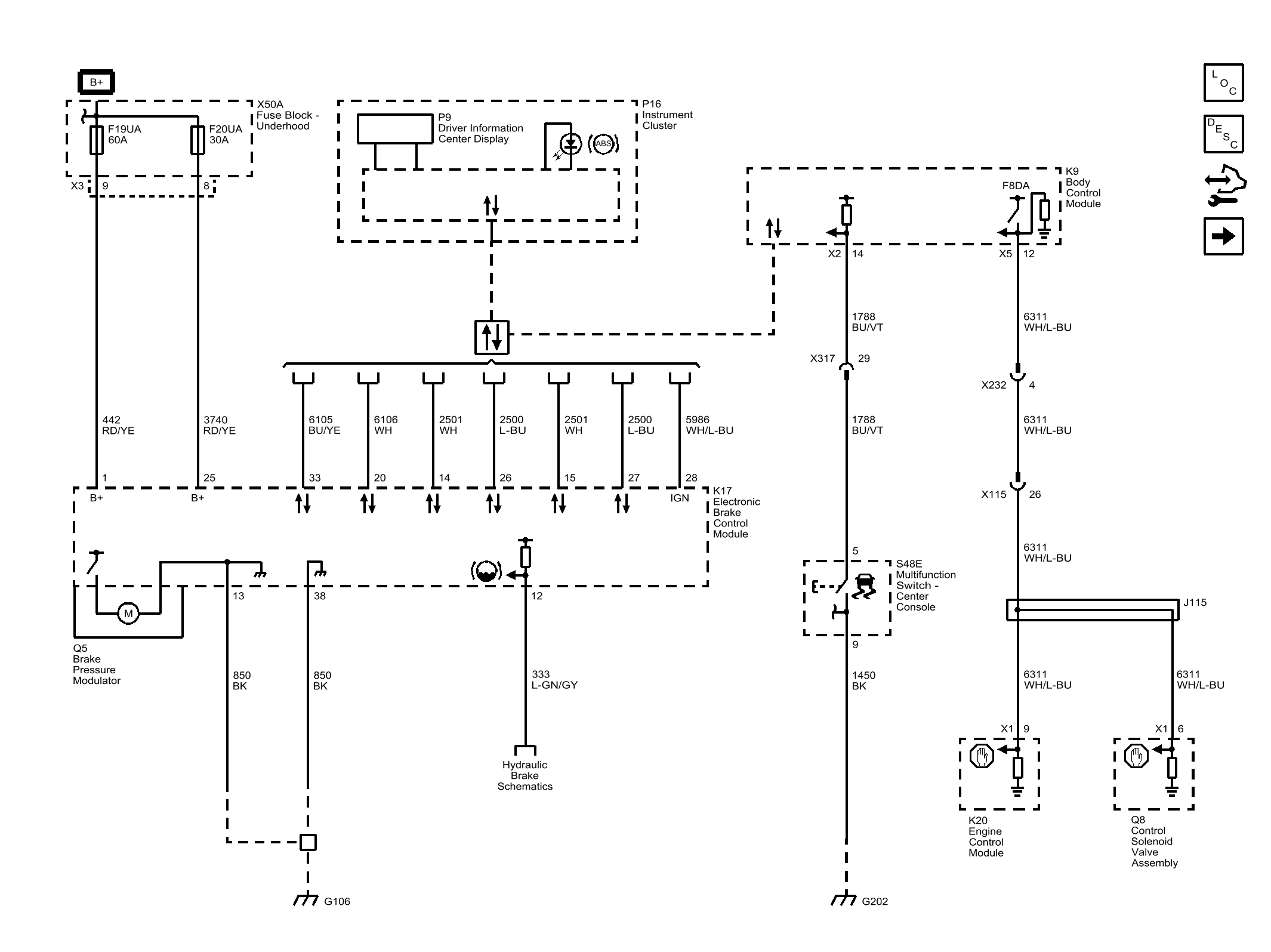

Fig 1: Module Power, Ground, Serial Data, and Traction Control

GM4236454

Courtesy of GENERAL MOTORS COMPANY
