Outside Rearview Mirror Housing Cover Replacement
Outside Rearview Mirror Housing Cover Replacement

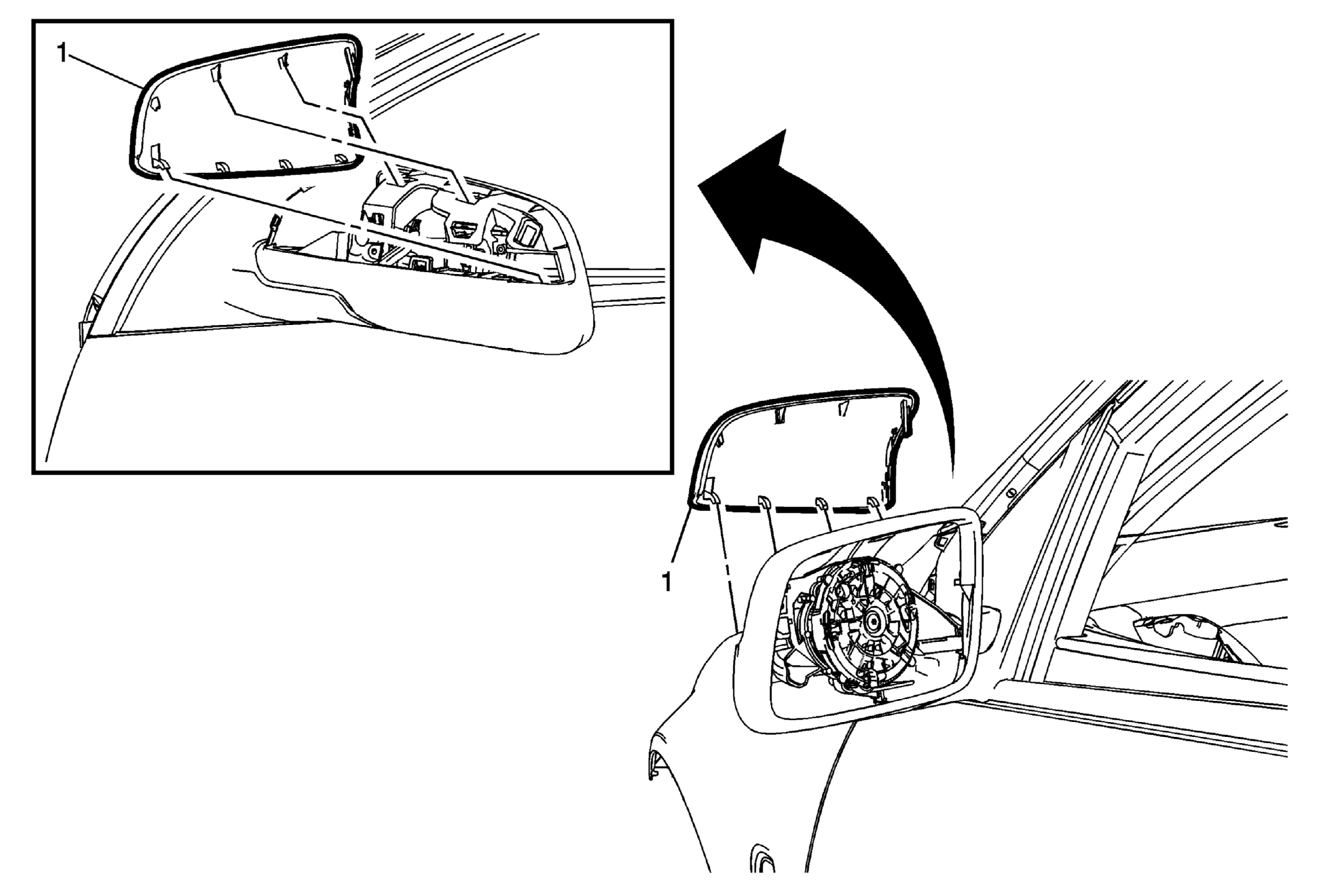

Fig 1: Outside Rearview Mirror Housing Cover
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Outside Rearview Mirror Housing Cover
Procedure
Firmly grasp the lower front edge of the mirror cover and lift upwards then outwards from the mirror to release the retainers.
NOTE:
Inspect the outside rearview mirror for proper operation.
