Front Outer Grille Replacement

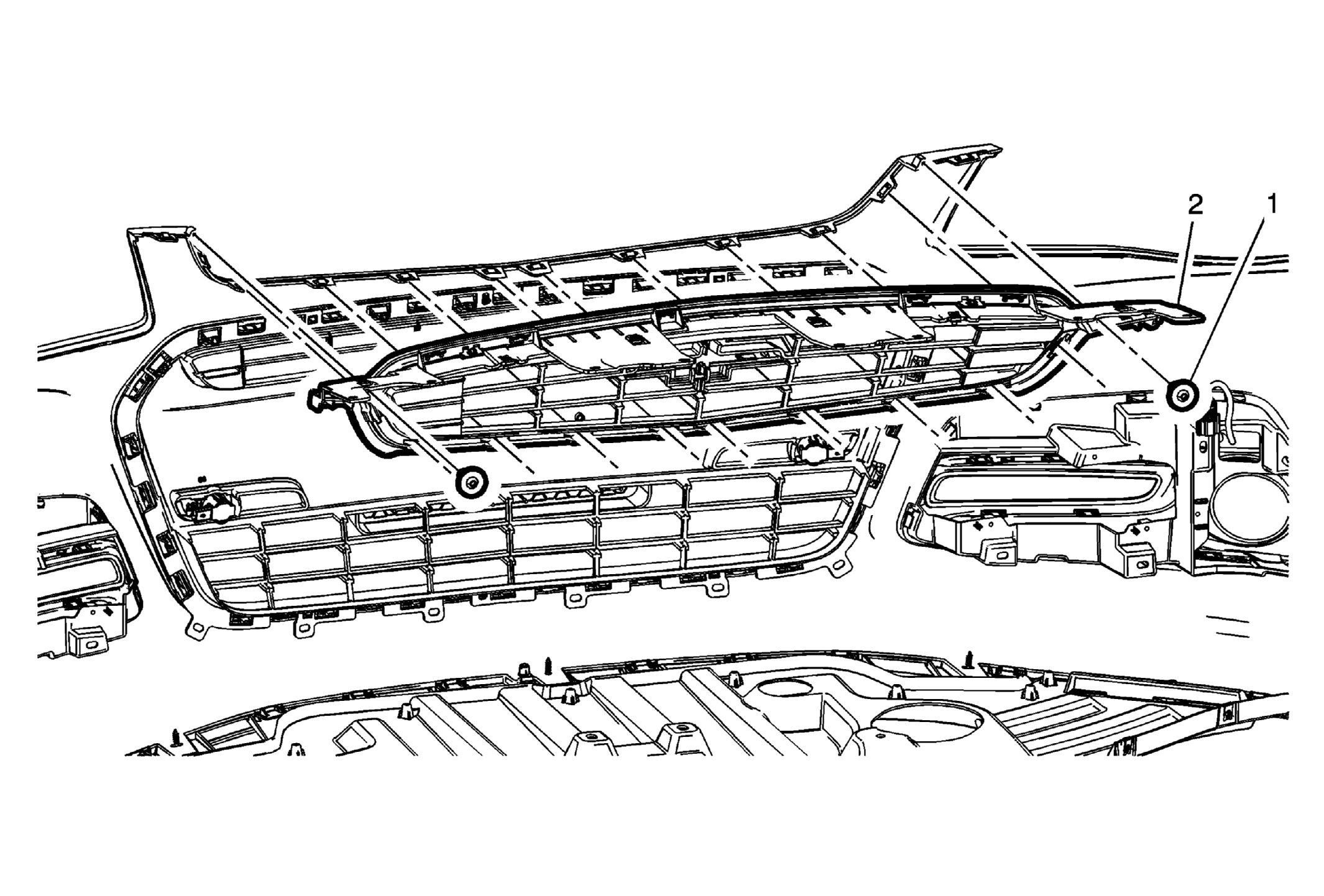

Fig 1: Front Outer Grille

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Radiator Grille Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radiator Upper Grille Procedure Release the 12 locking tabs from the radiator grille and pull from the front bumper fascia.
