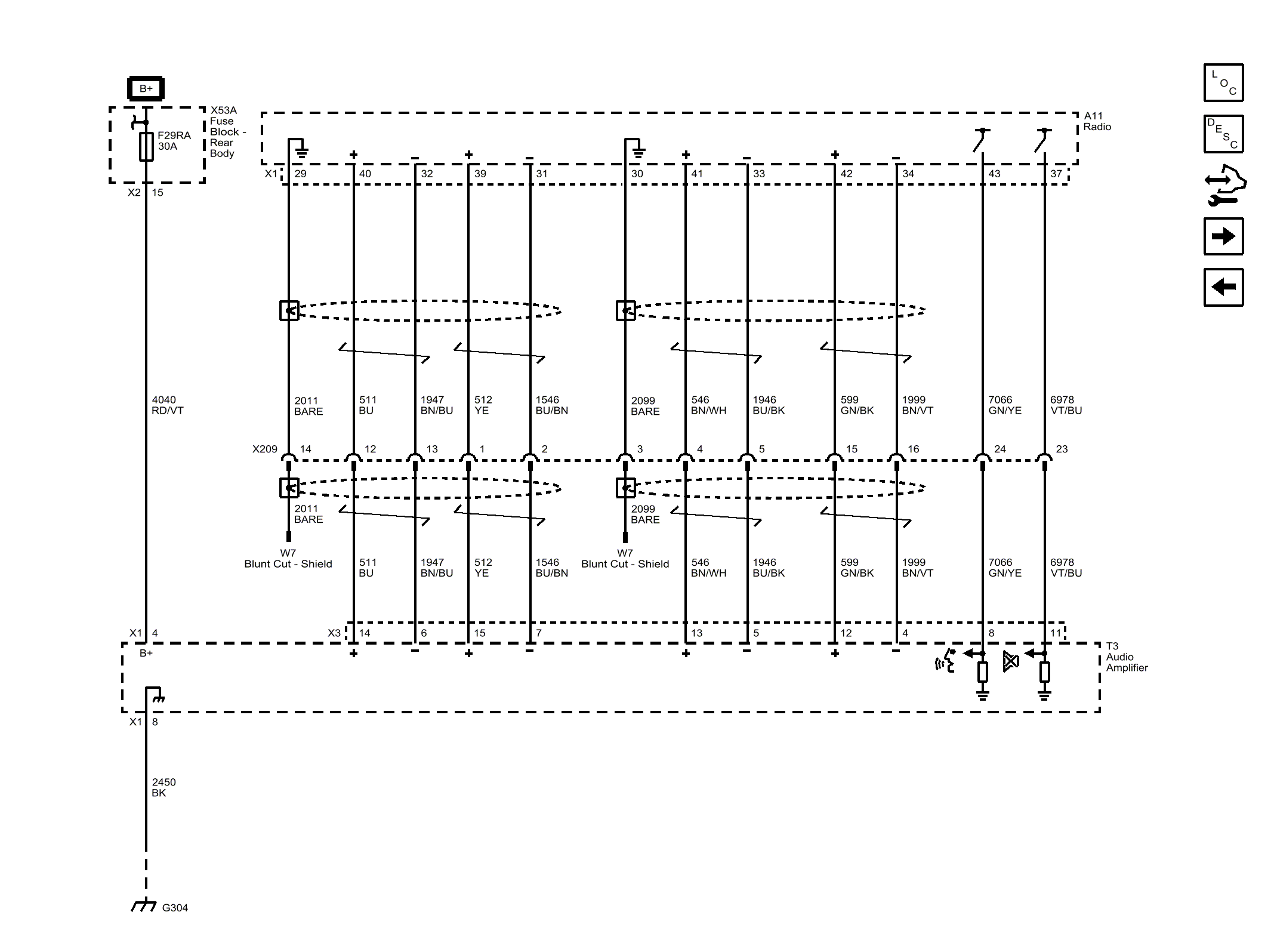

Home >> Chevrolet >> 2016 >> SS Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Cellular System, Entertainment System, And Navigation System >> Schematic Wiring Diagrams >> Radio/Navigation System Wiring Schematics >> Amplifier (UQA)
