Engine Oil Pressure Sensor Replacement

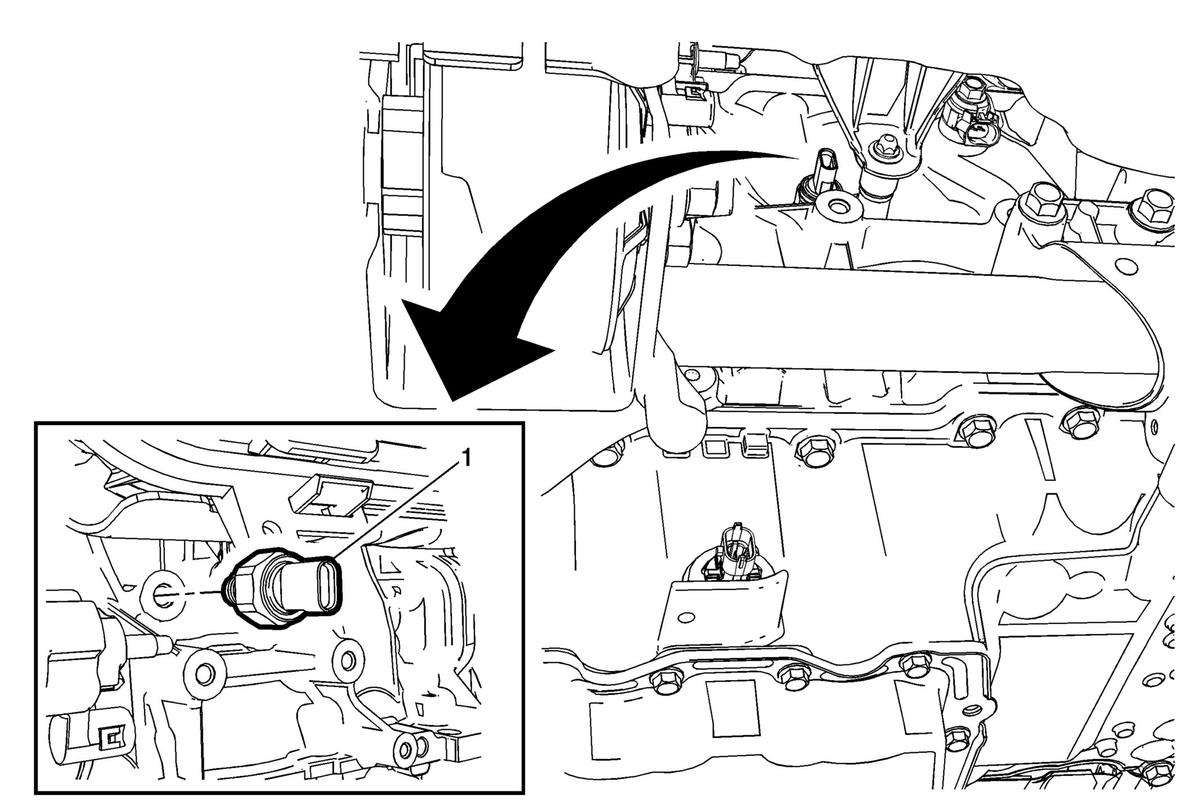

Fig 1: Engine Oil Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Raise and properly support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect the engine oil pressure sensor electrical connector. Tighten  35 N.m (26 lb ft)
