Automatic Transmission Components (MHN)

Automatic Transmission Components (MHN)

Items
1. Q8 Control Solenoid Valve Assembly Q8 Control Solenoid Valve Assembly X1 (MNH)Q8 Control Solenoid Valve Assembly X2 (MNH)Q8 Control Solenoid Valve Assembly X3 (MNH)Q8 Control Solenoid Valve Assembly X4 (MNH)
2. B280 Automatic Transmission Accumulator Solenoid Valve B280 Automatic Transmission Accumulator Solenoid Valve

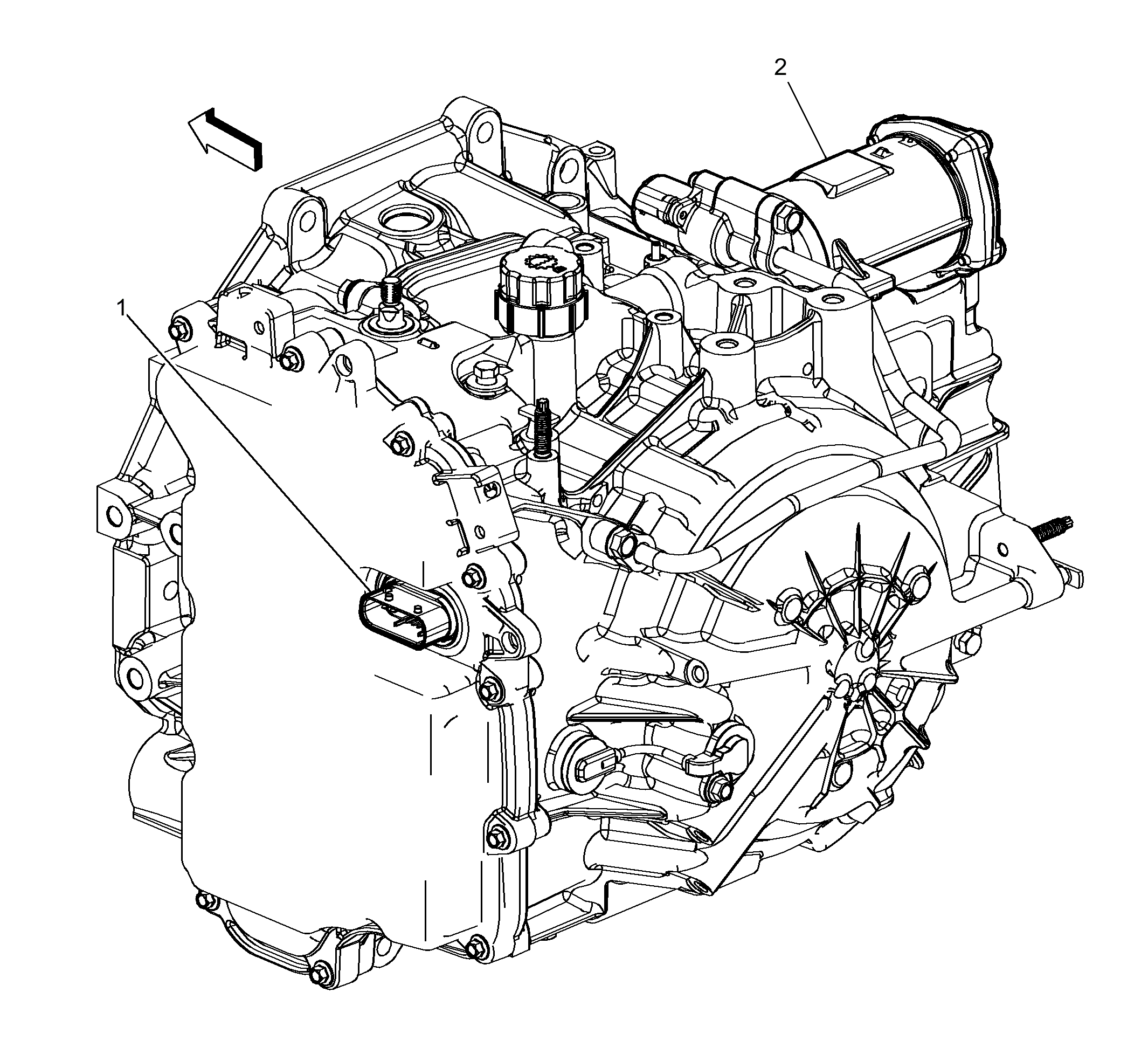

Fig 1: Automatic Transmission Components (MHN)
GM4090760Courtesy of GENERAL MOTORS COMPANY
