Power, Ground and Data Communication References

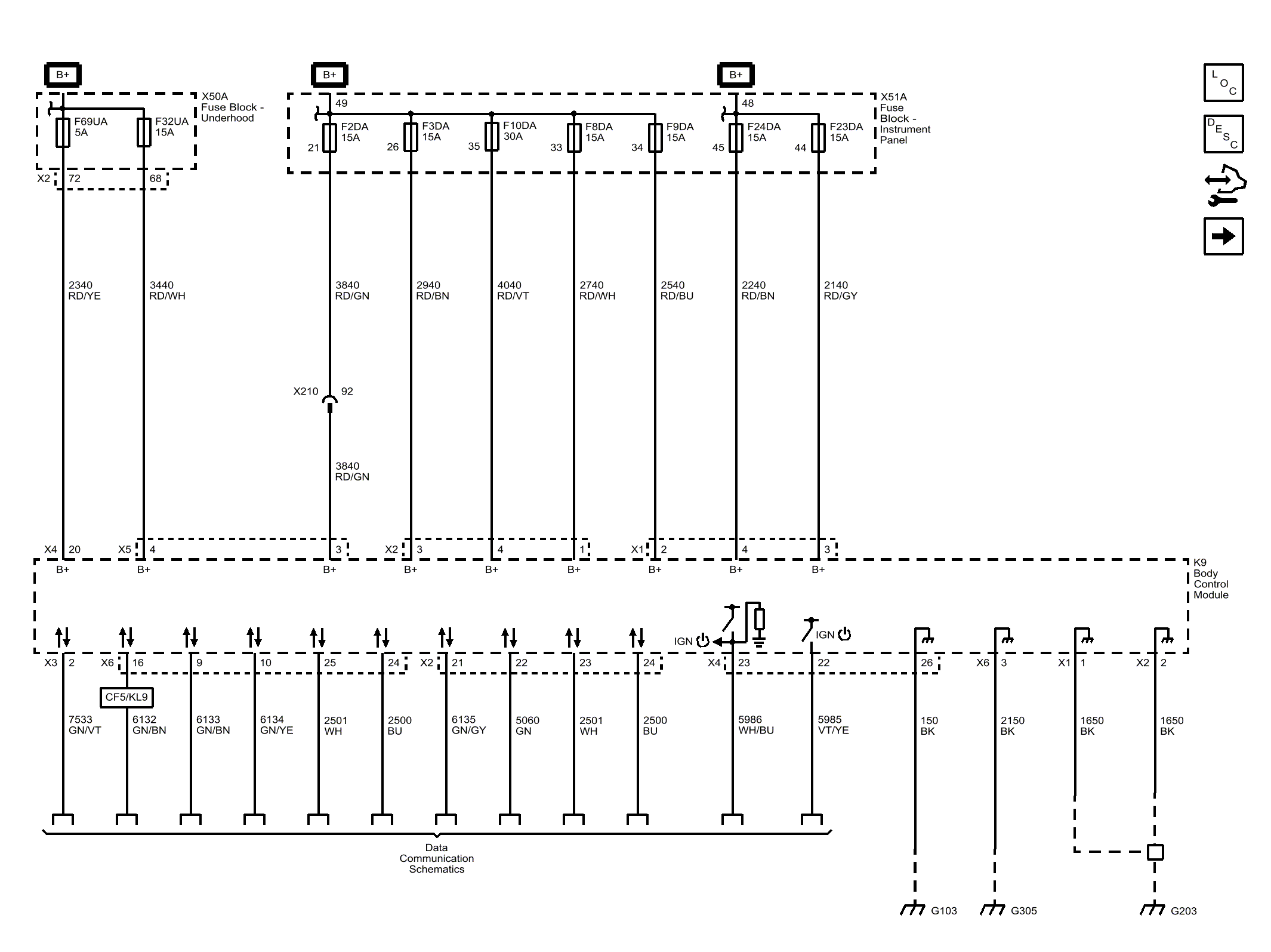

Fig 1: Power, Ground and Data Communication References

GM4079801

Courtesy of GENERAL MOTORS COMPANY
