Intake Air Duct Replacement

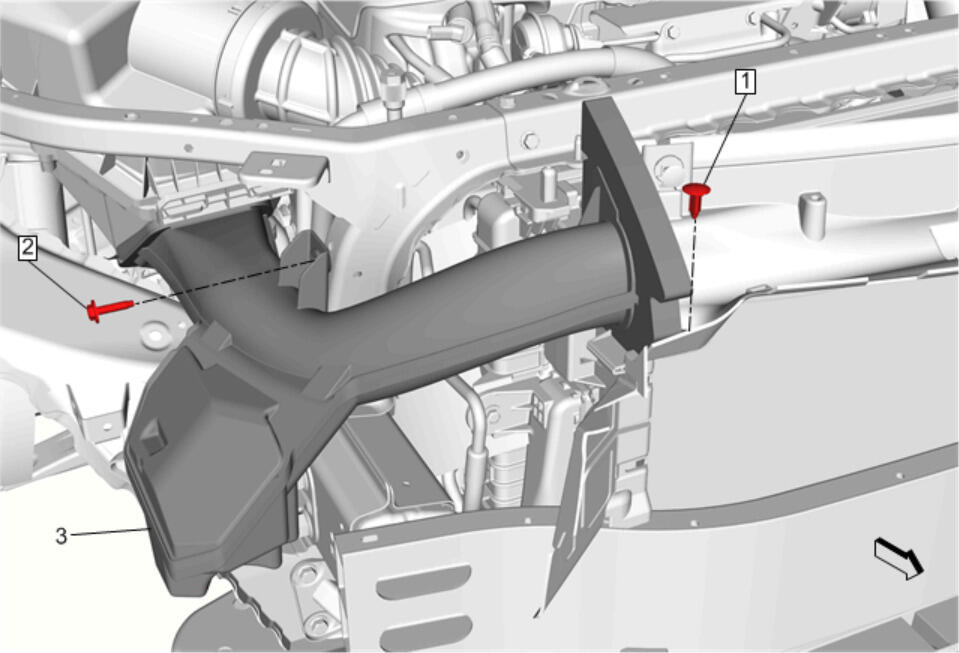

Fig 1: Intake Air Duct
GM4240558Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Headlamp Replacement
  2. Front Bumper Fascia Replacement
1 Intake Air Duct Retainer
CAUTION:

Refer to Fastener Caution .
2 Intake Air Duct Bolt
Tighten
9 N.m (80 lb in)
3 Intake Air Duct
