Front Parking Assist Alarm Sensor Bracket Replacement: Notes

Removal Procedure

1. Remov Front Bumper Fascia Front Bumper Fascia Replacement .
2. Disconnect and reposition harness as necessary.

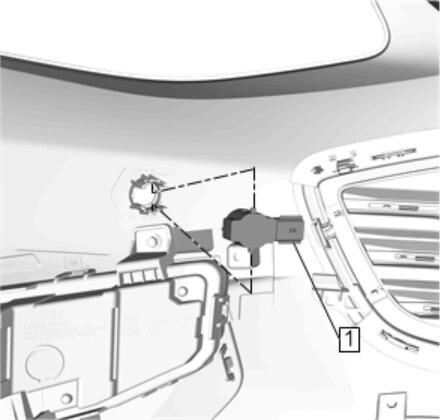

Fig 1: Front Parking Assist Alarm Sensor
Courtesy of GENERAL MOTORS COMPANY
3. Remove the sensor (1) from the sensor bracket.

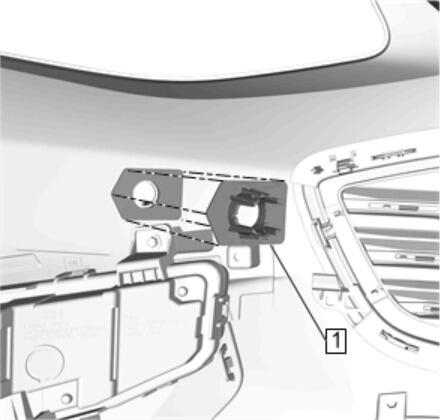

Fig 2: Front Parking Assist Alarm Sensor Bracket
Courtesy of GENERAL MOTORS COMPANY
4. Using a flat bladed tool carefully remove the bracket (1) from the fascia.

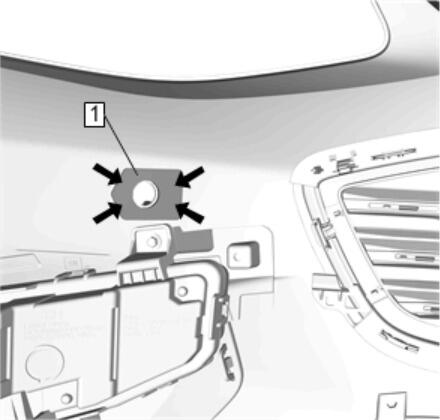

Fig 3: Sonic Weld Plastic Residue
Courtesy of GENERAL MOTORS COMPANY
NOTE:

Do Not sand off alignment tabs/outline.

5. Sand sonic weld plastic residue (1) from the fascia.
