Installation Procedure

WARNING: This page is about a different variant/trim than selected.

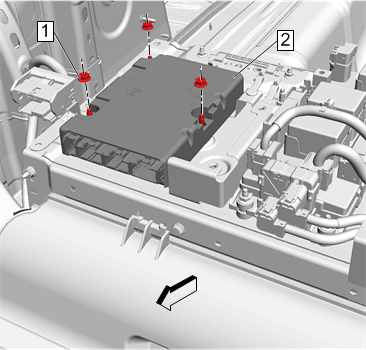

    Fig 1: Hybrid Powertrain Control Module
    GM4320498Courtesy of GENERAL MOTORS COMPANY
  1. Install Hybrid Powertrain Control Module (2)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Hybrid Powertrain Control Module Mounting Nut (1) (Qty: 3) and tighten to 9 N.m (80 lb in)

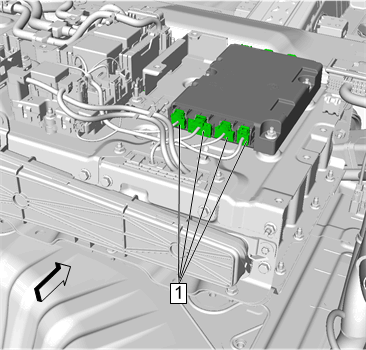

    3. Fig 2: Electrical Connector
    GM4320648Courtesy of GENERAL MOTORS COMPANY
  3. Connect Electrical Connector (1) (Qty: 4)

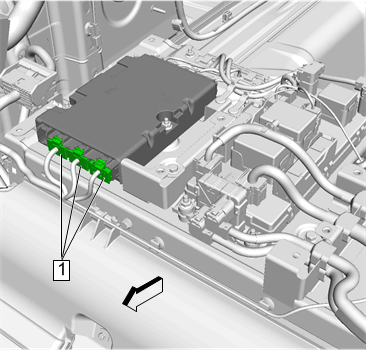

    4. Fig 3: Electrical Connector
    GM4320488Courtesy of GENERAL MOTORS COMPANY
  4. Connect Electrical Connector (1) (Qty: 3)

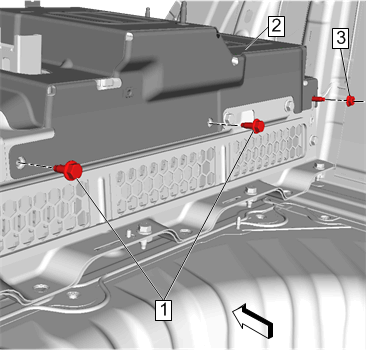

    5. Fig 4: High Voltage Battery Cover
    GM4318393Courtesy of GENERAL MOTORS COMPANY
  5. Install High Voltage Battery Cover (2) - High Voltage Battery Cover Replacement

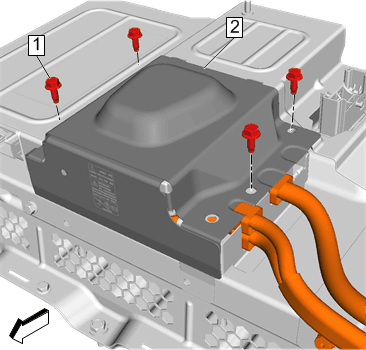

    6. Fig 5: High Voltage Battery Positive and Negative Cable Cover
    GM4291023Courtesy of GENERAL MOTORS COMPANY
  6. Install High Voltage Battery Positive and Negative Cable Cover (2) - High Voltage Battery Positive and Negative Cable Cover Replacement
  7. Enable the high voltage system. High Voltage Enabling
  8. Reprogram the hybrid powertrain control module 2, refer to Hybrid Powertrain Control Module 2 Programming and Setup
