Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Disable the high voltage system. High Voltage Disabling
    2. Fig 1: High Voltage Battery
    GM4321377Courtesy of GENERAL MOTORS COMPANY
  2. Remove High Voltage Battery (1) - High Voltage Battery Replacement and Shipping Preparation
    3. Fig 2: High Voltage Battery Tray Reinforcement - Left Side
    GM4321622Courtesy of GENERAL MOTORS COMPANY
  3. Remove High Voltage Battery Tray Reinforcement- Left Side (1) - High Voltage Battery Tray Reinforcement Replacement (Left Side)
    4. Fig 3: High Voltage Battery Tray Reinforcement - Right Side
    GM4322220Courtesy of GENERAL MOTORS COMPANY
  4. Remove High Voltage Battery Tray Reinforcement- Right Side (1) - High Voltage Battery Tray Reinforcement Replacement (Right Side)
    5. Fig 4: Battery Cover - Front
    GM4325172Courtesy of GENERAL MOTORS COMPANY
  5. Remove Battery Cover- Front (2) - Battery Cover Replacement (Front Panel)
    6. Fig 5: Battery Cover - Back
    GM4323859Courtesy of GENERAL MOTORS COMPANY
  6. Remove Battery Cover- Back (2) - Battery Cover Replacement (Back Panel)
    7. Fig 6: Wiring Harness Retainer
    GM4325406Courtesy of GENERAL MOTORS COMPANY
  7. Remove Battery Hold Down Retainer- Right Side Panel (3) - Battery Hold Down Retainer Replacement (Right Side Panel)
    8. Fig 7: Battery Hold Down Retainer - Left Side Panel
    GM4325362Courtesy of GENERAL MOTORS COMPANY
  8. Remove Battery Hold Down Retainer- Left Side Panel (3) - Battery Hold Down Retainer Replacement (Left Side Panel)
    9. Fig 8: Battery Cooling Air Inlet Duct - Front
    GM4325512Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Take care not to damage duct seal (1) when removing.

  9. Remove Battery Cooling Air Inlet Duct- Front (2)
    10. Fig 9: Battery Cooling Air Inlet Duct - Rear
    GM4325438Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Take care not to damage duct seal (2), when removing.

  10. Remove Battery Cooling Air Inlet Duct- Rear (1)

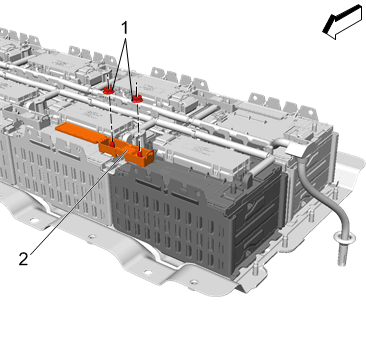

    11. Fig 10: High Voltage Bus Bar Fastener
    GM4332071Courtesy of GENERAL MOTORS COMPANY
  11. Remove High Voltage Bus Bar Fastener (1) (Qty: 2)
  12. Remove High Voltage Bus Bar (2)

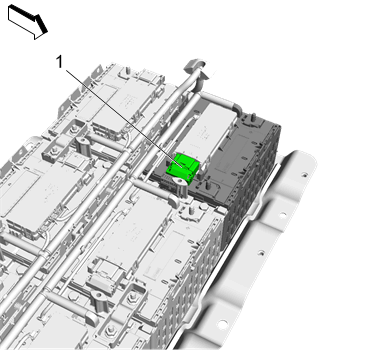

    13. Fig 11: Ribbon Connector
    GM4332076Courtesy of GENERAL MOTORS COMPANY
  13. Disconnect the ribbon connector (1)

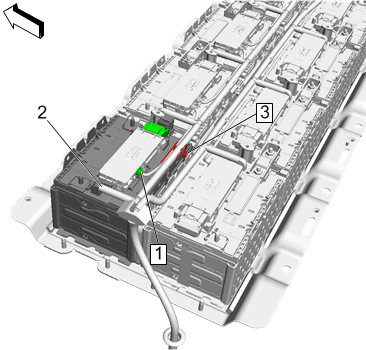

    14. Fig 12: Battery Vent Tube
    GM4332078Courtesy of GENERAL MOTORS COMPANY
  14. Disconnect Battery Vent Tube (2)
  15. Disconnect Electrical Connector (1)
  16. Disengage Retainer Clip (3)

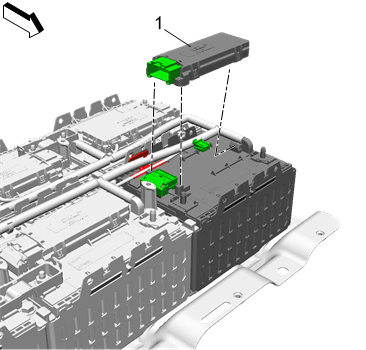

    17. Fig 13: High Voltage Battery Interface Control Module
    GM4332081Courtesy of GENERAL MOTORS COMPANY
  17. Remove High Voltage Battery Interface Control Module (1)

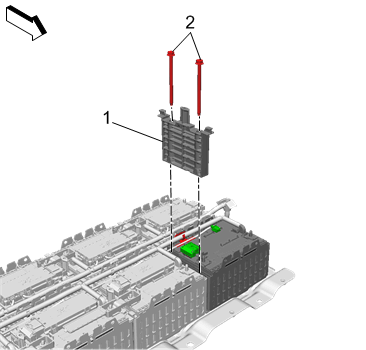

    18. Fig 14: Battery Hold Down Bolt
    GM4332083Courtesy of GENERAL MOTORS COMPANY
  18. Remove Battery Hold Down Bolt (2) (Qty: 2)
  19. Remove Battery Hold Down Retainer (1)

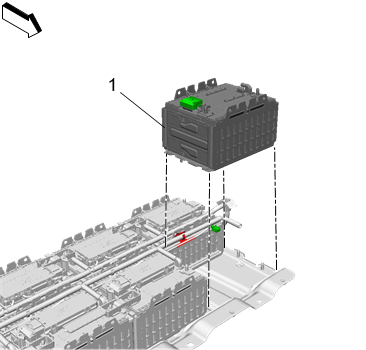

    20. Fig 15: Cell Battery Module
    GM4332084Courtesy of GENERAL MOTORS COMPANY
  20. Remove Cell Battery Module (1)
    21. Fig 16: Shipping Bracket
    GM4328783Courtesy of GENERAL MOTORS COMPANY
  21. If replacing the cell battery module, insert the shipping bracket (2) that comes with the NEW cell battery.
  22. Install the retainers (1)
