Installation Procedure

WARNING: This page is about a different variant/trim than selected.

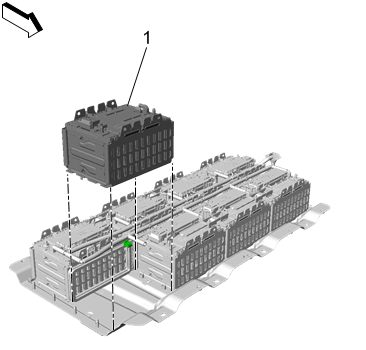

    Fig 1: Cell Battery Module
    GM4334515Courtesy of GENERAL MOTORS COMPANY
  1. Install Cell Battery Module (1)

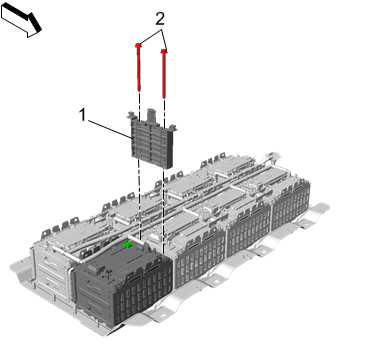

    2. Fig 2: Battery Hold Down Retainer
    GM4334513Courtesy of GENERAL MOTORS COMPANY
  2. Install Battery Hold Down Retainer (1)
    3. CAUTION:

    Refer to Fastener Caution

  3. Install Battery Hold Down Bolt (2) (Qty: 2) and tighten to 9 N.m (80 lb in)

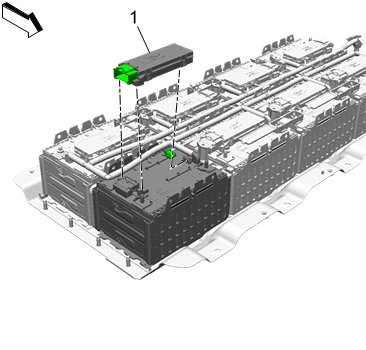

    4. Fig 3: High Voltage Battery Interface Control Module
    GM4334508Courtesy of GENERAL MOTORS COMPANY
  4. Install High Voltage Battery Interface Control Module (1)

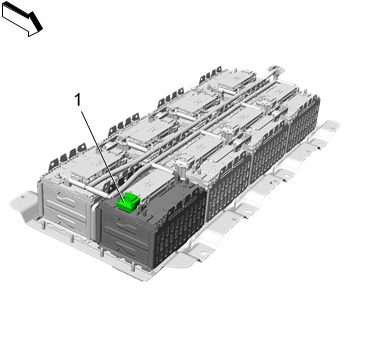

    5. Fig 4: Ribbon Connector
    GM4334502Courtesy of GENERAL MOTORS COMPANY
  5. Connect the ribbon connector (1)

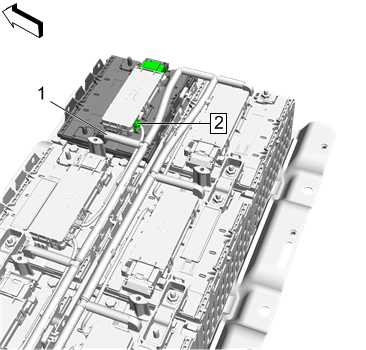

    6. Fig 5: Battery Vent Tube
    GM4334505Courtesy of GENERAL MOTORS COMPANY
  6. Connect Electrical Connector (2)
  7. Connect Battery Vent Tube (1)

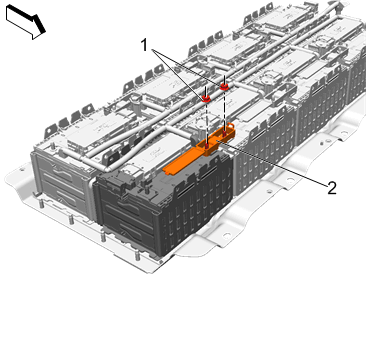

    8. Fig 6: High Voltage Bus Bar Fastener
    GM4334494Courtesy of GENERAL MOTORS COMPANY
  8. Install High Voltage Bus Bar (2)
  9. Install High Voltage Bus Bar Fastener (1) (Qty: 2) and tighten to 9 N.m (80 lb in)
    10. Fig 7: Auxiliary Battery Negative Cable
    GM4328261Courtesy of GENERAL MOTORS COMPANY
  10. Install Auxiliary Battery Negative Cable (4) - Auxiliary Battery Cable Replacement
  11. Perform Hybrid/EV battery cell balancing, refer to Hybrid/EV Battery Cell Balancing
    12. Fig 8: Wiring Harness Retainer
    GM4325406Courtesy of GENERAL MOTORS COMPANY
  12. Install Battery Hold Down Retainer- Right Side Panel (3) - Battery Hold Down Retainer Replacement (Right Side Panel)
    13. Fig 9: Battery Hold Down Retainer - Left Side Panel
    GM4325362Courtesy of GENERAL MOTORS COMPANY
  13. Install Battery Hold Down Retainer- Left Side Panel (3) - Battery Hold Down Retainer Replacement (Left Side Panel)
    14. Fig 10: Battery Cover - Front
    GM4325172Courtesy of GENERAL MOTORS COMPANY
  14. Install Battery Cover- Front (2) - Battery Cover Replacement (Front Panel)
    15. Fig 11: Battery Cover - Back
    GM4323859Courtesy of GENERAL MOTORS COMPANY
  15. Install Battery Cover- Back (2) - Battery Cover Replacement (Back Panel)
    16. Fig 12: High Voltage Battery Tray Reinforcement - Right Side
    GM4322220Courtesy of GENERAL MOTORS COMPANY
  16. Install High Voltage Battery Tray Reinforcement- Right Side (1) - High Voltage Battery Tray Reinforcement Replacement (Right Side)
    17. Fig 13: High Voltage Battery Tray Reinforcement - Left Side
    GM4321622Courtesy of GENERAL MOTORS COMPANY
  17. Install High Voltage Battery Tray Reinforcement- Left Side (1) - High Voltage Battery Tray Reinforcement Replacement (Left Side)
    18. Fig 14: High Voltage Battery
    GM4321377Courtesy of GENERAL MOTORS COMPANY
  18. Install High Voltage Battery (1) - High Voltage Battery Replacement and Shipping Preparation
  19. Enable the high voltage system. High Voltage Enabling
