Oil Pump Flow Control Valve Replacement

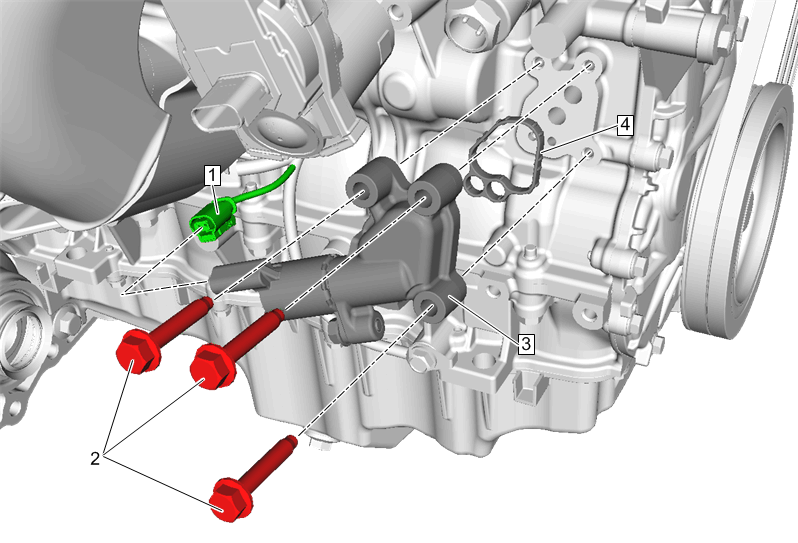

Fig 1: Oil Pump Flow Control Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Air Conditioning Compressor Bracket Replacement (LKN)
1	Electrical Connector
2	Oil Pump Flow Control Valve Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
3	Oil Pump Flow Control Valve
4	Oil Pump Housing Passage Outer Seal Procedure  Install a NEW seal.
