Installation Procedure

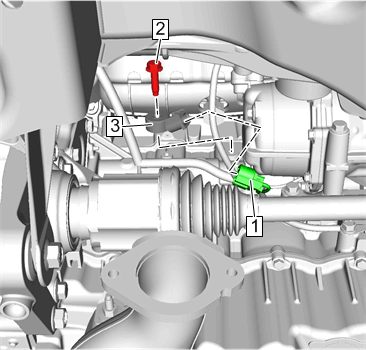

    Fig 1: Knock Sensor
    GM4331848Courtesy of GENERAL MOTORS COMPANY
  1. Install Knock Sensor (3)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install Knock Sensor Bolt (2) and tighten to 22 N.m (16 lb ft)
  3. Connect Electrical Connector (1)
    4. Fig 2: Intake Manifold Brace Bolt
    GM4248348Courtesy of GENERAL MOTORS COMPANY
  4. Install Intake Manifold Brace (1)
  5. Install Intake Manifold Brace Bolt (2) (Qty: 2) and tighten to 10 N.m (89 lb in)
  6. Install Exhaust Front Pipe - Exhaust Front Pipe Replacement (LKN)
