Installation Procedure

    Fig 1: Fuel Tank Fuel Pump Module
    GM4230590Courtesy of GENERAL MOTORS COMPANY
  1. Install New O-Ring (2)
  2. Install Fuel Tank Fuel Pump Module (1)
    3. Fig 2: Fuel Pump Vent Pipe
    GM4240201Courtesy of GENERAL MOTORS COMPANY
  3. Connect Fuel Pump Vent Pipe (1) - Plastic Collar Quick Connect Fitting Service
    4. Fig 3: Fuel Pump Lock Ring
    GM4230523Courtesy of GENERAL MOTORS COMPANY
  4. Install Fuel Pump Lock Ring (1) - CH 45722  Fuel Sender Lock Ring Wrench

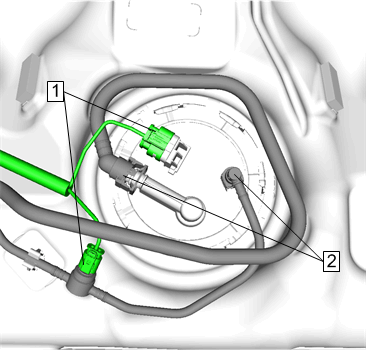

    5. Fig 4: Fuel Tank Fuel Pump Module Electrical Connector
    GM4321408Courtesy of GENERAL MOTORS COMPANY
  5. Connect Fuel and EVAP Pipe (2) (Qty: 2) - Plastic Collar Quick Connect Fitting Service
  6. Connect Electrical Connector (1) at Fuel Tank Fuel Pump Module (Qty: 2)
  7. Install Fuel Tank - Fuel Tank Replacement
