Engine Control Module Bracket Replacement

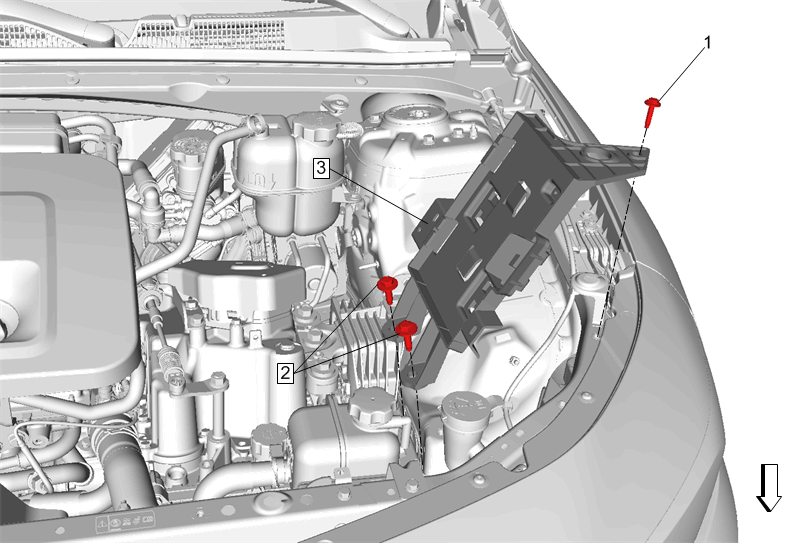

Fig 1: Engine Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Engine Control Module Replacement
1	Engine Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Engine Control Module Bracket Bolt (Qty: 2) Tighten  22 N.m (16 lb ft)
3	Engine Control Module Bracket Procedure  Unclip engine harness and connectors from the bracket.
