Installation Procedure

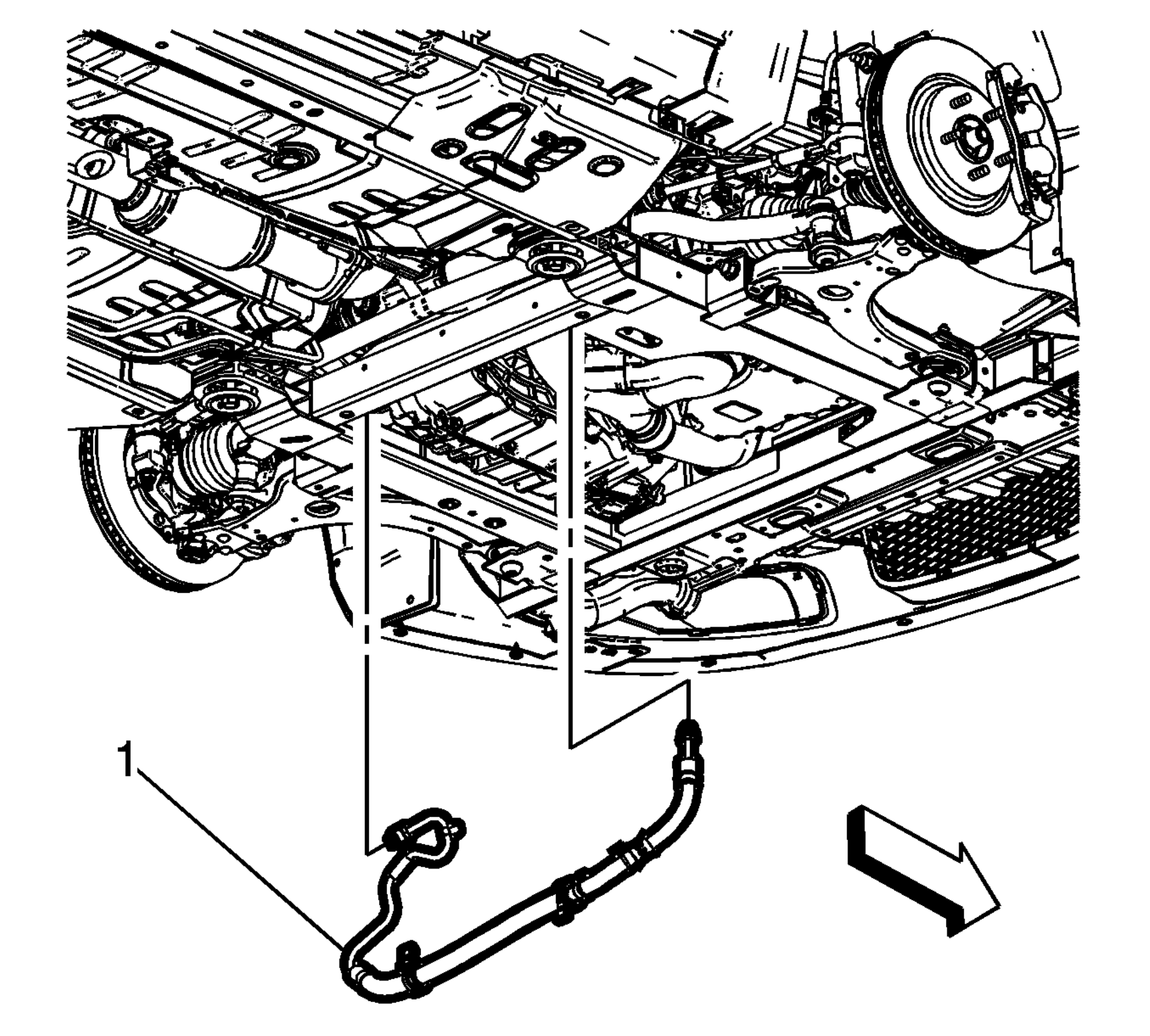

    Fig 1: Power Steering Gear Inlet Hose
    GM2871464Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Installing Hoses without Twists or Bends Caution .

  1. Position the power steering gear inlet hose (1) in the vehicle.

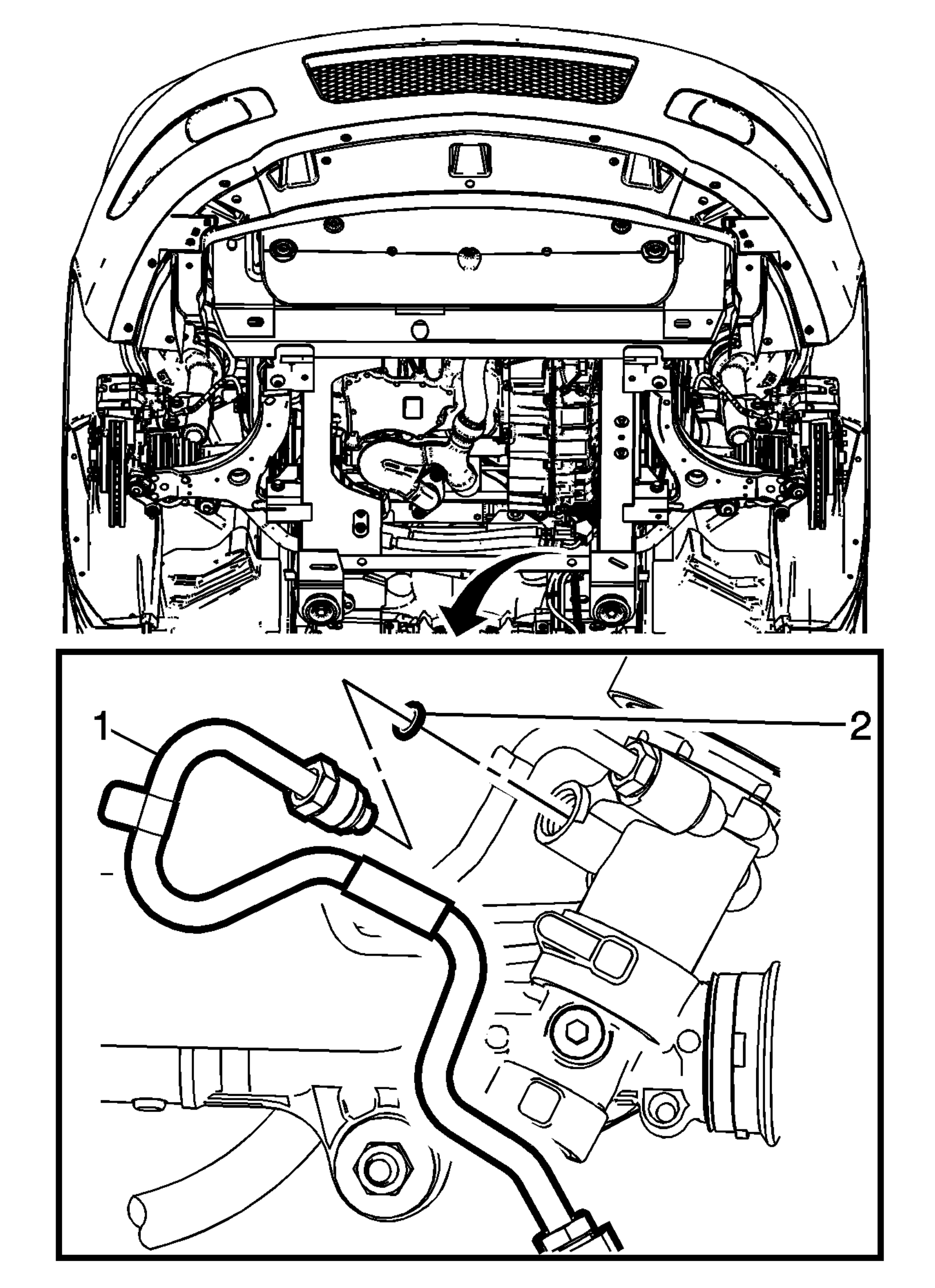

    2. Fig 2: Power Steering Gear Inlet Hose And O-Ring Seal
    GM2629836Courtesy of GENERAL MOTORS COMPANY
  2. Install a NEW power steering gear inlet hose O-ring seal (2).

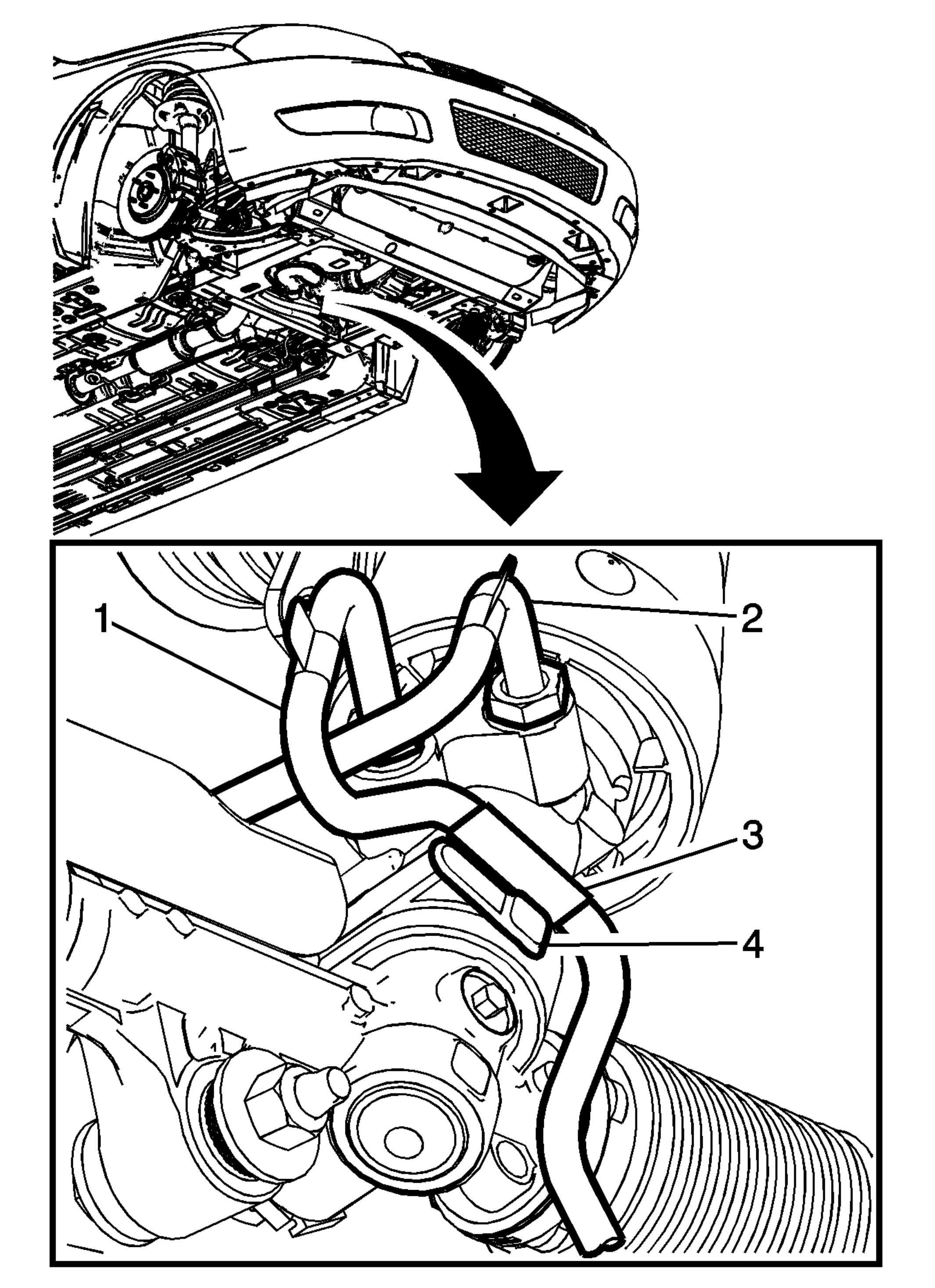

    3. Fig 3: Power Steering Gear Inlet Hose, Steering Gear Housing Casting And Rubber Isolation Tube
    GM2688837Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    The position of the rubber isolation tube (3) against the steering gear housing casting (4) is critical to the performance of the power steering gear inlet hose (1).

  3. Connect the power steering gear inlet hose to the steering gear. Position the rubber isolation tube against the steering gear housing casting. Tighten the fitting to 34 N.m (25 lb ft).

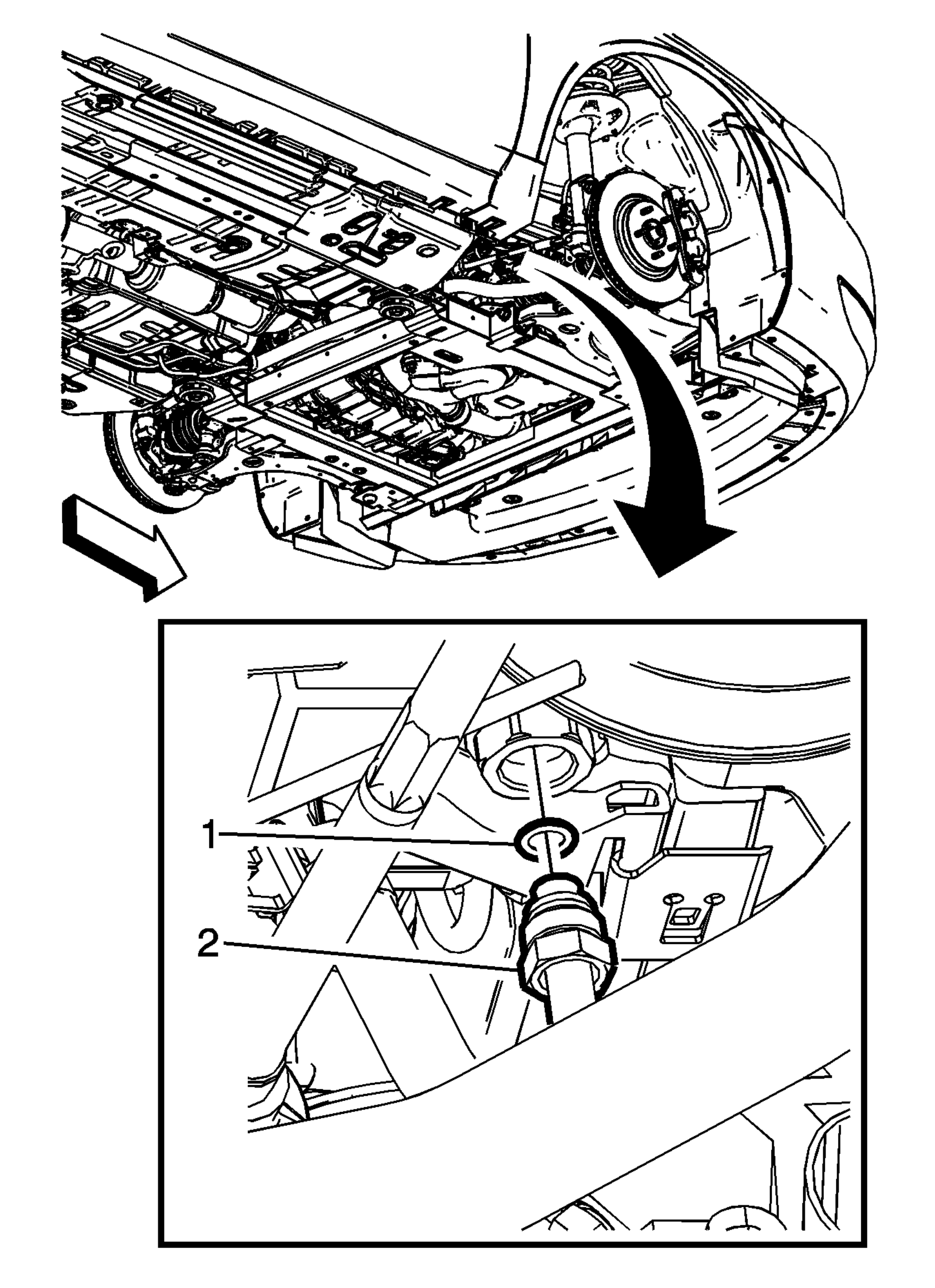

    4. Fig 4: Power Steering Gear Inlet Hose And O-Ring Seal
    GM2611661Courtesy of GENERAL MOTORS COMPANY
  4. Install a NEW power steering gear inlet hose O-ring seal (1).
  5. Connect the power steering gear inlet hose (2) to the power steering pump and tighten the fitting to 34 N.m (25 lb ft).

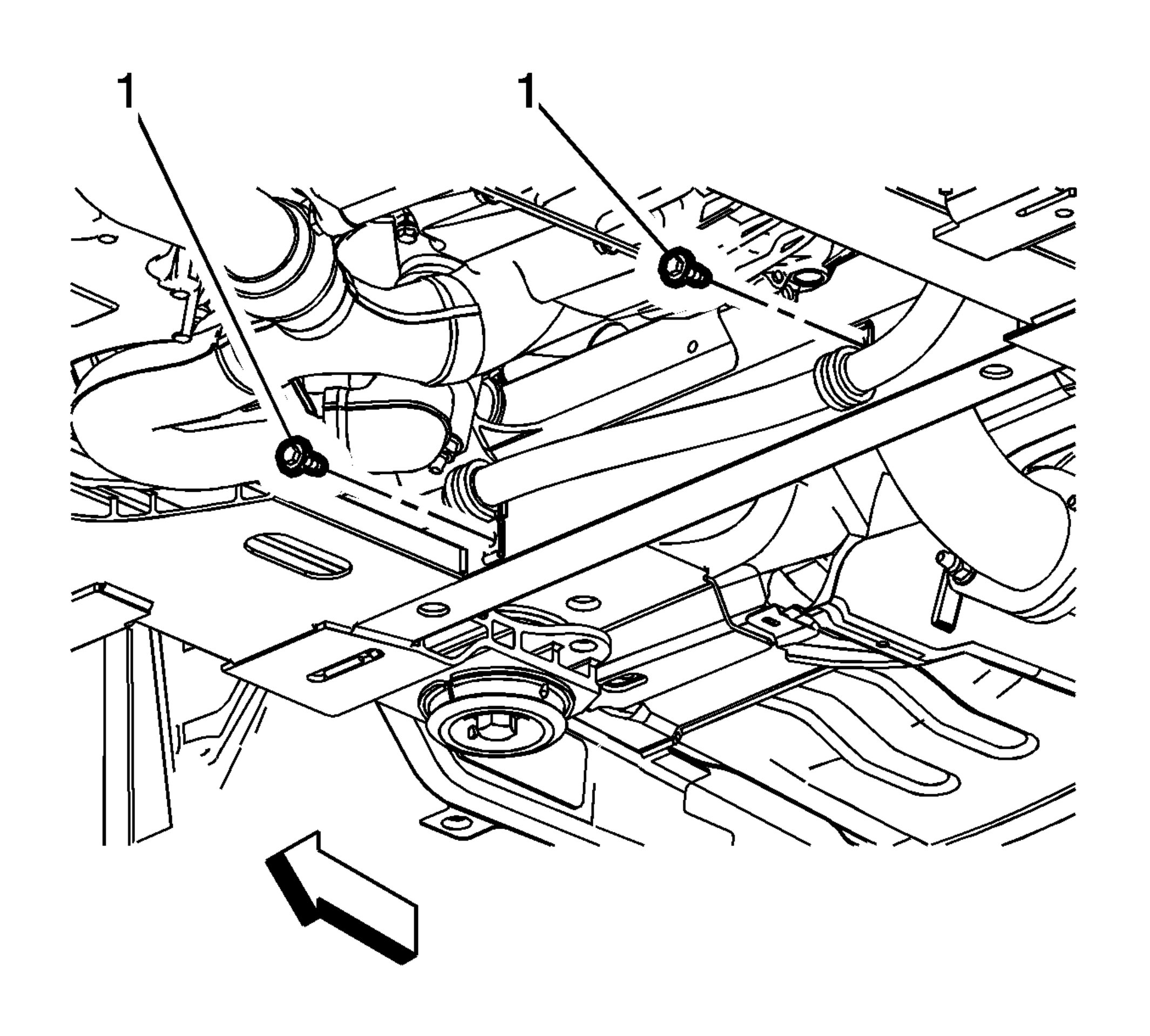

    6. Fig 5: Power Steering Gear Inlet Hose Bracket Bolts
    GM2871378Courtesy of GENERAL MOTORS COMPANY
  6. Install the power steering gear inlet hose bracket bolts (1) and tighten to 7 N.m (62 lb in).
  7. Install the front tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation .
  8. Lower the vehicle.
  9. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
  10. Clean any excess power steering fluid from the vehicle.
  11. Remove the drain pans.
