Oil Pump Flow Control Valve Heat Shield Replacement

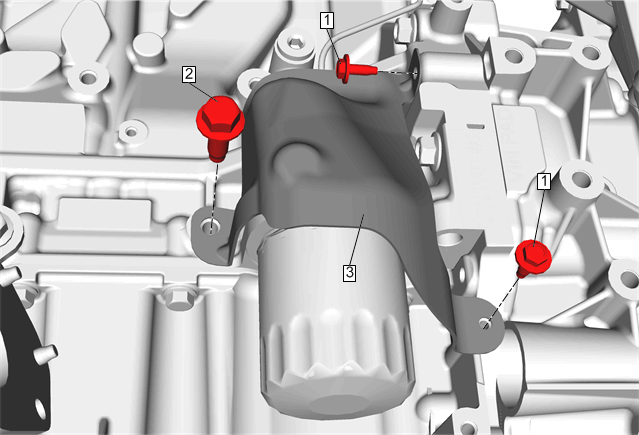

Fig 1: Oil Pump Flow Control Valve Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Lifting and Jacking the Vehicle
1	Pump and Component Oil Heat Shield Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Oil Pump Flow Control Valve Heat Shield Fastener Tighten  58 N.m (43 lb ft)
3	Oil Pump Flow Control Valve Heat Shield
