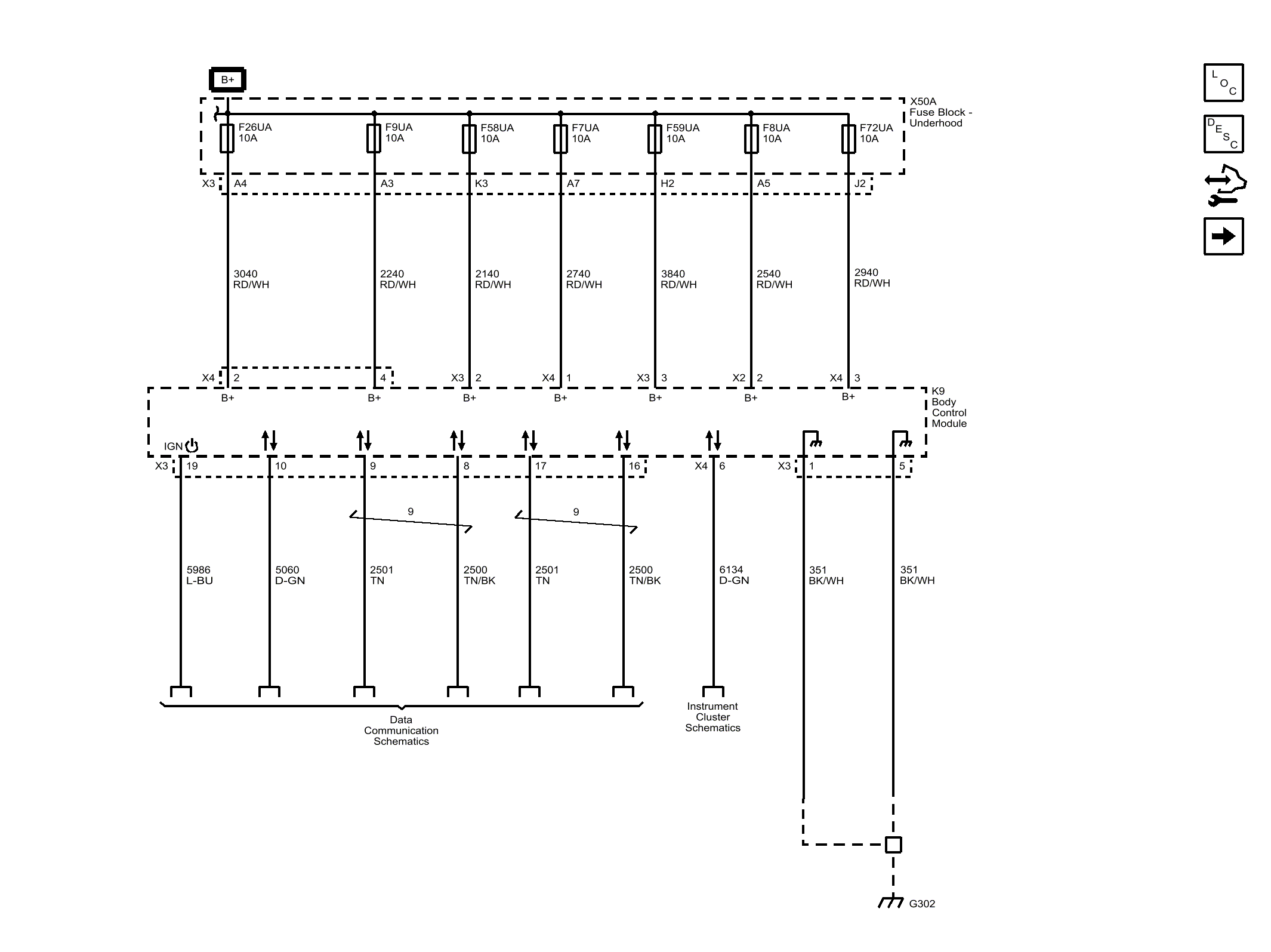

Home >> Chevrolet >> 2016 >> Express 2500 LS, 4.8L Eng VIN F >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Body Control System Wiring Schematics >> BCM Power, Ground and Serial Data
