Linear Interconnect Network (LIN) Serial Data

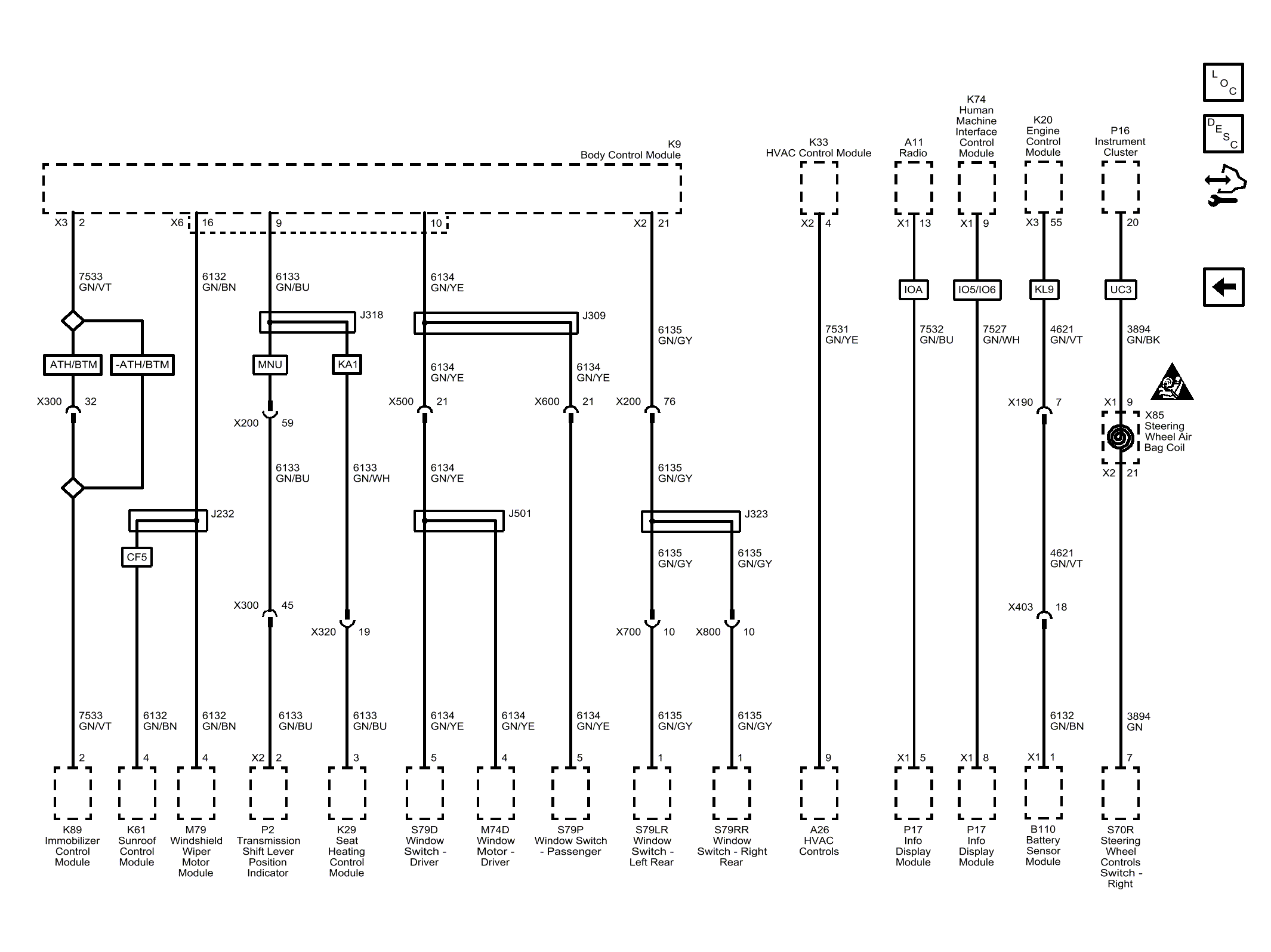

Fig 1: Linear Interconnect Network (LIN) Serial Data

GM4251626

Courtesy of GENERAL MOTORS COMPANY
