Installation Procedure

  1. Install a NEW gasket to the water outlet. (3).

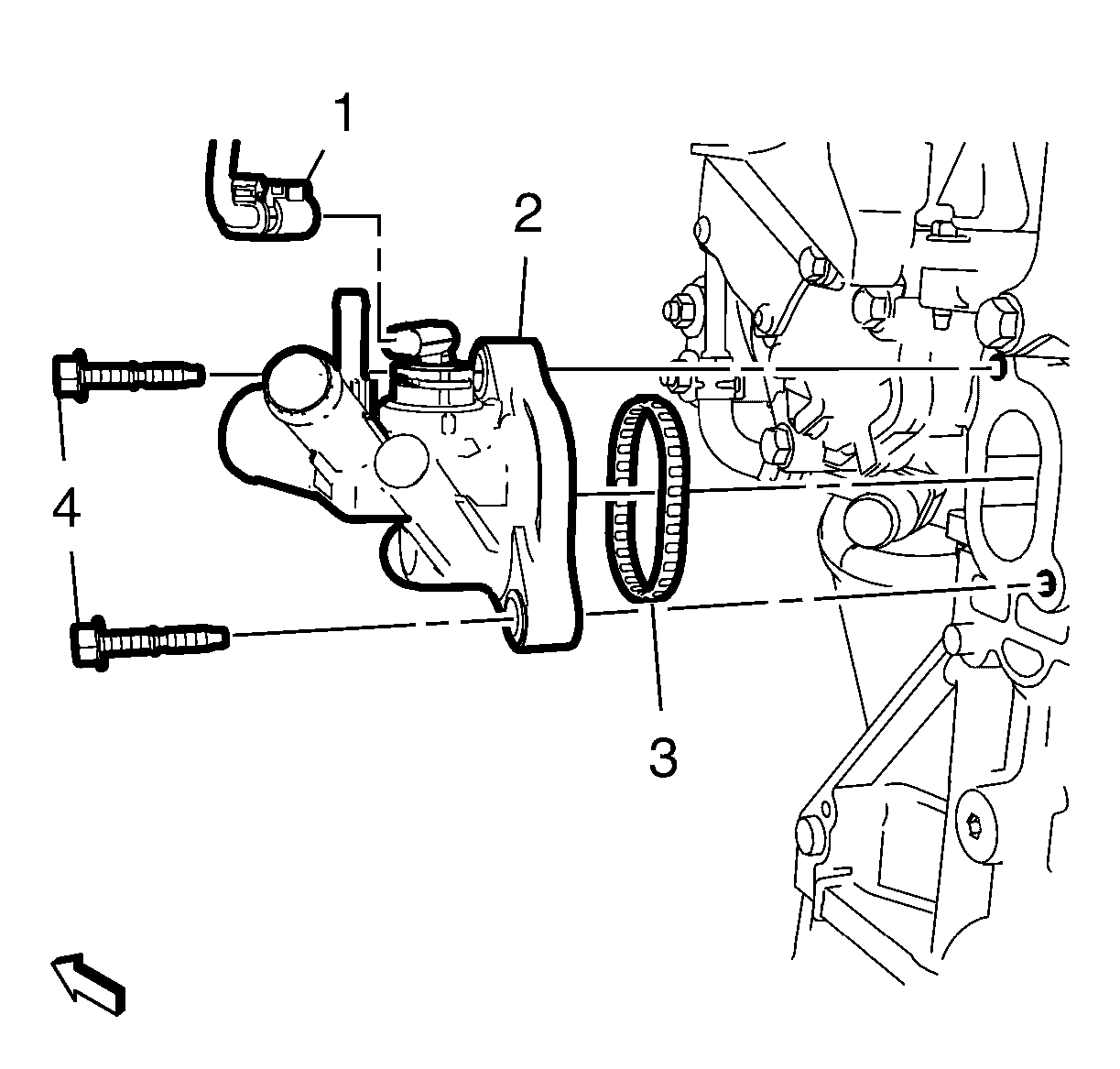

    Fig 1: Wiring Harness Plug And Water Outlet Bolts
    GM3682491Courtesy of GENERAL MOTORS COMPANY
  2. Install the water outlet. (2).
  3. Install the 2 water outlet bolts (4) and tighten to 12 N.m (106 lb in).
    CAUTION: Refer to Fastener Caution
  4. Connect the electrical connector. (1) @ Water Outlet (2).
  5. Heater Outlet Hose Replacement » Install @ Water Outlet.
  6. Heater Inlet Hose Replacement » Install @ Water Outlet.
  7. Radiator Inlet Hose Replacement »Install @ Water Outlet.
  8. Thermostat Bypass Hose Replacement » Install @ Water Outlet.
  9. Engine Coolant Air Bleed Hose Replacement (1.4L LE2 - Turbocharger Coolant Return Pipe to Water Outlet) Engine Coolant Air Bleed Hose Replacement (1.4L LE2 - Radiator Surge Tank to Turbocharger Coolant Return Pipe) » Install @ Water Outlet
  10. Cooling System Draining and Filling » Fill the cooling system.
