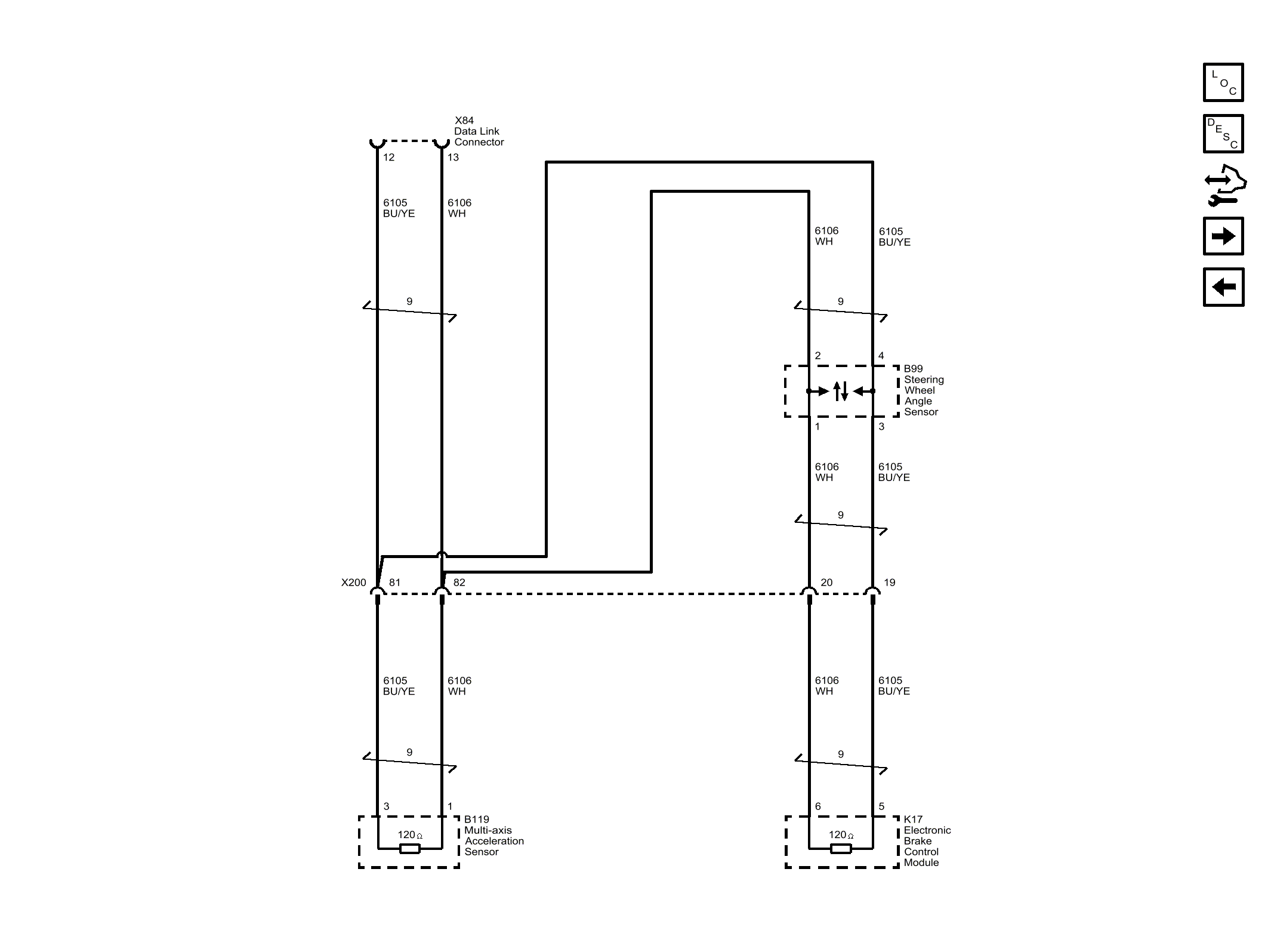

Home >> Chevrolet >> 2016 >> Cruze Limited LT, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System (VIN P) >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Chassis Expansion Bus
