Section 17 (Shift Lock Control System (VIN P))
>>
Schematic Wiring Diagrams
>>
Shift Lock Control Wiring Schematics
>>
MH8
Shift Lock Control Wiring Schematics: MH8
WARNING:
This page is about a different variant/trim than selected.

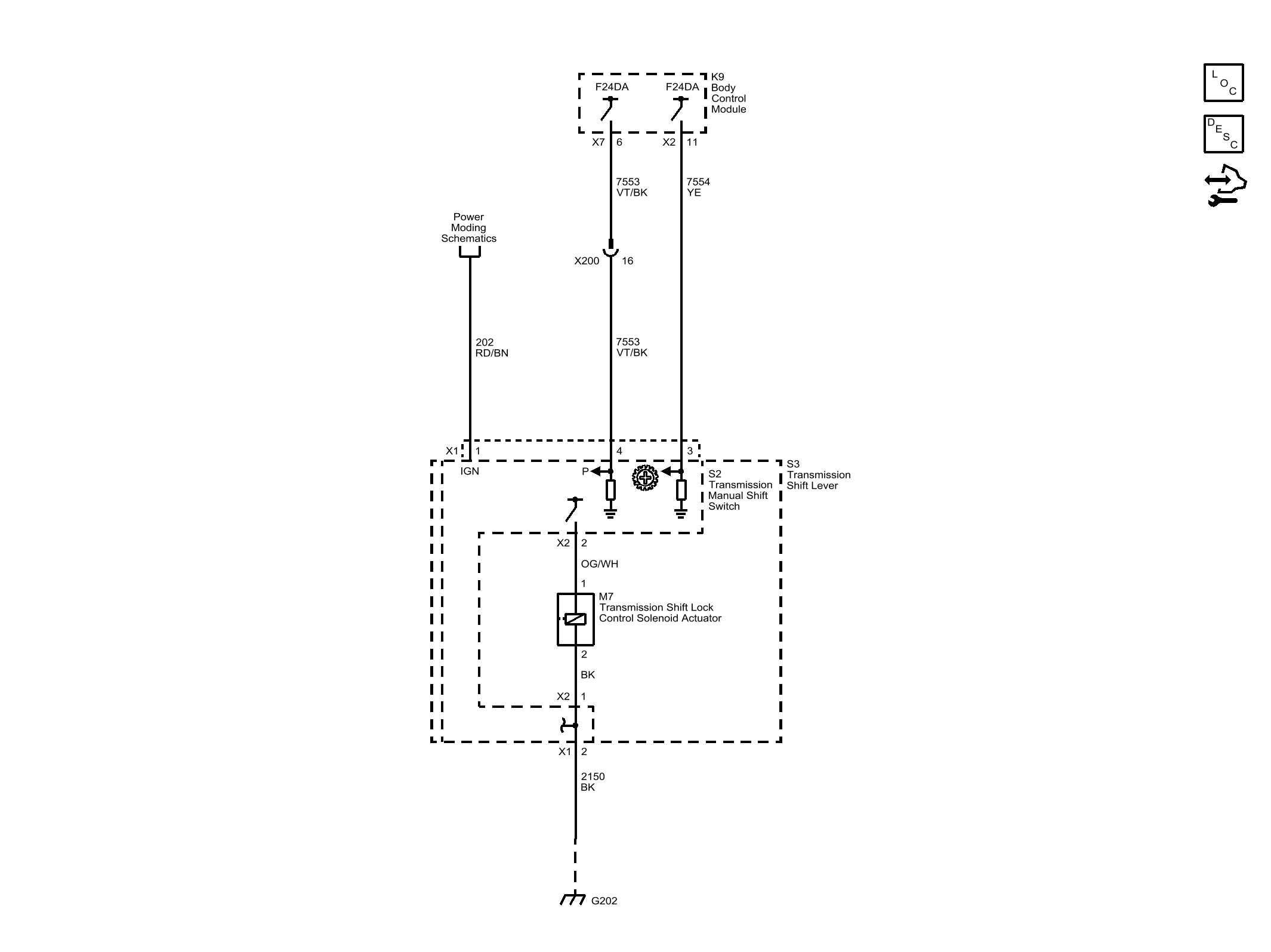

Fig 1: MH8
Courtesy of GENERAL MOTORS COMPANY
