Radiator Lower Bracket Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

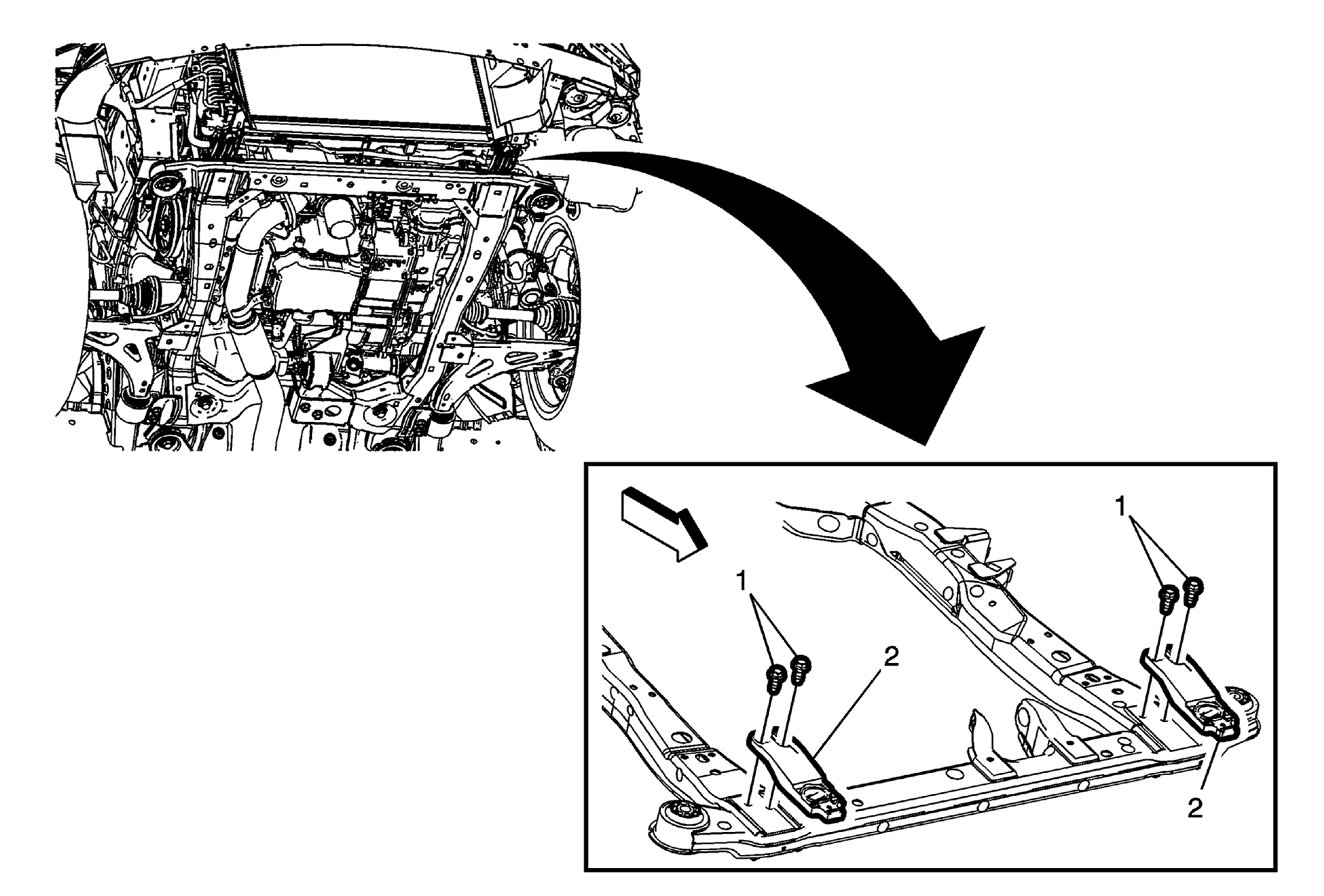

Fig 1: Radiator Lower Brackets & Fasteners (LKW, LUK)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the radiator air side baffle and deflector retainers from the radiator lower bracket. Remove the front bumper lower impact bar brackets from the radiator lower bracket. Refer to Front Bumper Lower Impact Bar Bracket Replacement . Support the radiator assembly.
1	Radiator Lower Bracket Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Radiator Lower Bracket (Qty: 2)

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the radiator air side baffle and deflector retainers from the radiator lower bracket.
Remove the front bumper lower impact bar brackets from the radiator lower bracket. Refer to Front Bumper Lower Impact Bar Bracket Replacement .
Support the radiator assembly.

Radiator Lower Bracket Fastener (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Radiator Lower Bracket (Qty: 2)
