Mode Valve Lever Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

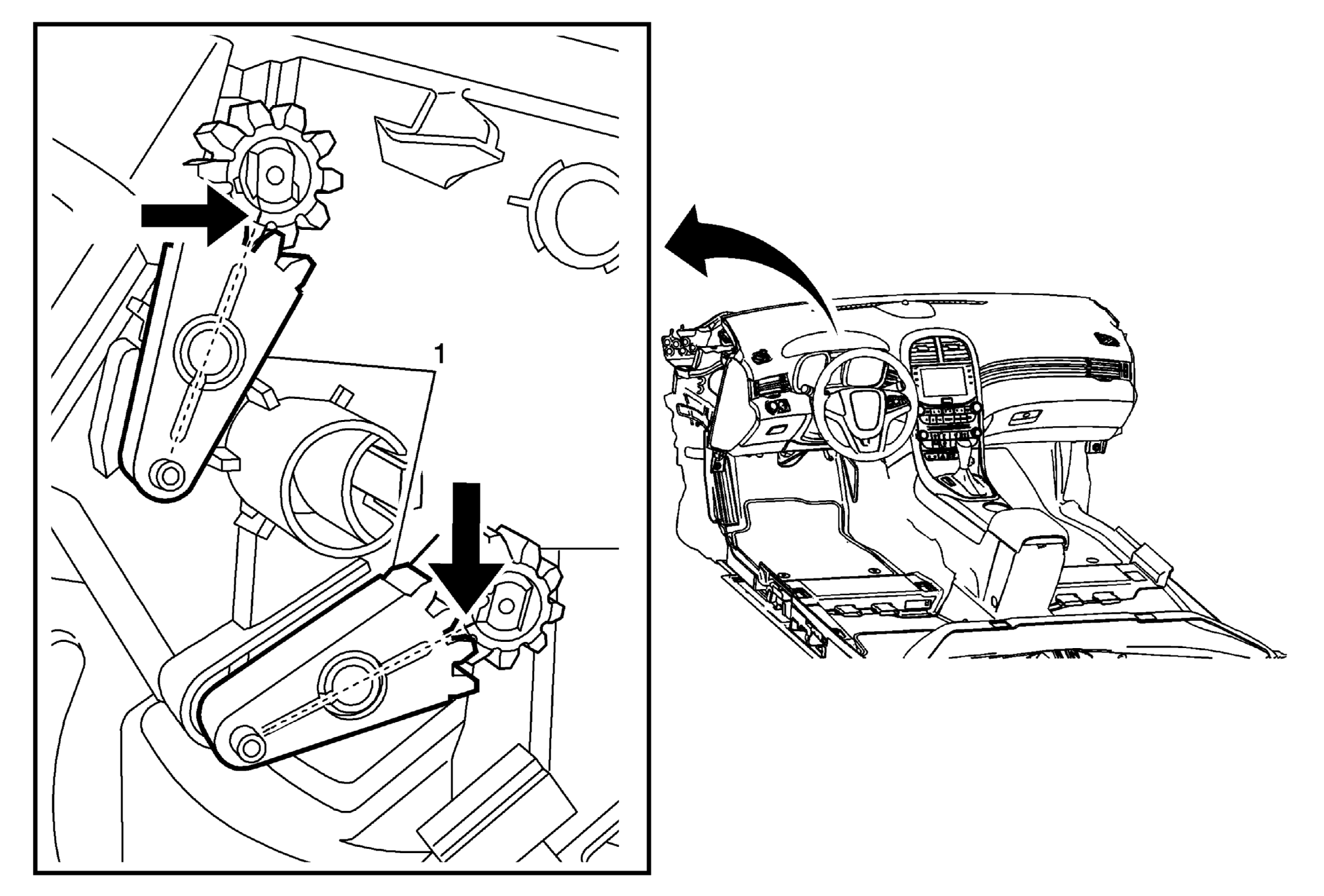

Fig 1: Mode Valve Lever

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Mode Control Cam Replacement .
1	Mode Valve Lever Procedure Move the valve to the middle position and mark the position of the mode valve lever notch to the mode valve gear. Remove the mode valve lever. Align the mode control cam and mode valve levers. Refer to Mode Control Cam Alignment

Callout

Component Name

Preliminary Procedure
Mode Control Cam Replacement .

Mode Valve Lever

Procedure

Move the valve to the middle position and mark the position of the mode valve lever notch to the mode valve gear.
Remove the mode valve lever.
Align the mode control cam and mode valve levers. Refer to Mode Control Cam Alignment
