Mode Valve Gear Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

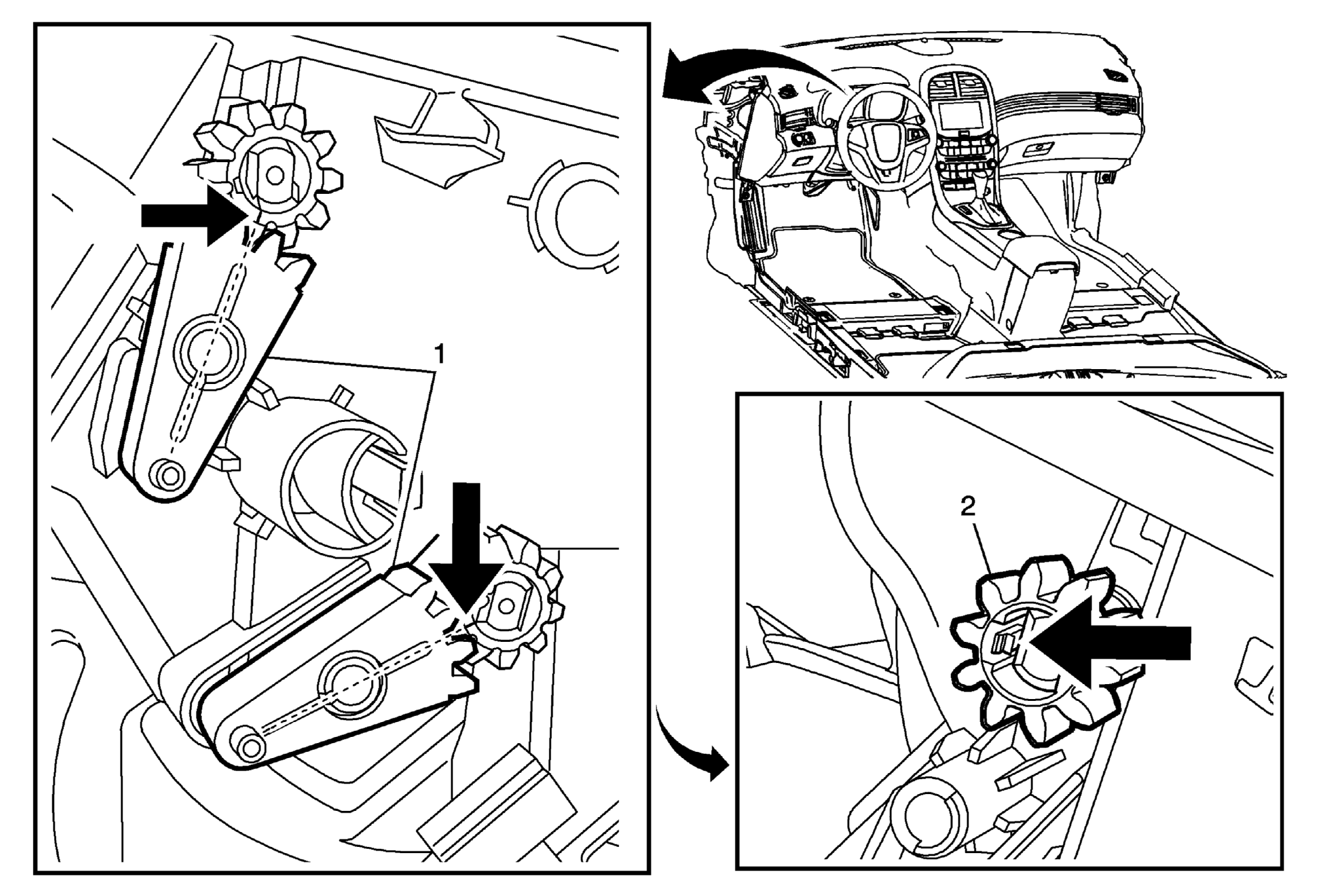

Fig 1: Mode Valve Gear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the mode control cam Refer to Mode Control Cam Replacement .
1	Mode Valve Lever Procedure Move the valve to the middle position and mark the position of the mode valve lever notch to the mode valve gear. Remove the mode valve lever.
2	Mode Valve Gear Procedure Release and remove the mode valve gear. When replacing the valve gear, transfer the mark to the new part. The mode valve gear can only be fitted in one position. Use the indentation for the correct positioning of the lever arms.

Callout

Component Name

Preliminary Procedure
Remove the mode control cam Refer to Mode Control Cam Replacement .

Mode Valve Lever

Procedure

Move the valve to the middle position and mark the position of the mode valve lever notch to the mode valve gear.
Remove the mode valve lever.

Mode Valve Gear
Procedure
Release and remove the mode valve gear.

When replacing the valve gear, transfer the mark to the new part.
The mode valve gear can only be fitted in one position.
Use the indentation for the correct positioning of the lever arms.
