Mode Control Cam Actuator Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

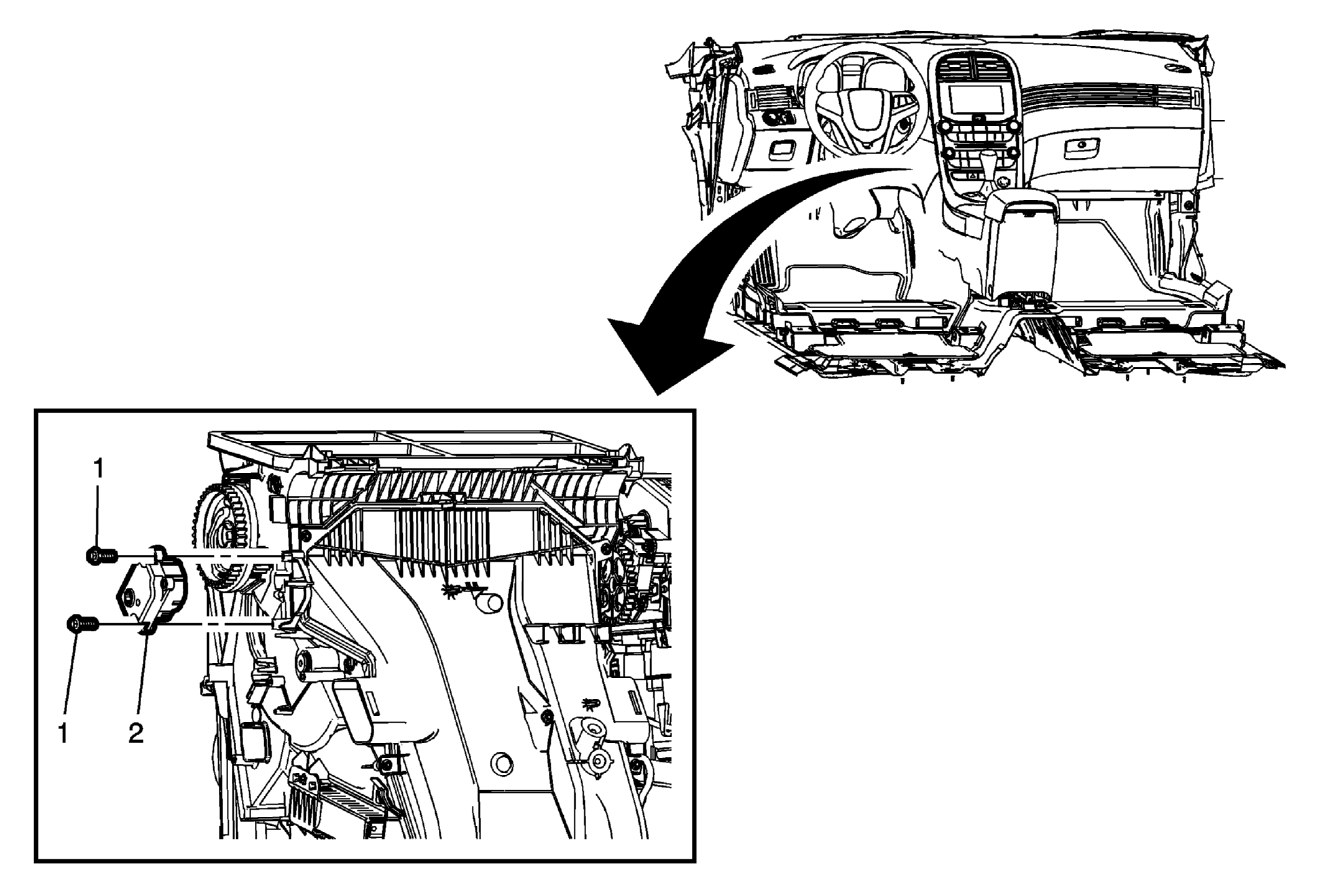

Fig 1: Mode Control Cam Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the floor air outlet duct - left side. Refer to Floor Air Outlet Duct Replacement - Left Side .
1	Mode Actuator Screw (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Mode Actuator Procedure Disconnect the mode actuator electrical connector. NOTE: Actuator is self-calibrating when connecting the battery.

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the floor air outlet duct - left side. Refer to Floor Air Outlet Duct Replacement - Left Side .

Mode Actuator Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Mode Actuator
Procedure
Disconnect the mode actuator electrical connector.

NOTE: Actuator is self-calibrating when connecting the battery.
