Heater and Blower and Air Conditioning Control Module Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

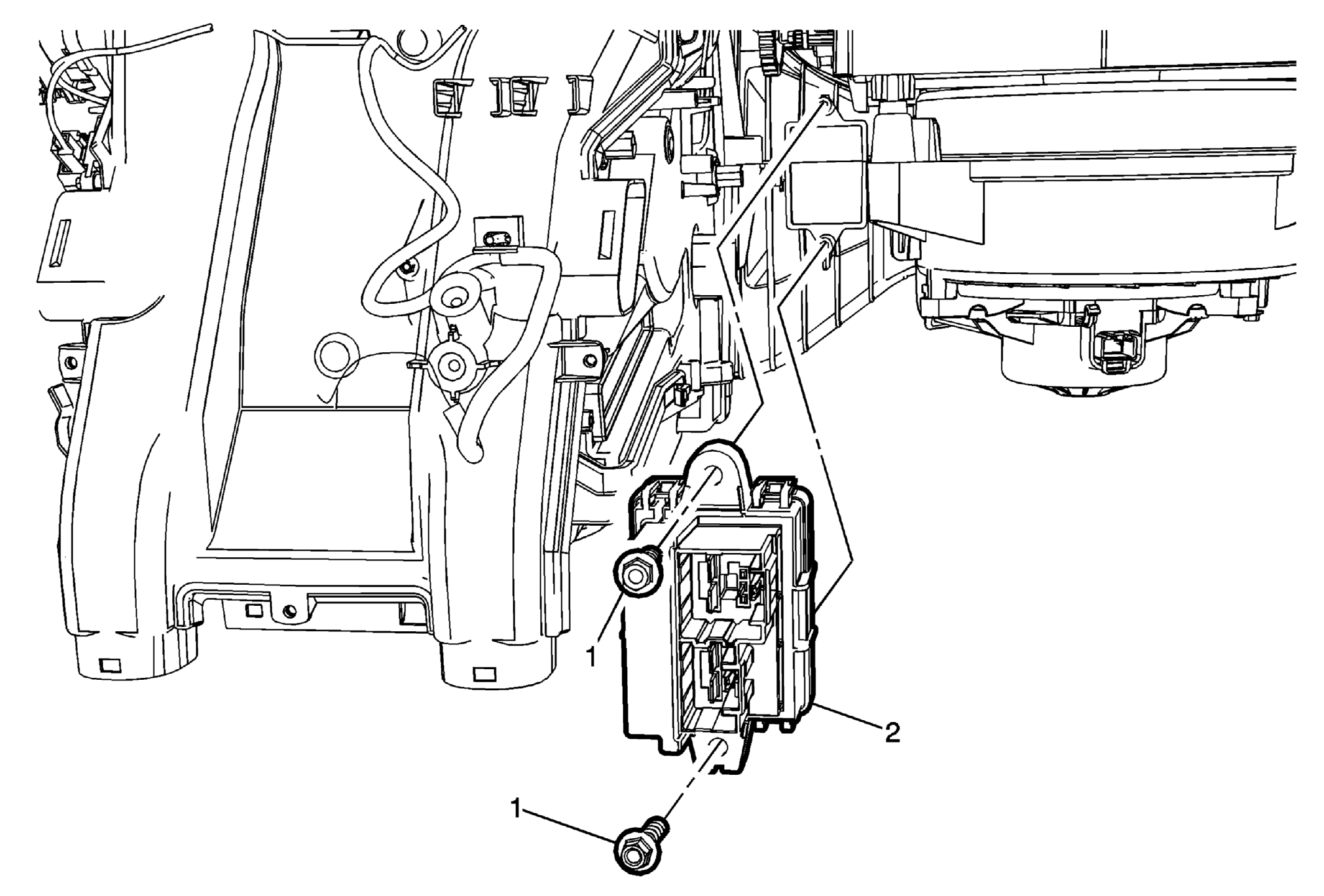

Fig 1: Heater and Blower and Air Conditioning Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side . Disconnect the heater and blower and air conditioning control module electrical connectors.
1	Heater and Blower and Air Conditioning Control Module Fastener (Qty: 2)
2	Heater and Blower and Air Conditioning Control Module

Callout

Component Name

Preliminary Procedure

Remove the floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side .
Disconnect the heater and blower and air conditioning control module electrical connectors.

Heater and Blower and Air Conditioning Control Module Fastener (Qty: 2)

Heater and Blower and Air Conditioning Control Module
