Tail Lamp Replacement - Inboard

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

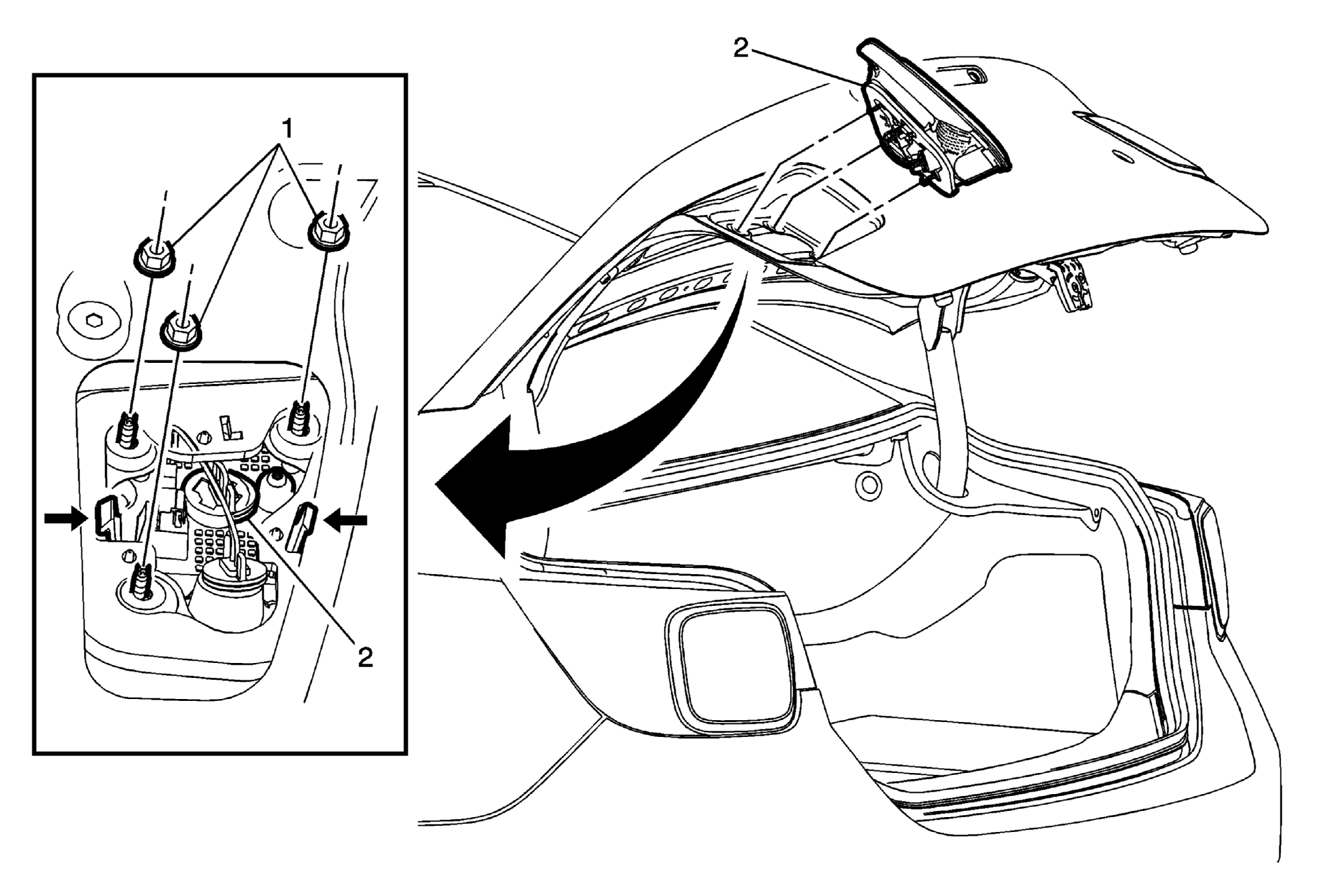

Fig 1: Tail Lamp - Inboard

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner trim panel. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Tail Lamp Inboard Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (17 lb in)
2	Tail Lamp Inboard Procedure Release the retaining tabs to remove the tail lamp. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid inner trim panel. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Tail Lamp Inboard Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten
3 N.m (17 lb in)

Tail Lamp Inboard

Procedure

Release the retaining tabs to remove the tail lamp.
Disconnect the electrical connector.
