Rear Compartment Courtesy Lamp Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

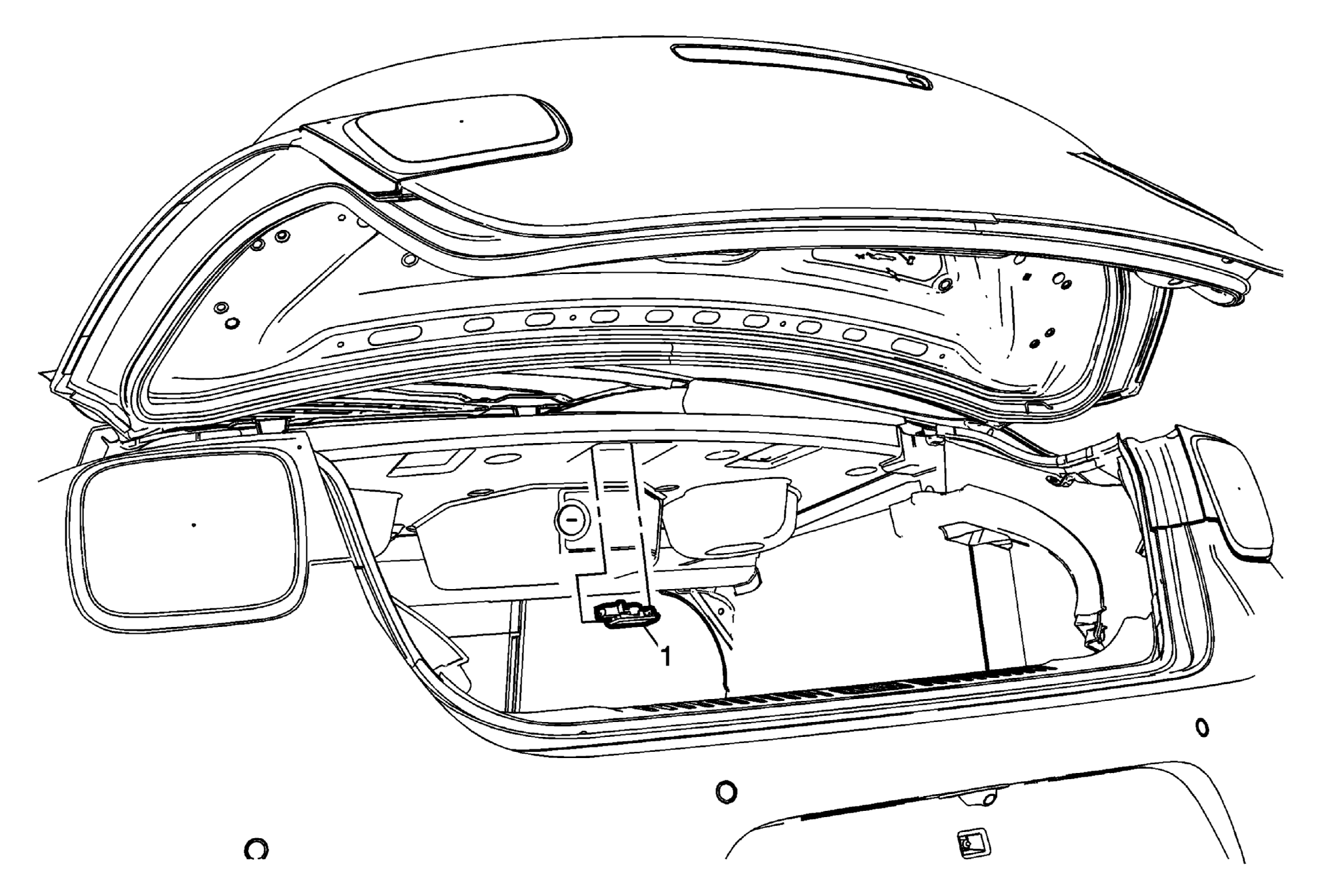

| Callout |
Component Name |
| 1 |
Rear Compartment Courtesy Lamp Procedure
- Open the rear compartment.
- Remove the rear compartment lamp using a small fat bladed tool to release the retaining tabs.
- Disconnect the electrical connector.
|
