Instrument Panel Compartment Lamp Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

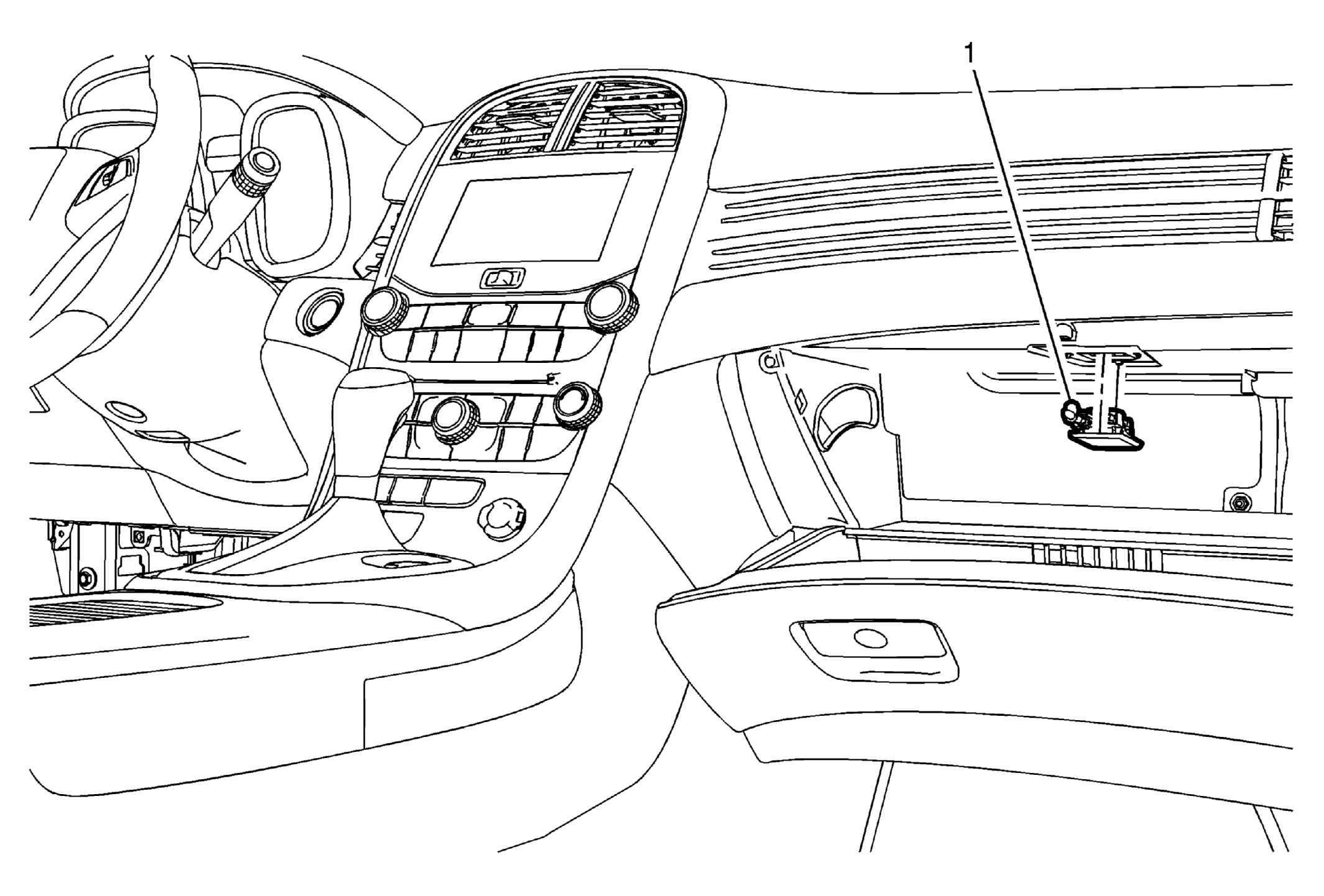

| Callout |
Component Name |
| 1 |
Instrument Panel Compartment Lamp Procedure
- Squeeze the sides of the instrument panel compartment door assembly allowing the compartment to open past the stops.
- Disconnect the electrical connection.
- Release the lamp from the instrument panel compartment door.
|
