Instrument Panel Compartment Lamp Bulb Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

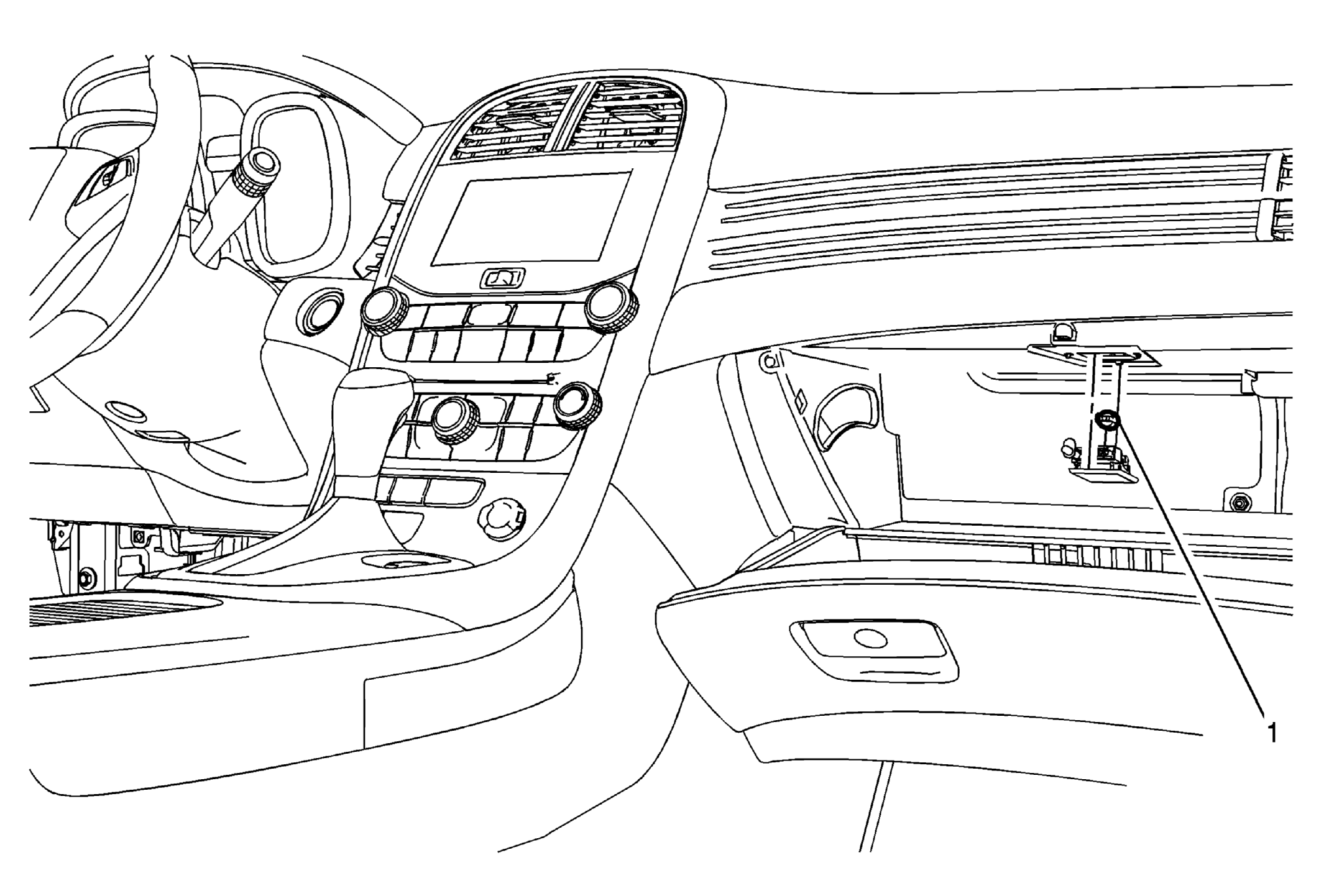

| Callout |
Component Name |
| 1 |
Instrument Panel Compartment Lamp Bulb Procedure
- Squeeze the sides of the instrument panel compartment door assembly allowing the compartment to open past the stops.
- Remove the bulb from the lamp.
|
