High Mount Stop Lamp Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

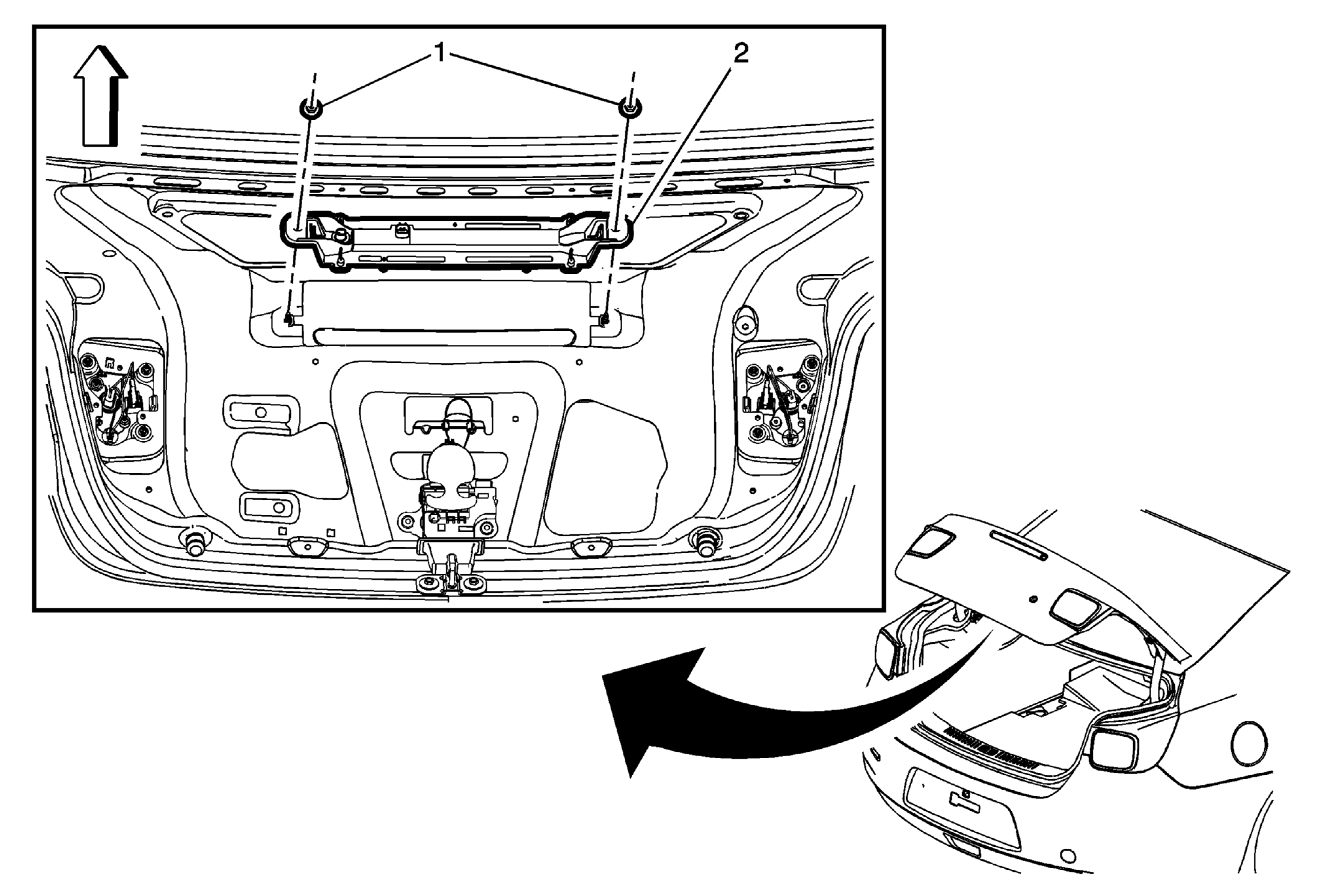

Fig 1: High Mount Stop Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	High Mount Stop Lamp Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4.7 N.m (42 lb in)
2	High Mount Stop Lamp Assembly Procedure Disconnect the electrical connector from the lamp assembly. Remove the lamp assembly.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

High Mount Stop Lamp Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
4.7 N.m (42 lb in)

High Mount Stop Lamp Assembly

Procedure

Disconnect the electrical connector from the lamp assembly.
Remove the lamp assembly.
