Headlamp Bulb Replacement (Base)

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

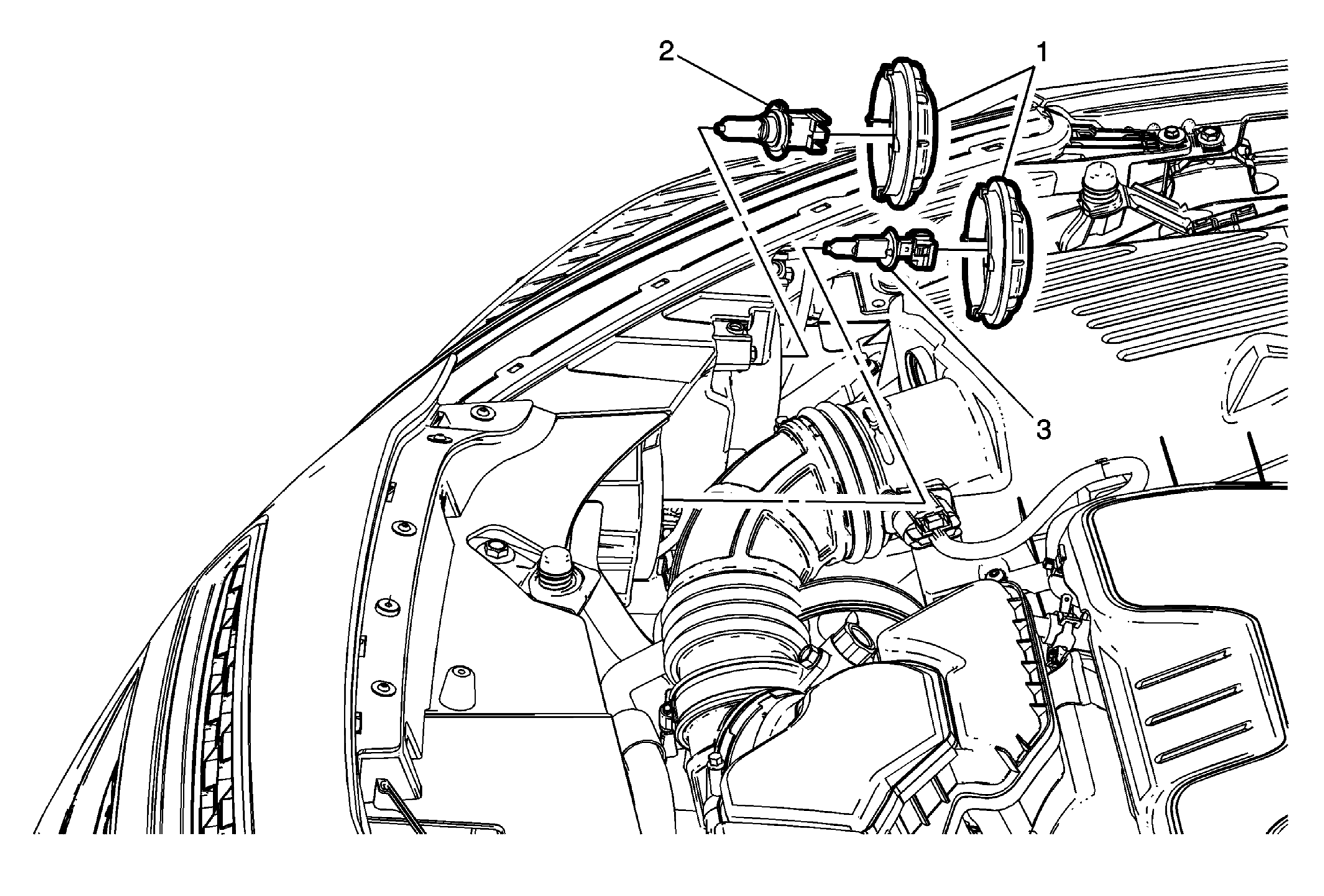

Fig 1: Headlamp Bulb (Base)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield washer solver container filler tube if removing the left side bulb. Refer to Windshield Washer Solvent Container Filler Tube Replacement .
1	Accessory Bulb Cover (Qty: 2)
2	Headlamp Bulb - Low Beam WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector from the bulb socket. Rotate the bulb socket and remove from the headlamp housing.
3	Headlamp Bulb - High Beam Procedure Disconnect the electrical connector from the bulb socket. Rotate the bulb socket a quarter turn and remove from the headlamp housing.
