Front Side Door Warning Lamp Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

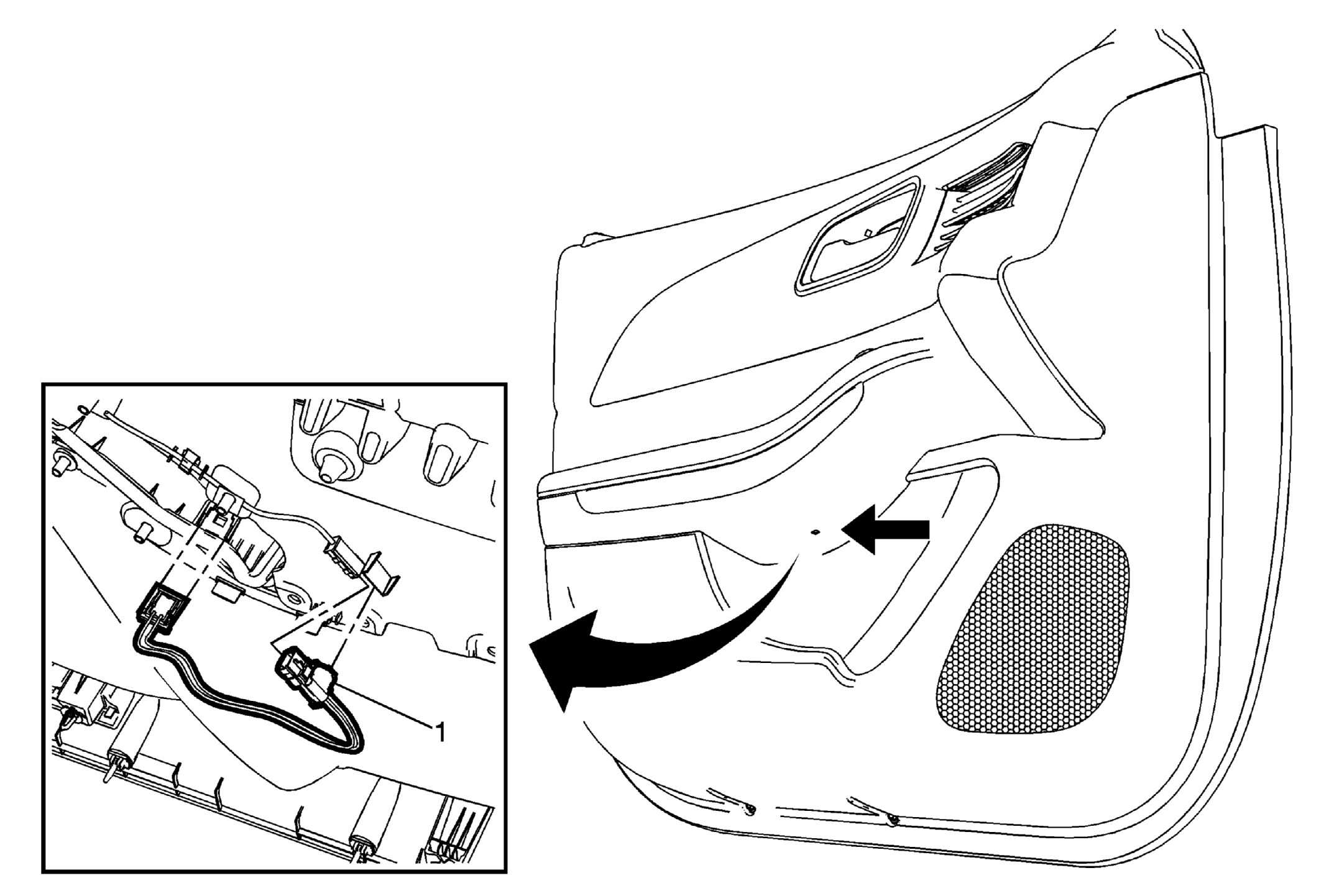

Fig 1: Front Side Door Warning Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
1	Front Side Door Warning Lamp Procedure Disconnect the lamp from the door trim panel. Unclip the rear of the lamp. Slide out the lamp rearward. Disconnect electrical connection.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .

Front Side Door Warning Lamp

Procedure

Disconnect the lamp from the door trim panel.
Unclip the rear of the lamp.
Slide out the lamp rearward.
Disconnect electrical connection.
