Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

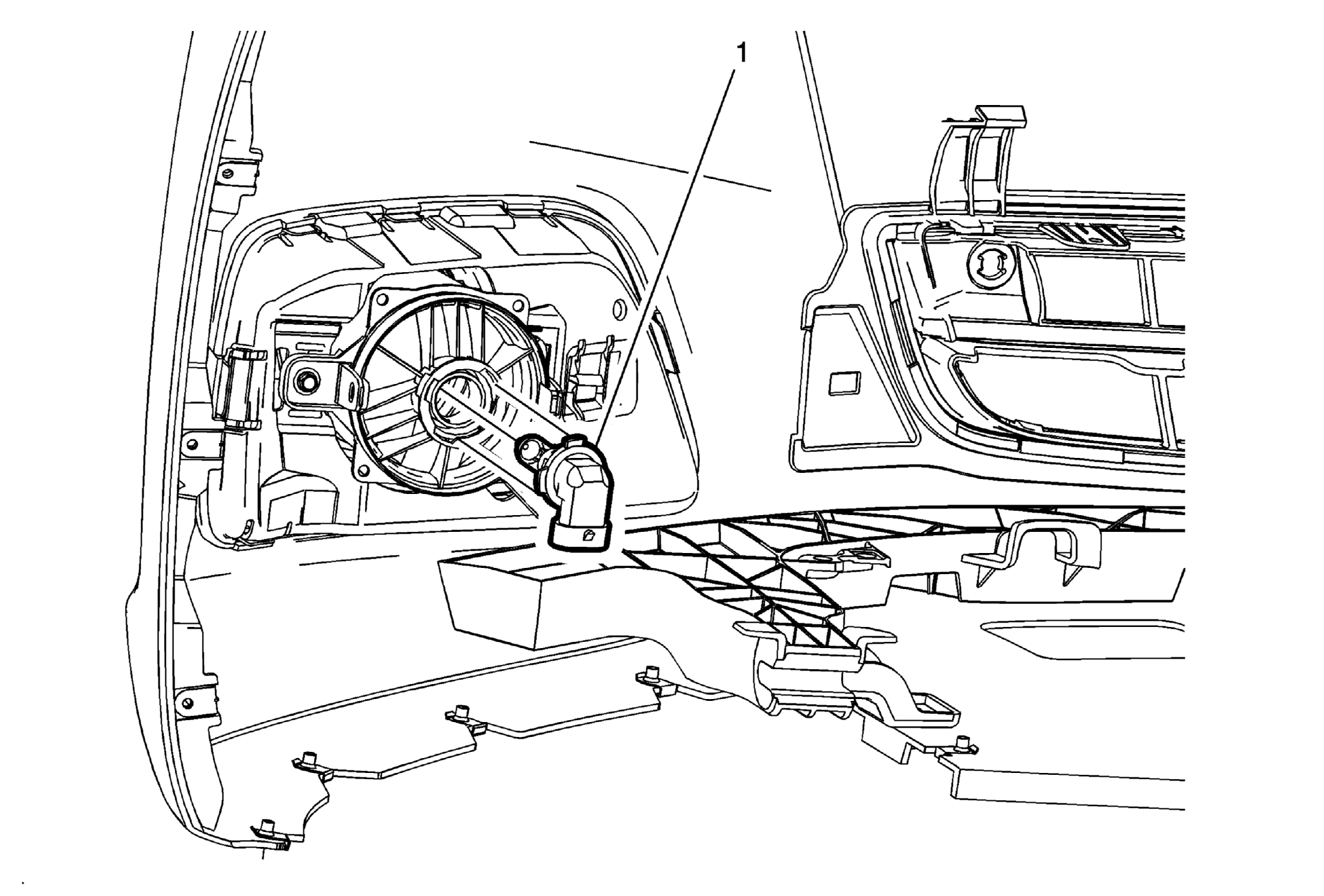

Fig 1: Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning . Preliminary Procedure Remove the front wheelhouse front liner to access the bulb. Refer to Front Wheelhouse Front Liner Replacement (Left Side) and Front Wheelhouse Front Liner Replacement (Right Side) .
1	Front Fog Lamp Bulb Procedure Disconnect the forward lamp electrical harness connector from the fog lamp bulb socket. Twist the bulb socket counterclockwise to remove from the lamp housing.

Callout

Component Name

WARNING: Refer to Halogen Bulb Warning .

Preliminary Procedure Remove the front wheelhouse front liner to access the bulb. Refer to Front Wheelhouse Front Liner Replacement (Left Side) and Front Wheelhouse Front Liner Replacement (Right Side) .

Front Fog Lamp Bulb

Procedure

Disconnect the forward lamp electrical harness connector from the fog lamp bulb socket.
Twist the bulb socket counterclockwise to remove from the lamp housing.
