Aiming Procedure

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

Park the vehicle 7.6 m (25 ft) away from the target screen.

Fig 1: Locating Alignment Points On Target Screen
Courtesy of GENERAL MOTORS COMPANY
Measure from the center of the fog lamp to the ground line. Using this measurement, mark the horizontal centerline (2) of the fog lamp on the target screen directly in front of the vehicle.
Turn ON the fog lamps. The top of the fog lamp beam image (4) on the target screen should be 102 mm (4 in) below the center of the fog lamp lens height.

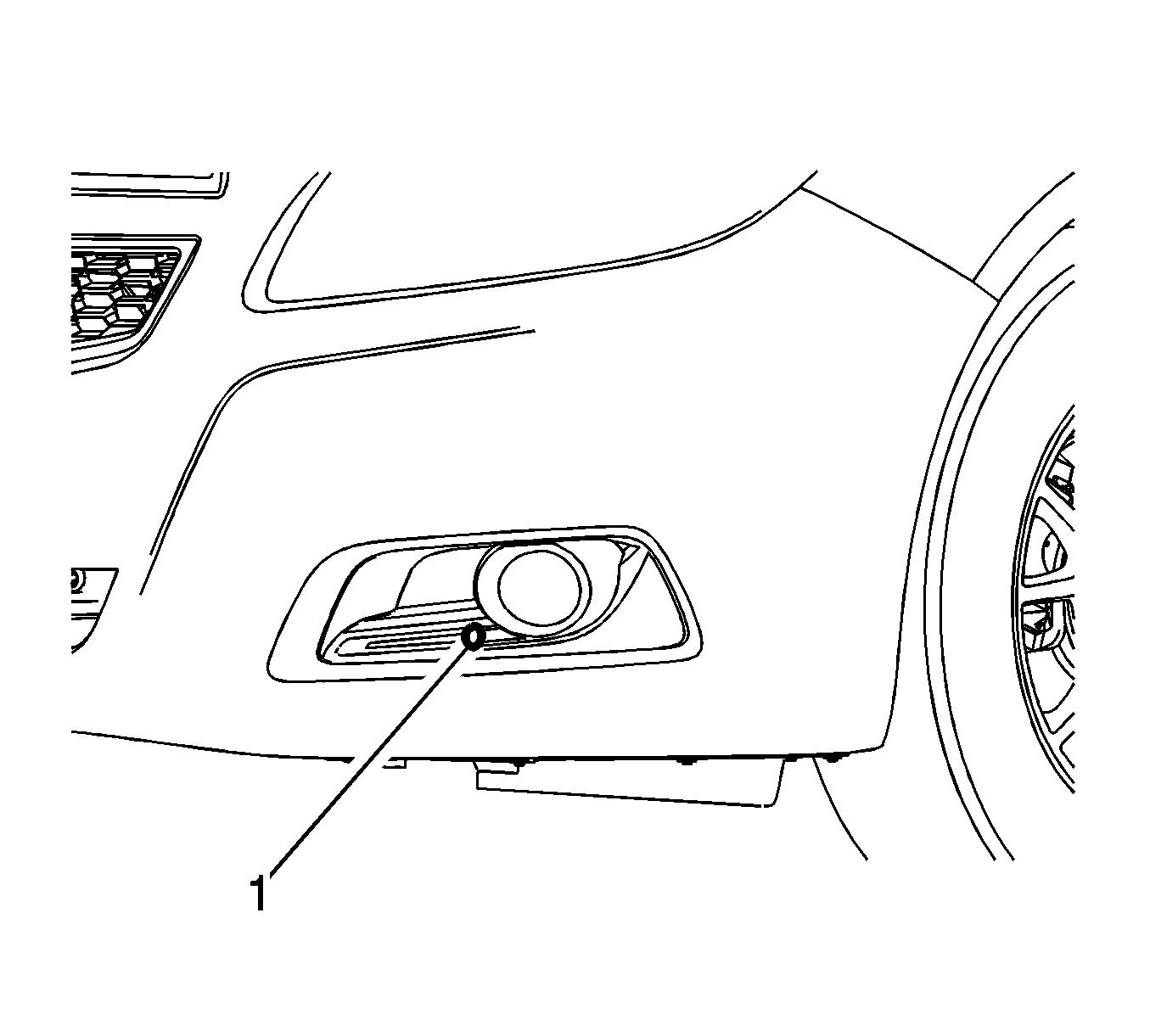

Adjust the fog lamp as required using the adjusting screw above the projector lens on the outside of the front bumper fascia.

Fig 2: Adjusting Fog Lamp As Required Using Adjusting Screw
Courtesy of GENERAL MOTORS COMPANY
Turn OFF the fog lamps.
