Daytime Running Lamp Bulb Replacement (Base)
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

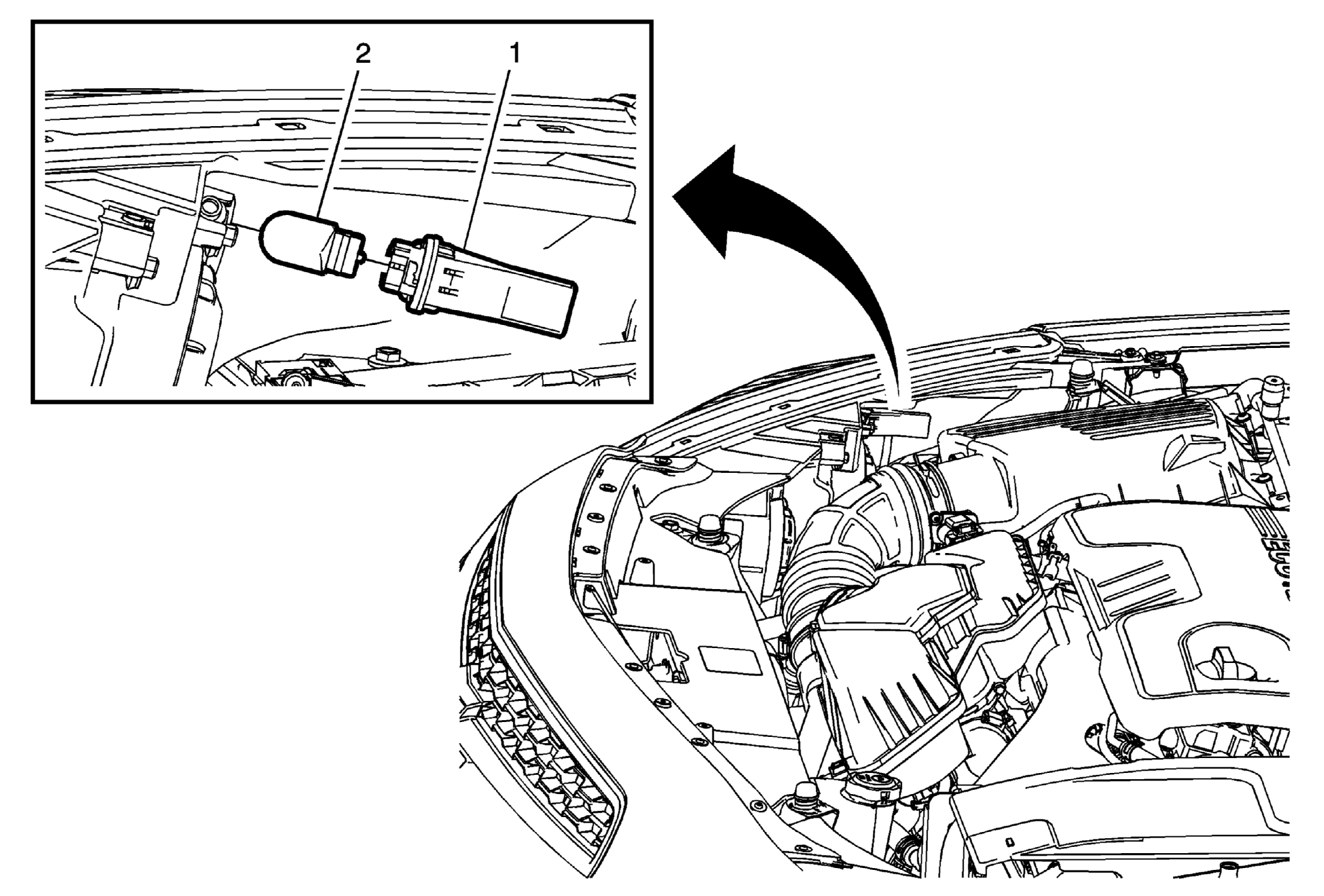

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the windshield washer solver container filler tube if removing the left side bulb. Refer to Windshield Washer Solvent Container Filler Tube Replacement . |
|
| 1 | Daytime Running Lamp Bulb Socket
WARNING:
Refer to Halogen Bulb Warning
. Procedure Rotate the daytime running lamp bulb socket a quarter turn counterclockwise and remove from the headlamp. |
| 2 | Daytime Running Lamp Bulb Procedure Pull the daytime running lamp bulb from the socket. |
