Backup Lamp Bulb Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

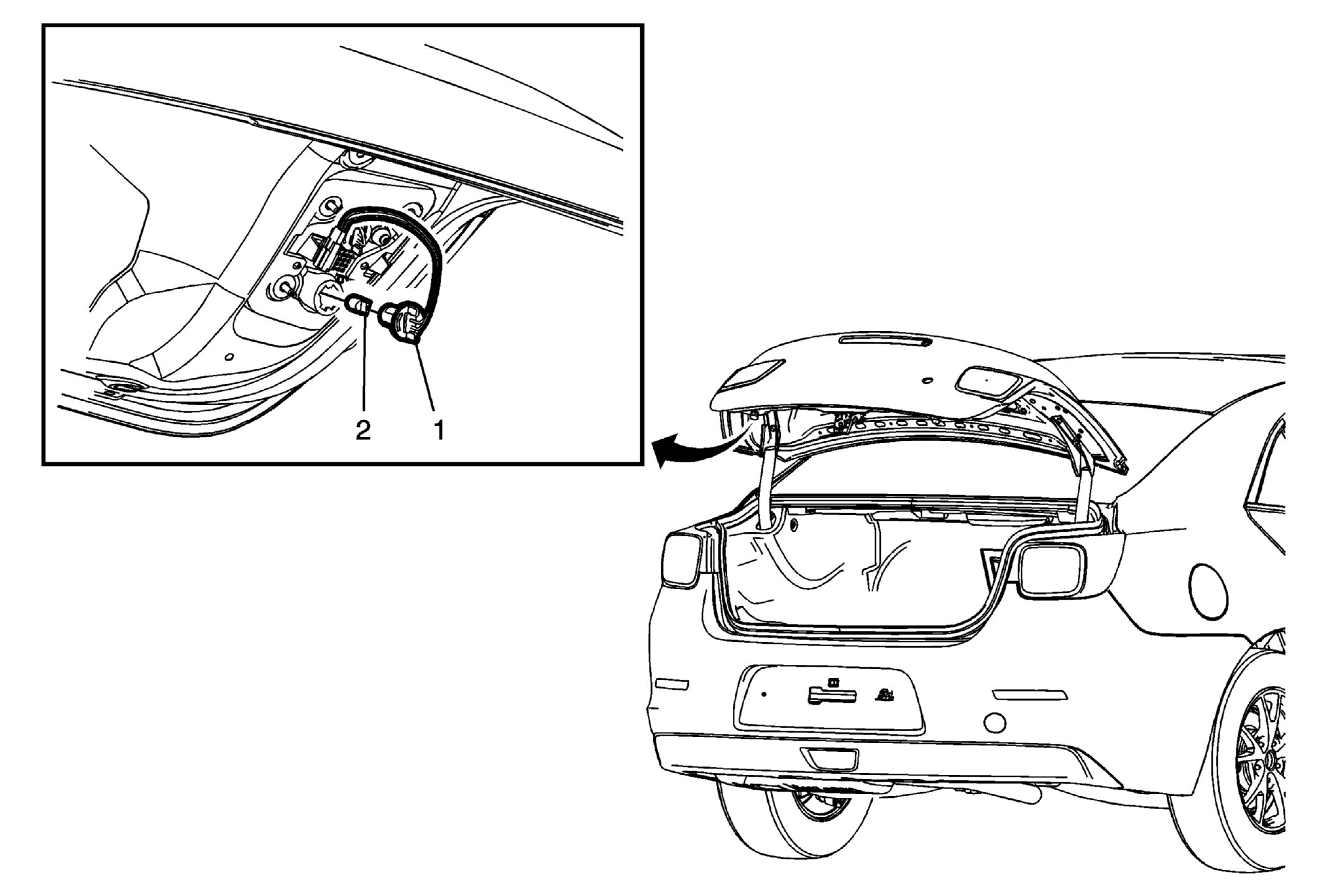

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement . |
|
| 1 | Backup Lamp Bulb Socket Procedure Rotate the lamp socket counterclockwise and remove the socket from the lamp housing. |
| 2 | Backup Lamp Bulb Procedure Pull the bulb straight out to remove. |
