Installation Procedure
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

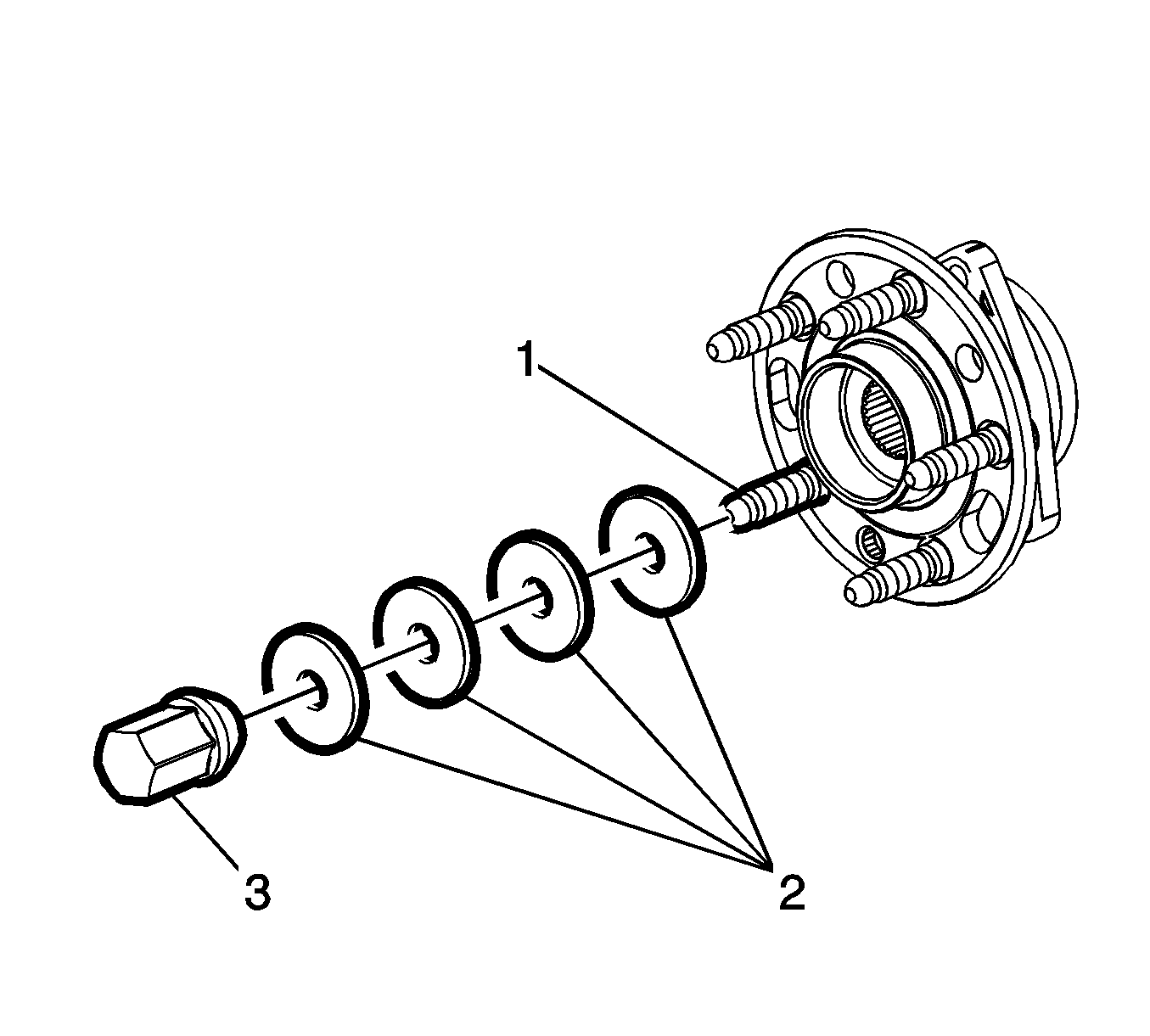

- Position the NEW wheel stud (1) in the flange of the hub assembly.
- Install flat washers (2) and an OLD wheel nut (3) on the wheel stud.
- Use a suitable tool to prevent the flange on the hub assembly from rotating.
- Tighten the wheel nut until the wheel stud is firmly seated.
- Remove the wheel nut and flat washers.
