Steering Knuckle Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

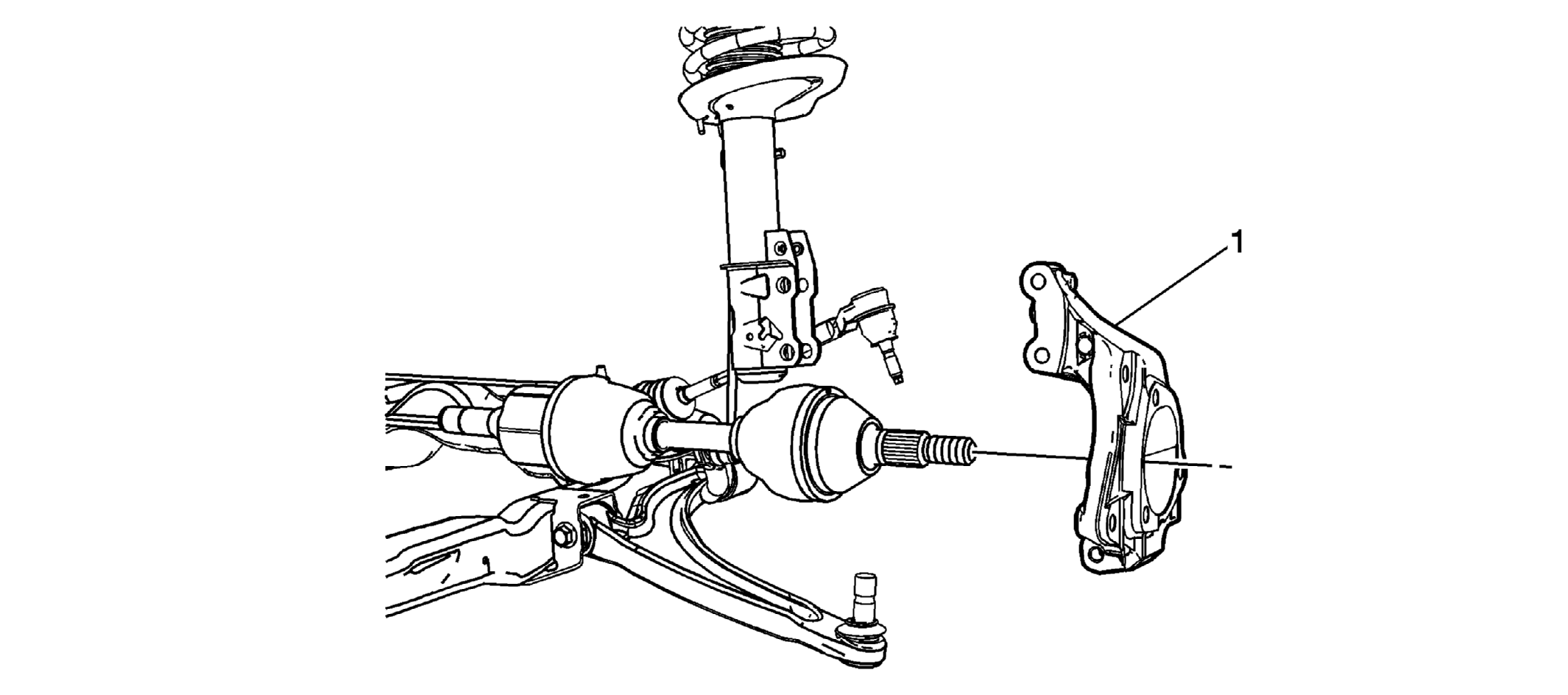

Fig 1: View Of Steering Knuckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: Do not pry in such a way that the ball joint seal is contacted. Damage to the seal may result. Preliminary Procedures Front Wheel Bearing and Hub Replacement Steering Linkage Outer Tie Rod @ Steering Knuckle» Separate - Steering Linkage Outer Tie Rod Replacement Front Lower Control Arm @ Steering Knuckle» Separate - Lower Control Arm Replacement Strut Assembly @ Steering Knuckle» Separate - Strut Assembly Removal and Installation
1	Steering Knuckle Procedure Measure and adjust the wheel alignment. Refer to Wheel Alignment Measurement

Callout

Component Name

CAUTION: Do not pry in such a way that the ball joint seal is contacted. Damage to the seal may result.

Preliminary Procedures

Front Wheel Bearing and Hub Replacement
Steering Linkage Outer Tie Rod @ Steering Knuckle» Separate - Steering Linkage Outer Tie Rod Replacement
Front Lower Control Arm @ Steering Knuckle» Separate - Lower Control Arm Replacement
Strut Assembly @ Steering Knuckle» Separate - Strut Assembly Removal and Installation

Steering Knuckle
Procedure
Measure and adjust the wheel alignment. Refer to Wheel Alignment Measurement
