Installation Procedure

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

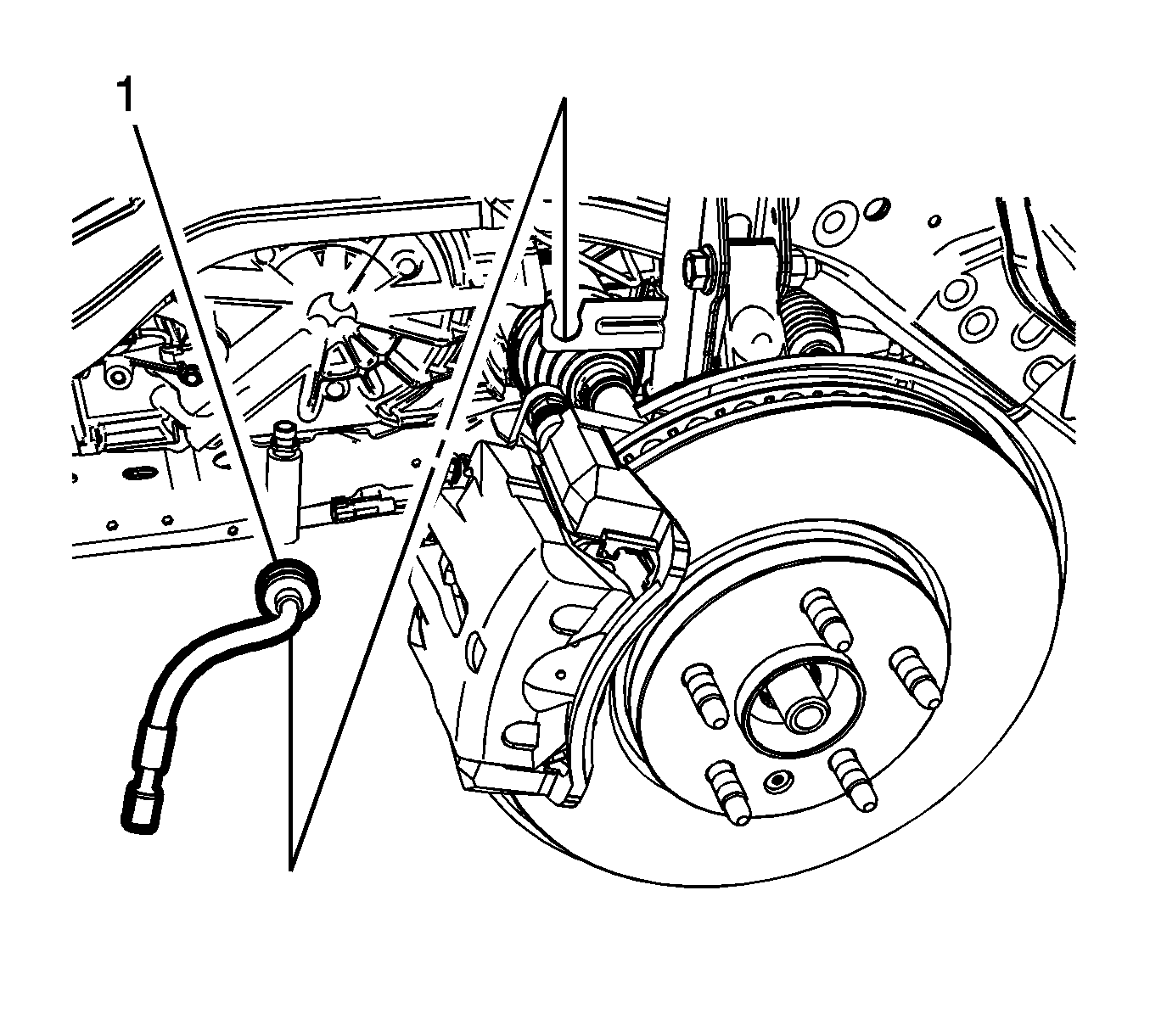

  1. Install the brake hose grommet (1) to the strut bracket.
    Fig 1: Brake Hose Grommet
    GM2557355Courtesy of GENERAL MOTORS COMPANY

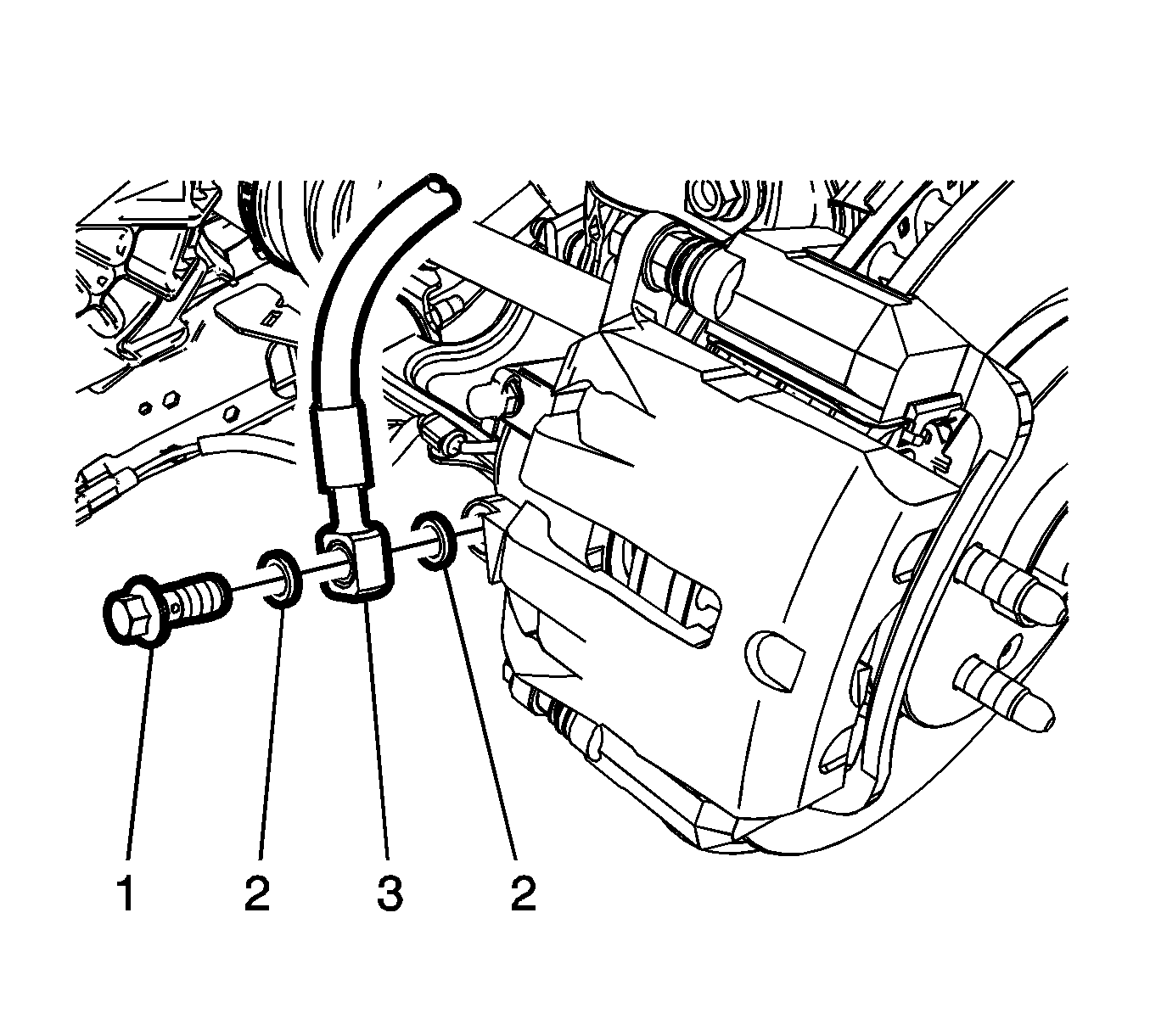

  2. Assemble the brake hose fitting bolt (1). with new brake hose fitting gaskets (2) to the brake hose fitting (3).
    Fig 2: Brake Hose Fitting Bolt
    GM2557357Courtesy of GENERAL MOTORS COMPANY
  3. Install the brake hose assembly to the brake caliper and tighten the brake hose fitting bolt to 40 N.m (30 lb ft).
    CAUTION: Refer to Fastener Caution .

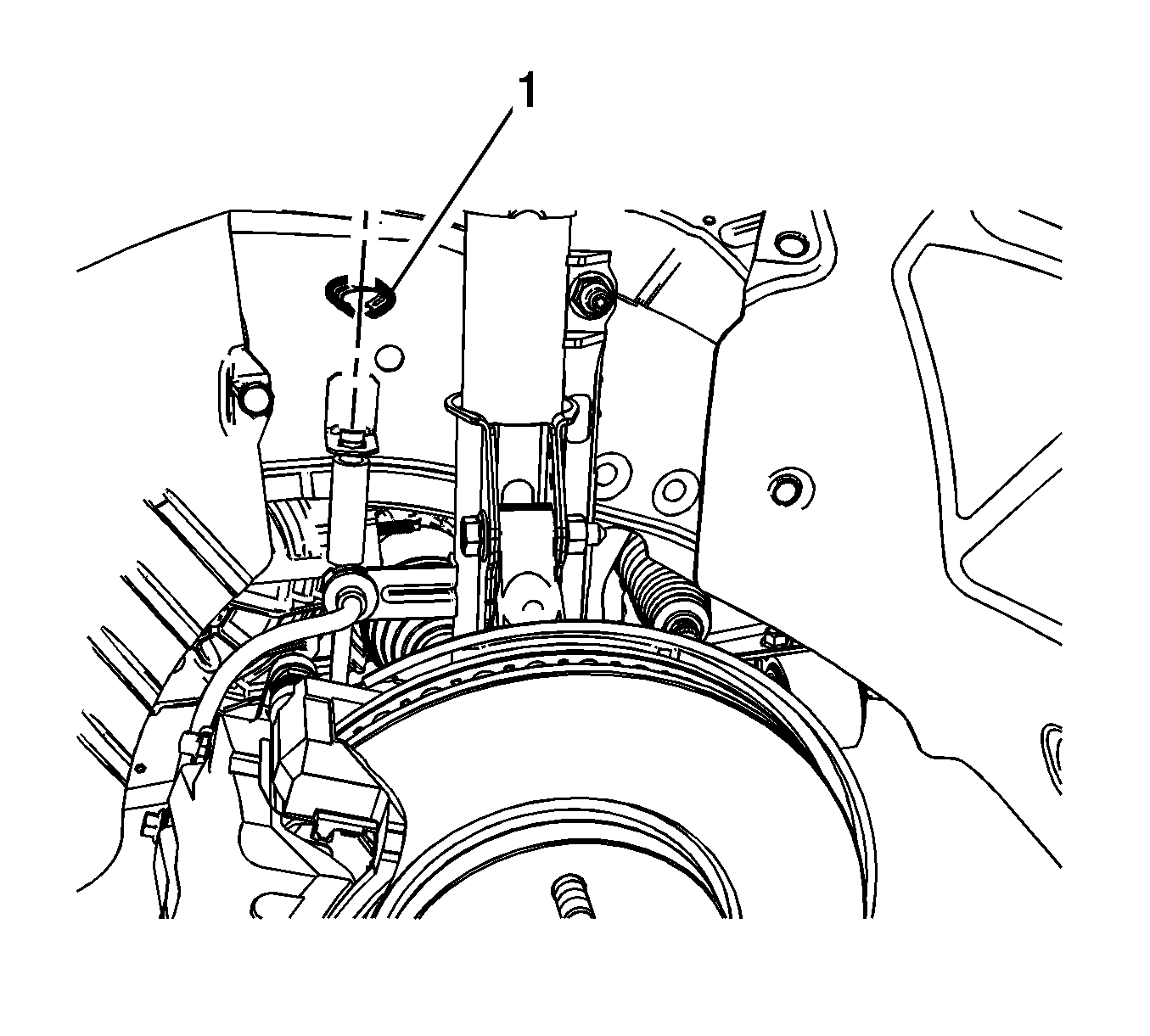

  4. Install the brake hose retaining clip (1).
    Fig 3: Brake Hose Retaining Clip
    GM2557337Courtesy of GENERAL MOTORS COMPANY

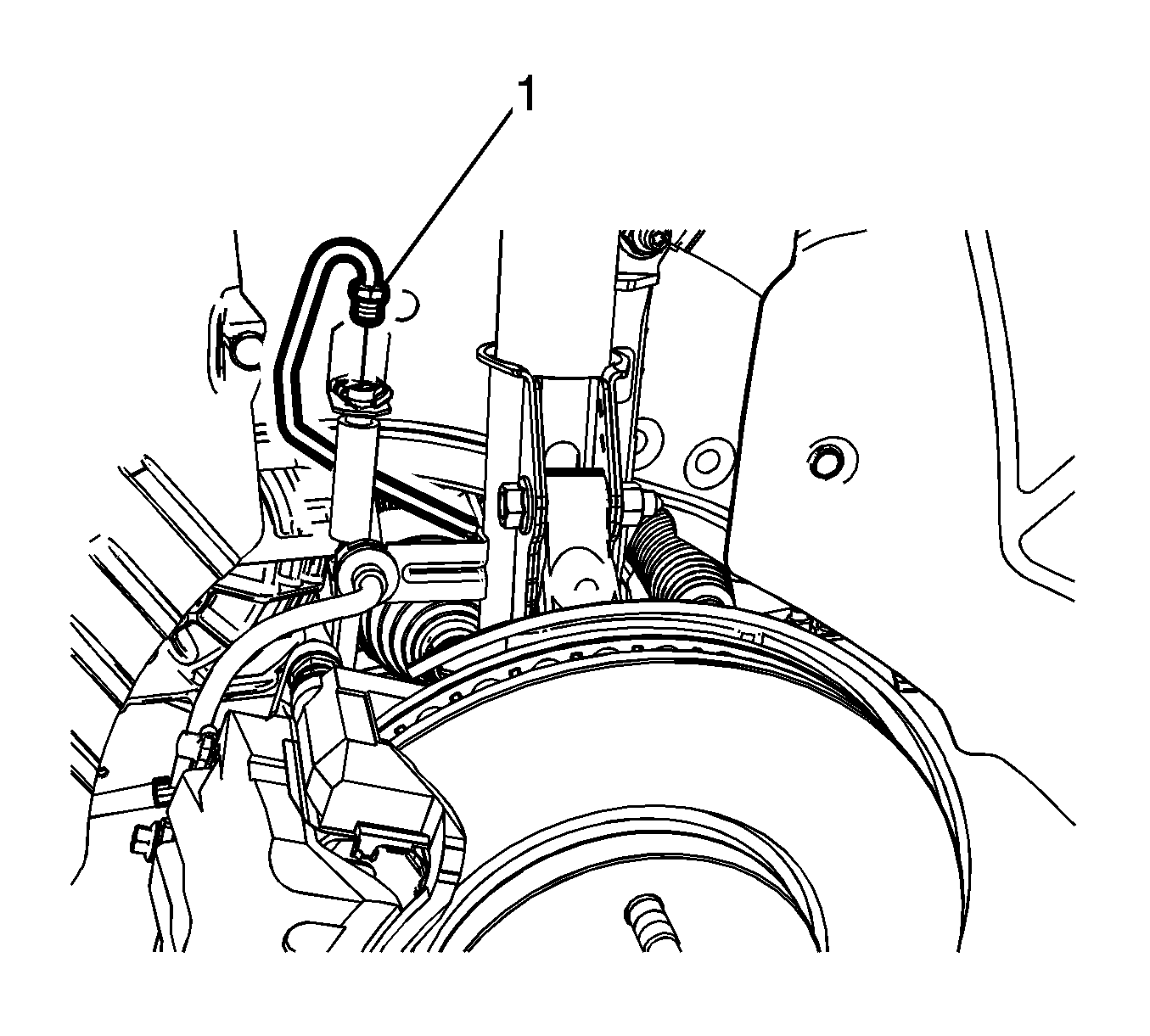

  5. Connect the brake pipe fitting (1) to the brake hose.
    Fig 4: Brake Pipe Fitting
    GM2557336Courtesy of GENERAL MOTORS COMPANY
  6. Tighten the brake pipe fitting to 18 N.m (13 lb ft).
  7. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure)  and Hydraulic Brake System Bleeding (Manual) .
  8. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
